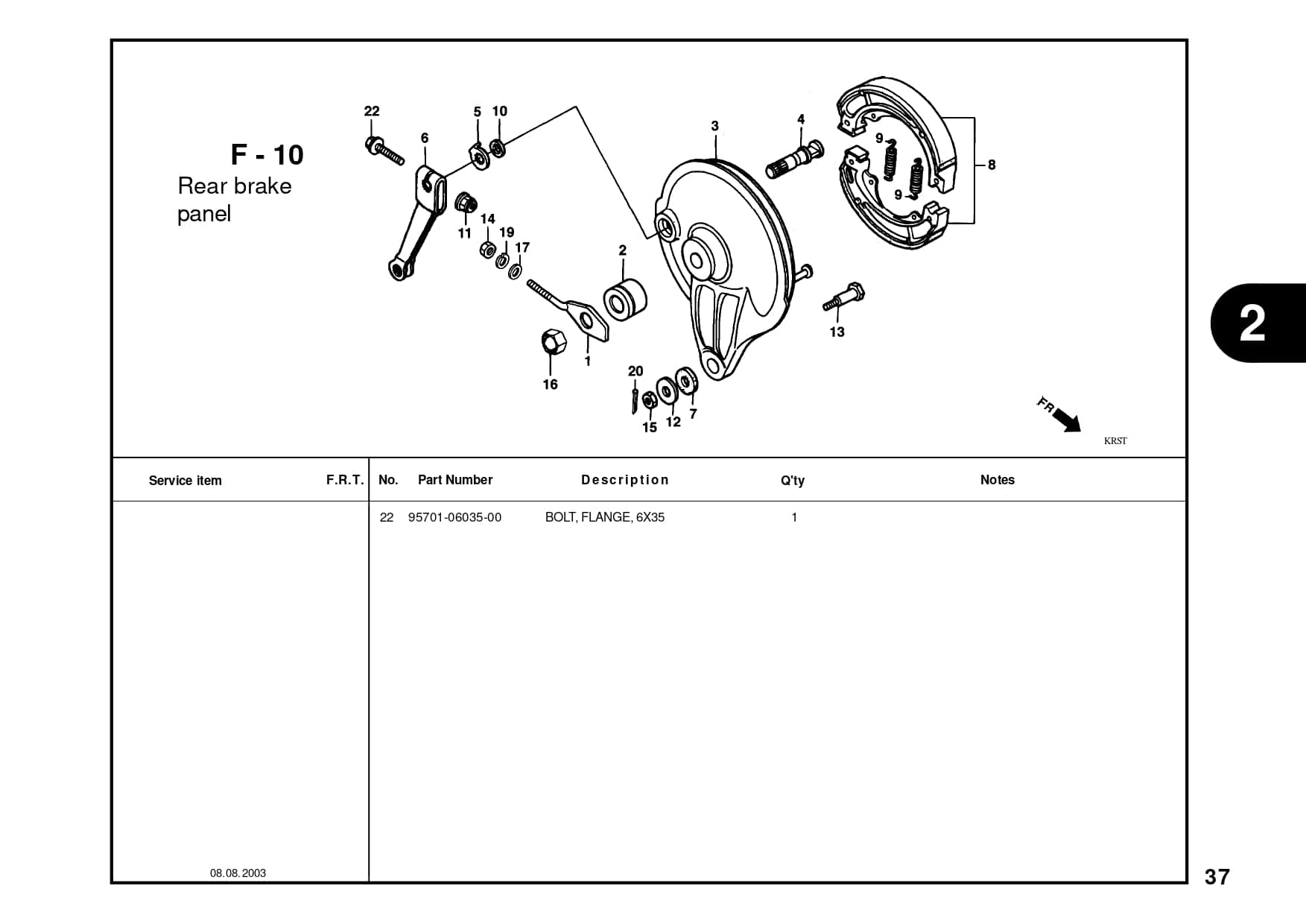

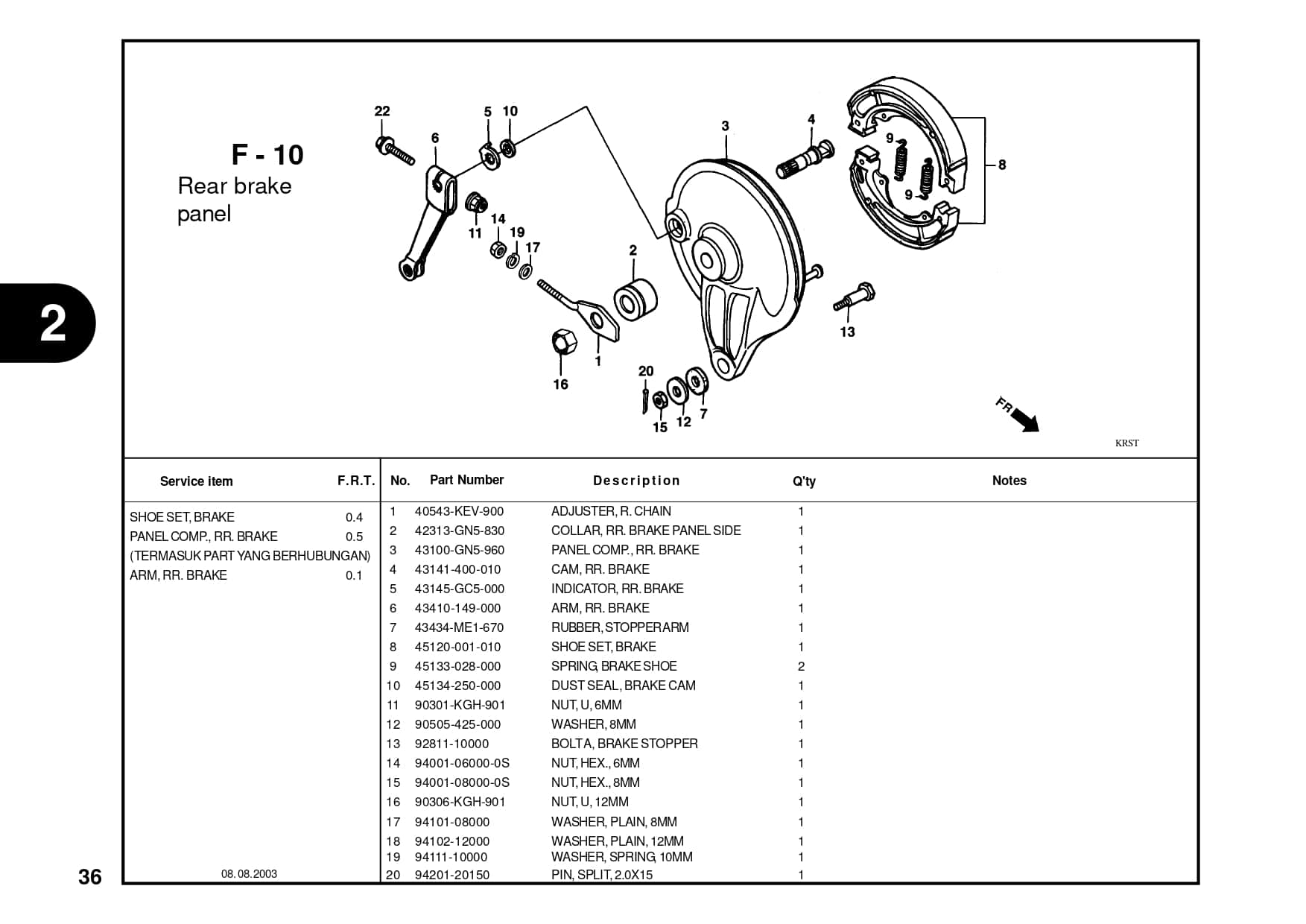

F-10 Rear Brake Panel –

#	Informasi Produk	Visual
1	ADJUSTER R CHAIN Part Number : `40543KEV900`
2	COLLAR RR BRAKE PANEL Part Number : `42313GN5830`
3	PANEL COMP RR BRAKE Part Number : `43100GN5960`
4	CAM,FR BRAKE Part Number : `43141400010`
5	43145GC5000 Part Number : `43145GC5000`
6	ARM RR BRAKE Part Number : `43410149000`
7	RUBBER STOP ARM Part Number : `43434ME1670`
8	SHOE BRAKE SET Part Number : `45120001010`
9	SPRING BRAKE SHOE Part Number : `45133028000`
10	DUST SEAL,BRAKE Part Number : `45134250000`
11	NUT U 6MM Part Number : `90301KGH901`
12	WASHER 8MM Part Number : `90505425000`
13	9281110001 Part Number : `9281110000`
14	NUT HEX 6MM Part Number : `94001060000S`
15	NUT HEX 8MM Part Number : `94001080000S`
16	NUT,U,12MM Part Number : `90306KGH901`
17	WASHER PLAIN 8MM Part Number : `9410108000`
18	WASHER,PLAIN 12MM Part Number : `9410212000`
19	WASHER,SPRING10MM Part Number : `9411110000`
20	PIN COTTER 2.0X15 Part Number : `9420120150`
22	BOLT FLANGE 6X35 Part Number : `957010603500`
