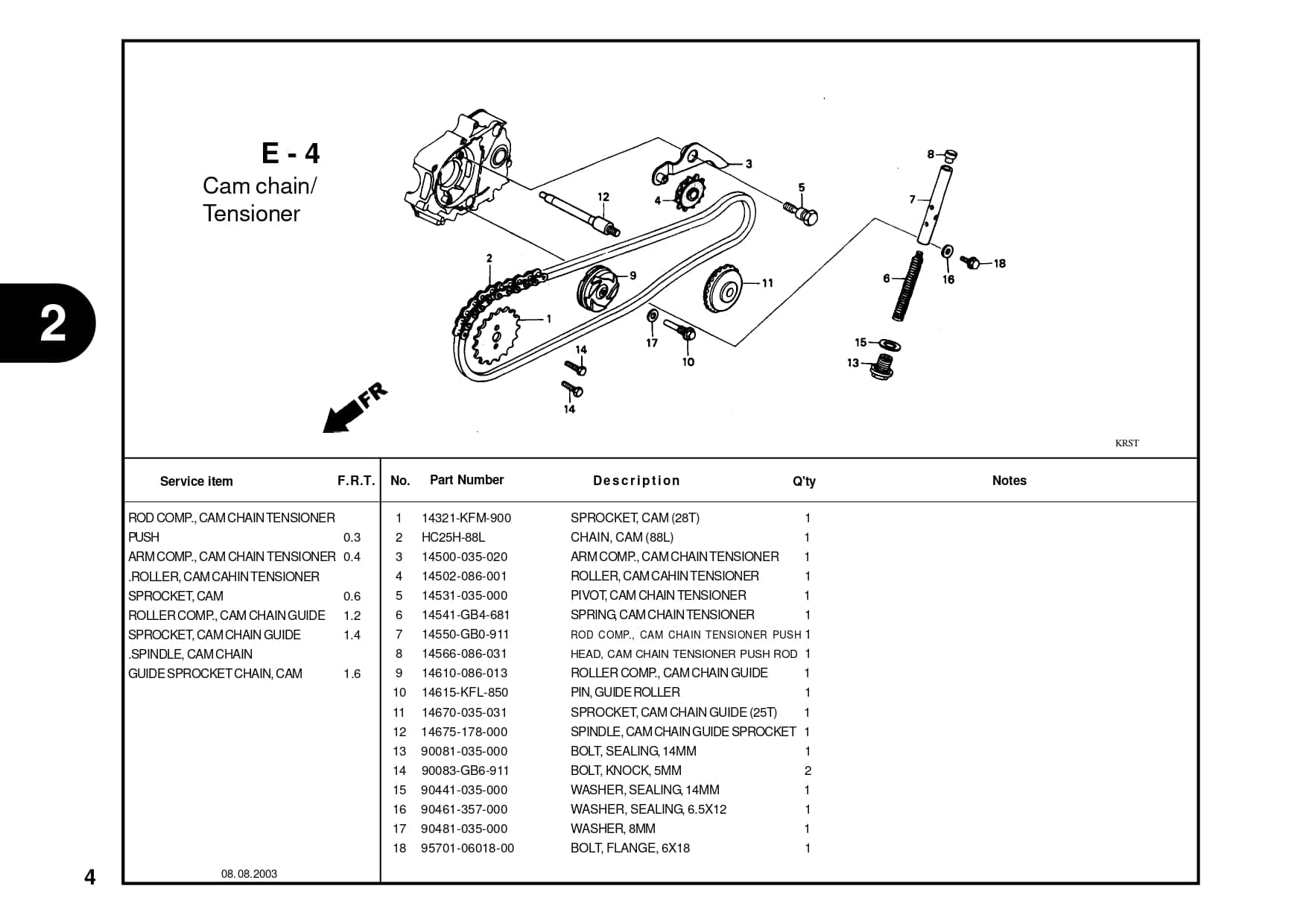

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SPROCKET, CAM | 14321KFM900 | - |
| 2 | HC25H88L | HC25H88L | - |
| 3 | TENSIONER,CHAIN | 14500035020 | - |
| 4 | ROLLER CAM CHAIN TENSIONER | 14502086001 |
|
| 5 | PIVOT TENSIONER | 14531035000 | - |
| 6 | SPRING, CAM CHAIN TENSIONR | 14541GB4681 | - |
| 7 | ROD,TENSIONER | 14550GB0911 |
|
| 8 | HEAD TENSIONER | 14566086031 |
|
| 9 | 14610086013 | 14610086013 | - |
| 10 | PIN, GUIDE ROLLER | 14615KFL850 | - |
| 11 | SPROCKET CAM CHAIN GUIDE | 14670035032 |
|
| 12 | SPINDLE,SPROCKET | 14675178000 | - |
| 13 | BOLT SEALING 14MM | 90081035000 |
|
| 14 | BOLT, KNOCK, 5MM | 90083GB6911 |
|
| 15 | WASHER SEALING 14MM | 90441035000 | - |
| 16 | WASHER SEAL 12MM | 90461357000 |
|
| 17 | WASHER 8 MM | 90481035000 | - |
| 18 | BOLT FLANGE 6X18 | 957010601801 |
|
