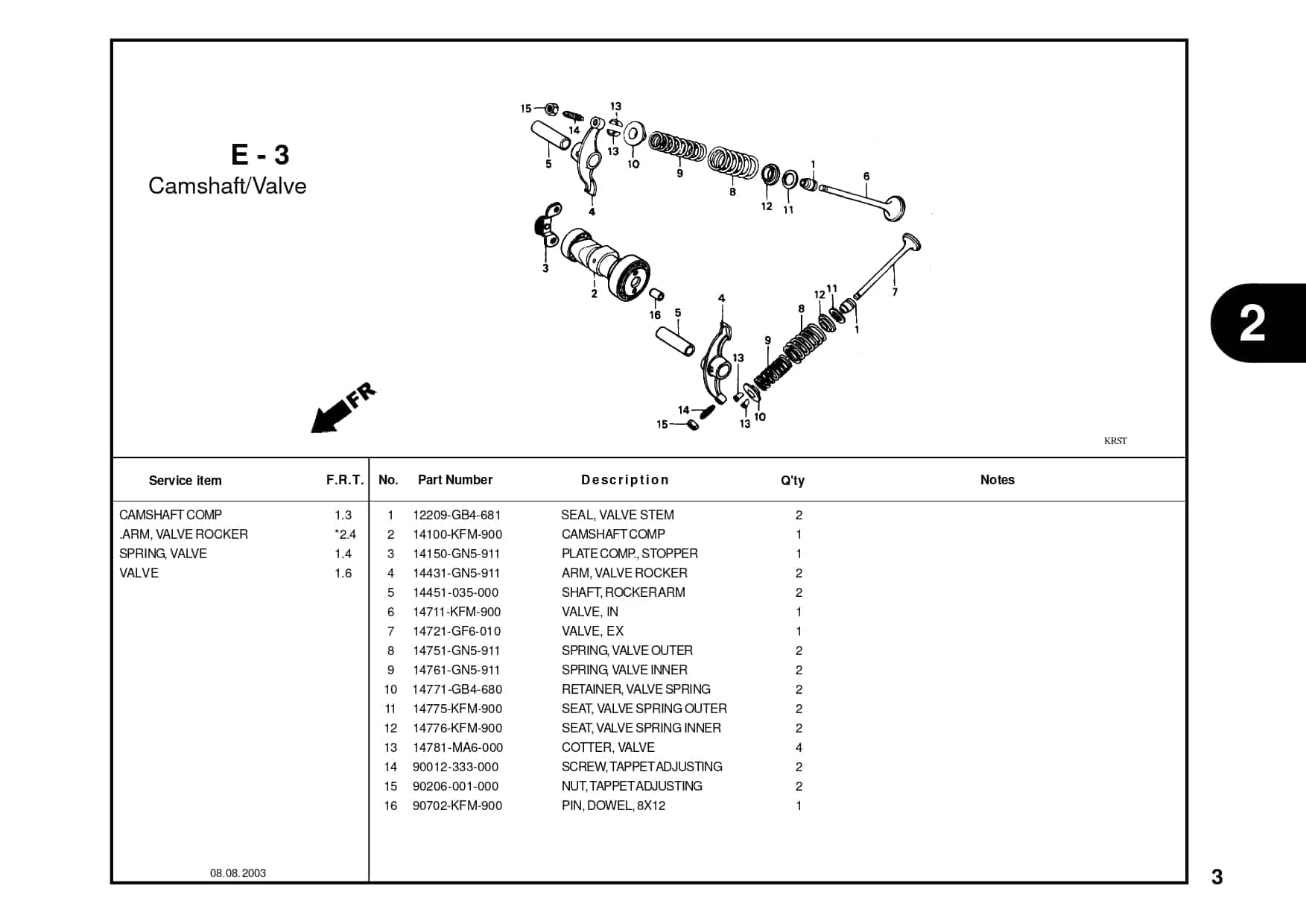

E-3 Camshaft Valve – Katalog Suku Cadang Honda Supra FIT New

#	Informasi Produk	Visual
1	SEAL,VALVE STEM Part Number : `12209GB4681`
2	CAMSHAFT COMP. Part Number : `14100KFM900`
3	PLATE COMP,STOP Part Number : `14150GN5911`
4	ARM VALVE ROCKER Part Number : `14431GN5911`
5	SHAFT ROCKER ARM Part Number : `14451035001`
6	VALVE,INLET Part Number : `14711KFM900`
7	VALVE,EXHAUST Part Number : `14721GF6000`
8	SPRING VALVE OUT Part Number : `14751GN5911`
9	SPRING VALVE IN Part Number : `14761GN5911`
10	RETAINER Part Number : `14771GB4680`
11	SEAT VALVE SPRING OUTER Part Number : `14775KFM901`
12	SEAT, VALVE SPRING INNER Part Number : `14776KFM900`
13	COTTER,VALVE Part Number : `14781MA6000`
14	SCREW,TAPPET ADJ Part Number : `90012333000`
15	NUT,TAPPET ADJUST Part Number : `90206001000`
16	PIN DOWEL 8X12 Part Number : `90702KFM900`
