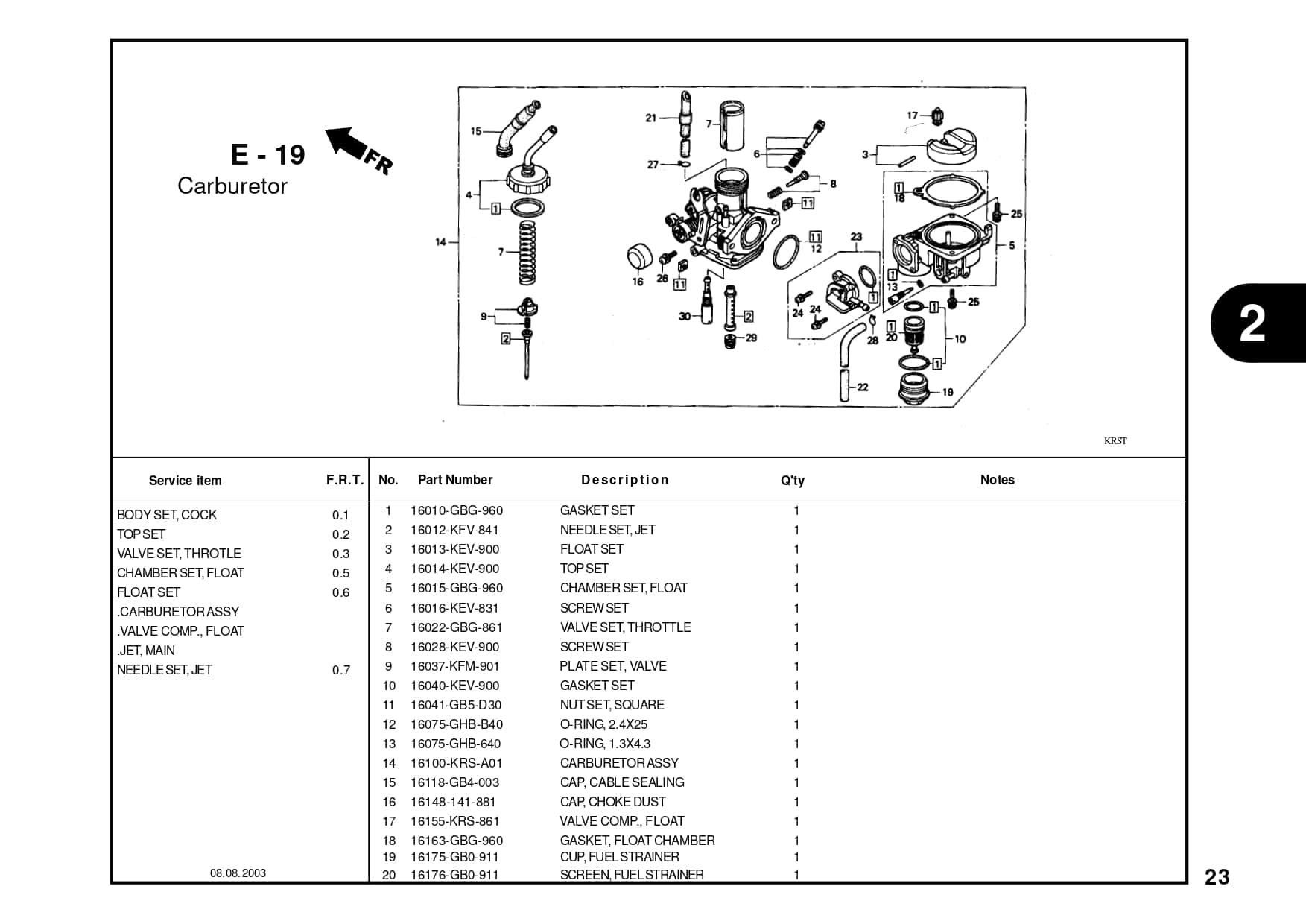

E-19 Carburetor – Katalog Suku Cadang Honda Supra FIT New
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
GASKET SET |
16010GBG960 |
-
|
| 2 |
16012KFV841 |
16012KFV841 |
-
|
| 3 |
FLOAT SET |
16013KEV900 |
-
|
| 4 |
TOP SET |
16014KEV900 |
-
|
| 5 |
CHAMBER,FLOAT |
16015GBG960 |
-
|
| 6 |
SCREW SET |
16016GAHA00 |
-
|
| 7 |
THROTTLE VALVE SE |
16022GBG861 |
-
|
| 8 |
16028KEV900 |
16028KEV900 |
-
|
| 9 |
16037KFM901 |
16037KFM901 |
-
|
| 10 |
GASKET SET B LBL |
16040GB0911 |
|
| 11 |
16041GB5D30 |
16041GB5D30 |
-
|
| 12 |
O-RING |
16075GHBB40 |
|
| 13 |
O-RING,1.3X4.3 |
16075GHB640 |
|
| 14 |
16100KRSA01 |
16100KRSA01 |
-
|
| 15 |
CAP,RUBBER |
16118GB4003 |
-
|
| 16 |
CAP,DUST |
16148141881 |
|
| 17 |
VALVE COMP FLOAT |
16155KRS861 |
|
| 18 |
GASKET FLOAT CHAMBER |
16163GBG960 |
-
|
| 19 |
CUP,FUEL STAINER |
16175GB0911 |
|
| 20 |
CUP,FILTER |
16176GB0911 |
|
| 21 |
16199GB0901 |
16199GB0901 |
-
|
| 22 |
TUBE,OVER FLOW |
16199428771 |
-
|
| 23 |
BODY COMP,COCK |
16951KEV900 |
-
|
| 24 |
SCREW,WASHER 3X12 |
93892030121H |
-
|
| 25 |
SCREW WASHER 4X18 |
938920401818 |
-
|
| 26 |
SCREW, WASHER 5X10 |
938920501008 |
|
| 27 |
CLIP B8,TUBE |
9500202089 |
|
| 28 |
CLIP,TUBE |
9500202659 |
|
| 29 |
99101KRL070 |
99101KRL070 |
-
|
| 30 |
99103KFM038 |
99103KFM038 |
-
|
