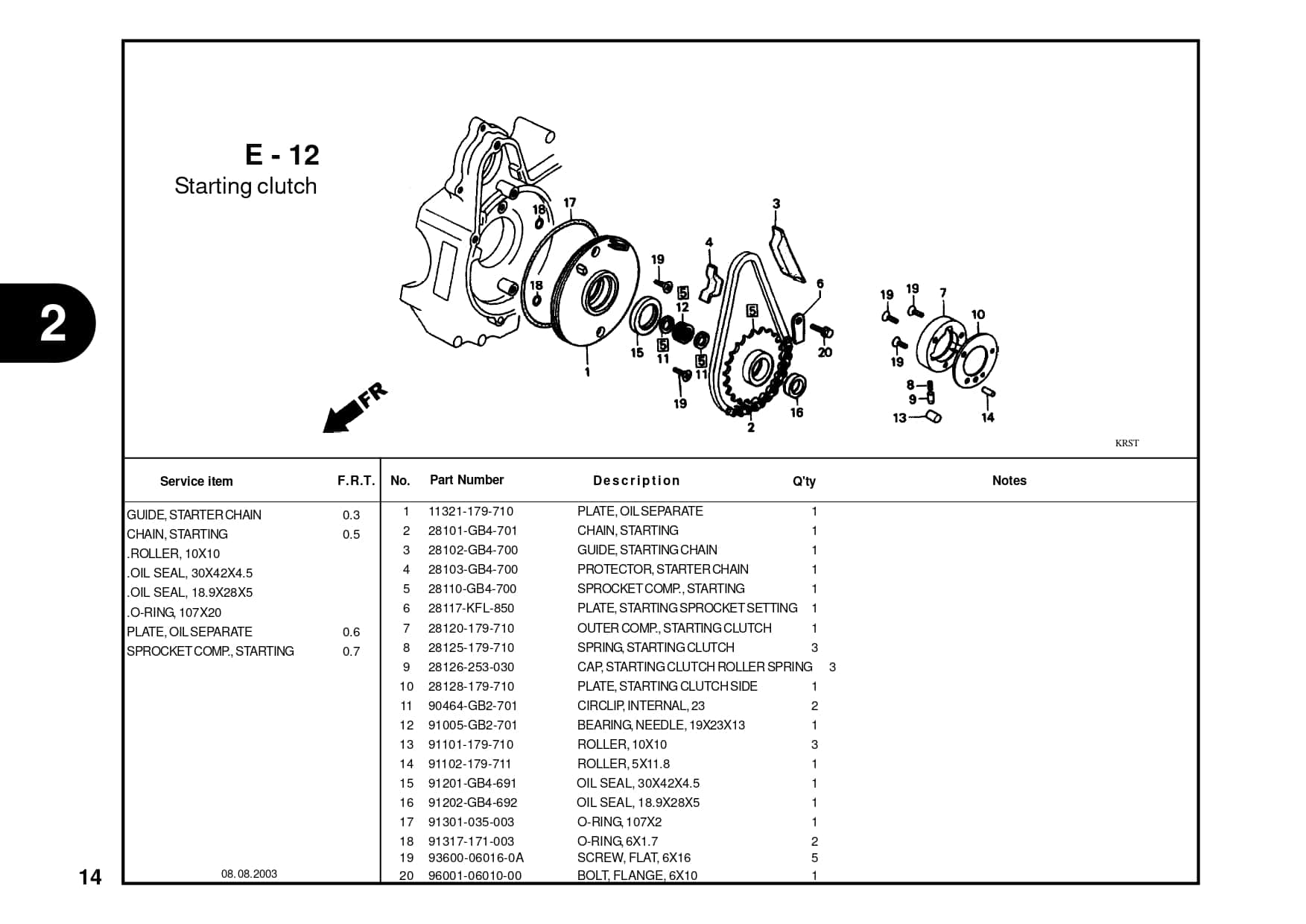

E-12 Starting Clutch – Katalog Suku Cadang Honda Supra FIT New

#	Informasi Produk	Visual
1	PLATE OIL /M Part Number : `11321179710`
2	28101GB4701 Part Number : `28101GB4701`
3	GUIDE START Part Number : `28102GB4760`
4	PROTECTOR /M Part Number : `28103GB4700`
5	GEAR COMP STARTER Part Number : `28110KEV900`
6	SET PLATE, STARTING SPROC Part Number : `28117KFL850`
7	OUTER,START /M Part Number : `28120179710`
8	SPRING START /M Part Number : `28125179710`
9	CAP,STARTING /M Part Number : `28126253030`
10	PLATE START /M Part Number : `28128179710`
11	CIRCLIP INT 23 MM Part Number : `90464GB2702`
12	BEARING NEEDLE Part Number : `91005GB2703`
13	ROLLER,10X10 /M Part Number : `91101179710`
14	ROLLER,5X11.8 /M Part Number : `91102179711`
15	OIL SEAL, 30X42X4.5 Part Number : `91201GB4691`
16	OIL SEAL, 18.9X28X5 Part Number : `91202GB4692`
17	O-RING,107X2 /K Part Number : `91301035003`
18	O-RING,6X1.7 Part Number : `91317171004`
19	SCREW FLAT 6X16 Part Number : `93600060160A`
20	BOLT, FLANGE, 6X10 Part Number : `960010601000`
