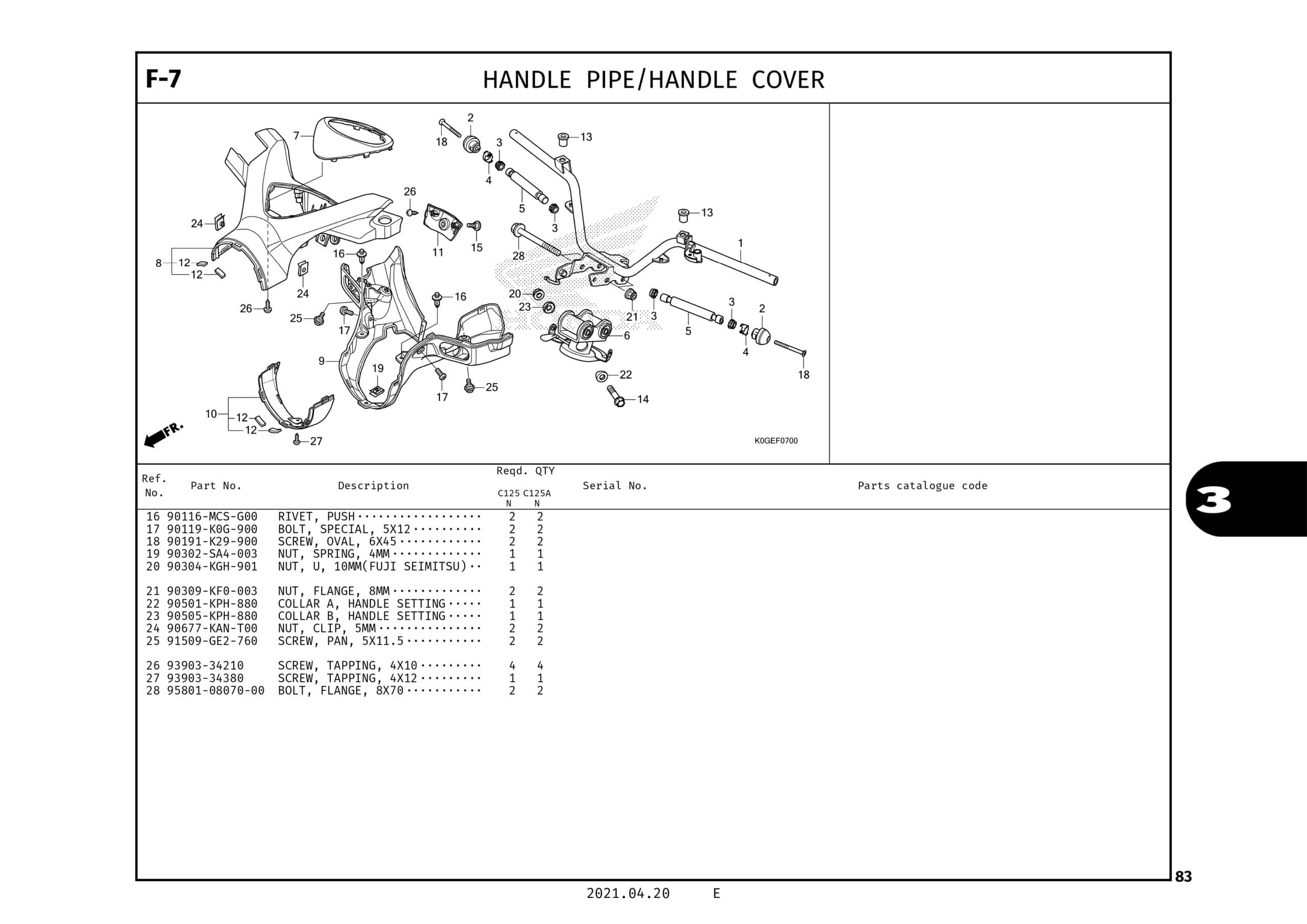

F-7 Handle Pipe Handle Cover – Katalog Honda Super Cub 125

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 PIPE COMP,STRG HA 53100K0G902 -
2 WEIGHT STRG HANDL 53105K0G900 -
3 RUBBER A HDL WEIGHT 53106KR3770 RUBBER A HDL WEIGHT
4 RING HDL WHT SNAP 53108KR3770 RING HDL WHT SNAP
5 WEIGHT B STRG HND 53125KYZ900 WEIGHT B STRG HND
6 HANDLE POST ASSY 53130K0G900 -
7 COVER,SPDMT 53204K0GT30 -
7 COVER SPDMT 53204K0G900 -
8 COVER COMP,HANDLE 53205K0G901ZE -
8 COVER COMP HANDLE 53205K0G901ZB -
8 53205K0G901ZD 53205K0G901ZD -
8 COVER COMP HANDLE 53205K0G901ZA -
9 COVER HEAD LIGHT 53206K0G901 -
10 COVER COMP,HEAD L 53207K0G901ZE -
10 COVER COMP HEAD L 53207K0G901ZB -
10 53207K0G901ZD 53207K0G901ZD -
10 COVER COMP HEAD L 53207K0G901ZA -
11 COVER L HANDLE 53208K0G900 -
12 RUBBER HNDL COVER 53209K0G900 -
13 BOOT HEADLIGHT 61312149300 BOOT HEADLIGHT
14 BOLT FLANGE 10X48 90102KWW640 BOLT FLANGE 10X48
15 SCREW SPECIAL 5MM 90103KPH900 -
16 RIVET, PUSH 90116MCSG00 -
17 BOLT SPECIAL 5X12 90119K0G900 -
18 SCREW OVAL 6X45 90191K29900 -
19 NUT, SPRING, 4MM 90302SA4003 NUT, SPRING, 4MM
20 NUT U10MM 90304KGH901 NUT U10MM
21 NUT,FLANGE 8MM 90309KF0003 -
22 COLLAR A HDL SET 90501KPH880 COLLAR A HDL SET
23 COLLAR B HDL SET 90505KPH880 COLLAR B HDL SET
24 NUT CLIP 5MM. 90677KANT00 NUT CLIP 5MM.
25 SCREW PAN 5X11.5 91509GE2760 SCREW PAN 5X11.5
26 SCREW TAPPING 4X10 9390334210 SCREW TAPPING 4X10
27 SCREW TAPPING 4X12 9390334380 SCREW TAPPING 4X12
28 BOLT,FLANGE 8X70 958010807000 -
