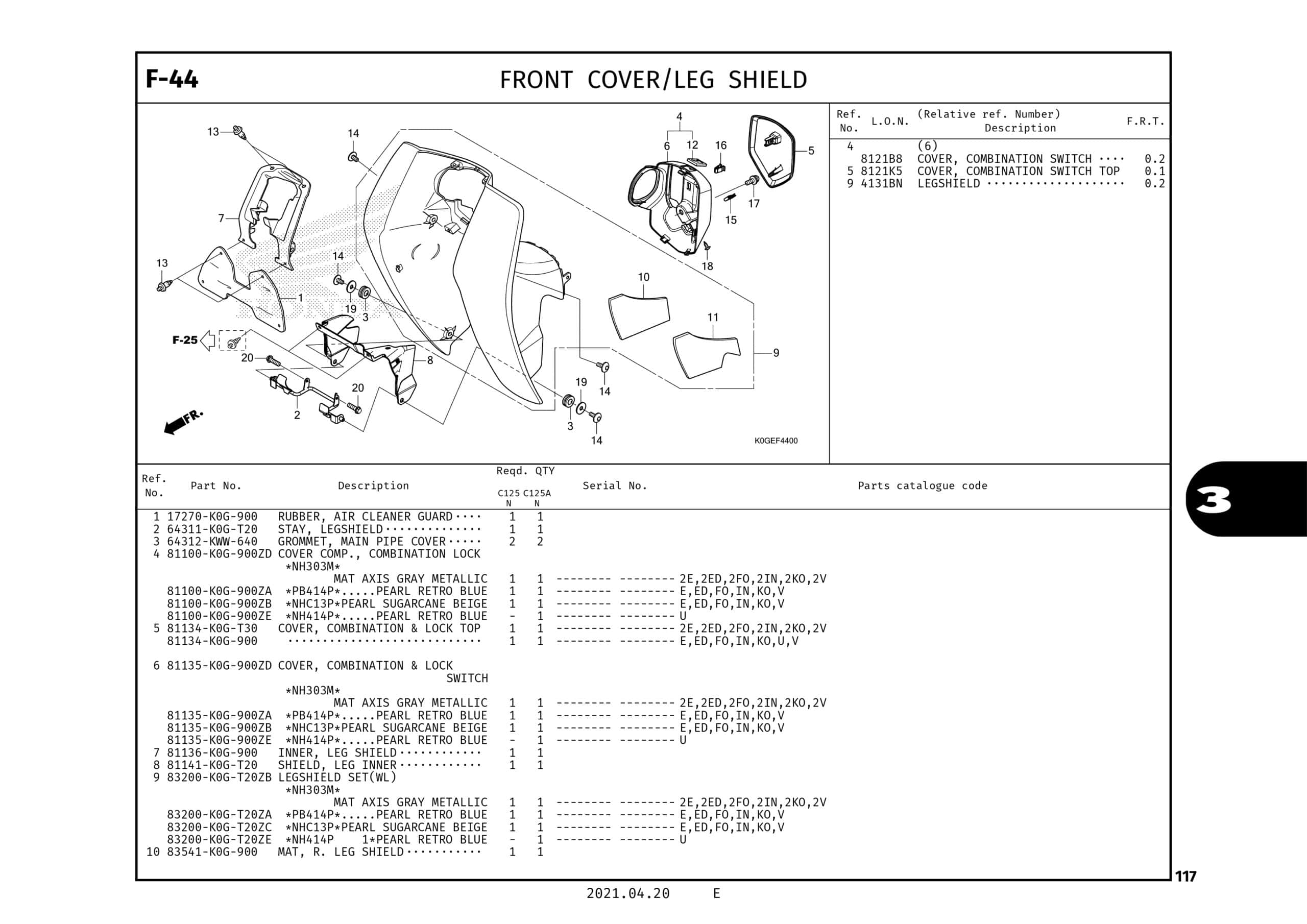

F-44 Front Cover Leg Shield – Katalog Honda Super Cub 125
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
RUBBER AIR/C GUAR |
17270K0G900 |
-
|
| 2 |
STAY LEG SHIELD |
64311K0GT20 |
-
|
| 3 |
GROMMET M/P COVER |
64312KWW640 |
|
| 4 |
COVER COMP,COMB L |
81100K0G900ZD |
-
|
| 4 |
COVER COMP COMB L |
81100K0G900ZA |
-
|
| 4 |
COVER COMP COMB L |
81100K0G900ZB |
-
|
| 4 |
COVER COMP COMB L |
81100K0G900ZE |
-
|
| 5 |
COVER,COMB AND LO |
81134K0GT30 |
-
|
| 5 |
COVER COMB AND LOACK |
81134K0G900 |
-
|
| 6 |
COVER,COMB AND LO |
81135K0G900ZD |
-
|
| 6 |
COVER COMB AND LOACK |
81135K0G900ZA |
-
|
| 6 |
COVER COMB AND LOACK |
81135K0G900ZB |
-
|
| 6 |
COVER COMB AND LOACK |
81135K0G900ZE |
-
|
| 7 |
INNER LEG SHIELD ACK |
81136K0G900 |
-
|
| 8 |
SHIELD LEG INNER |
81141K0GT20 |
-
|
| 9 |
SET ILLUST,LEG SH |
83200K0GT20ZB |
-
|
| 9 |
SET ILLUST LEG SHIELD |
83200K0GT20ZA |
-
|
| 9 |
SET ILLUST LEG SHIELD |
83200K0GT20ZC |
-
|
| 9 |
MAT L LEG SHIELD |
83641K0G900 |
-
|
| 10 |
EMBLEM, WING MARK |
86150KPG901 |
|
| 11 |
EMBLEM,PRODUCT (UEHARA) |
86150KPG902 |
|
| 12 |
EMBLEM,PRODUCT |
86150KTJC60 |
|
| 12 |
CLIP,BPR SEAL |
90116K2PV61 |
|
| 13 |
SCREW,PAN 6X10 |
90132KPPT00 |
|
| 14 |
NUT SPRING 4MM |
90302KWWA00 |
|
| 15 |
CLIP SNAP FIT(PO) |
90666K59A11 |
|
| 16 |
SCREW-WASHER 5X12 |
938940501207 |
-
|
| 17 |
SCREW TAPPING 4X12 |
9390324380 |
|
| 18 |
WASHER PLAIN 6MM |
9410306000 |
|
| 19 |
BOLT FLANGE SH 6X16 |
960010601600 |
|
