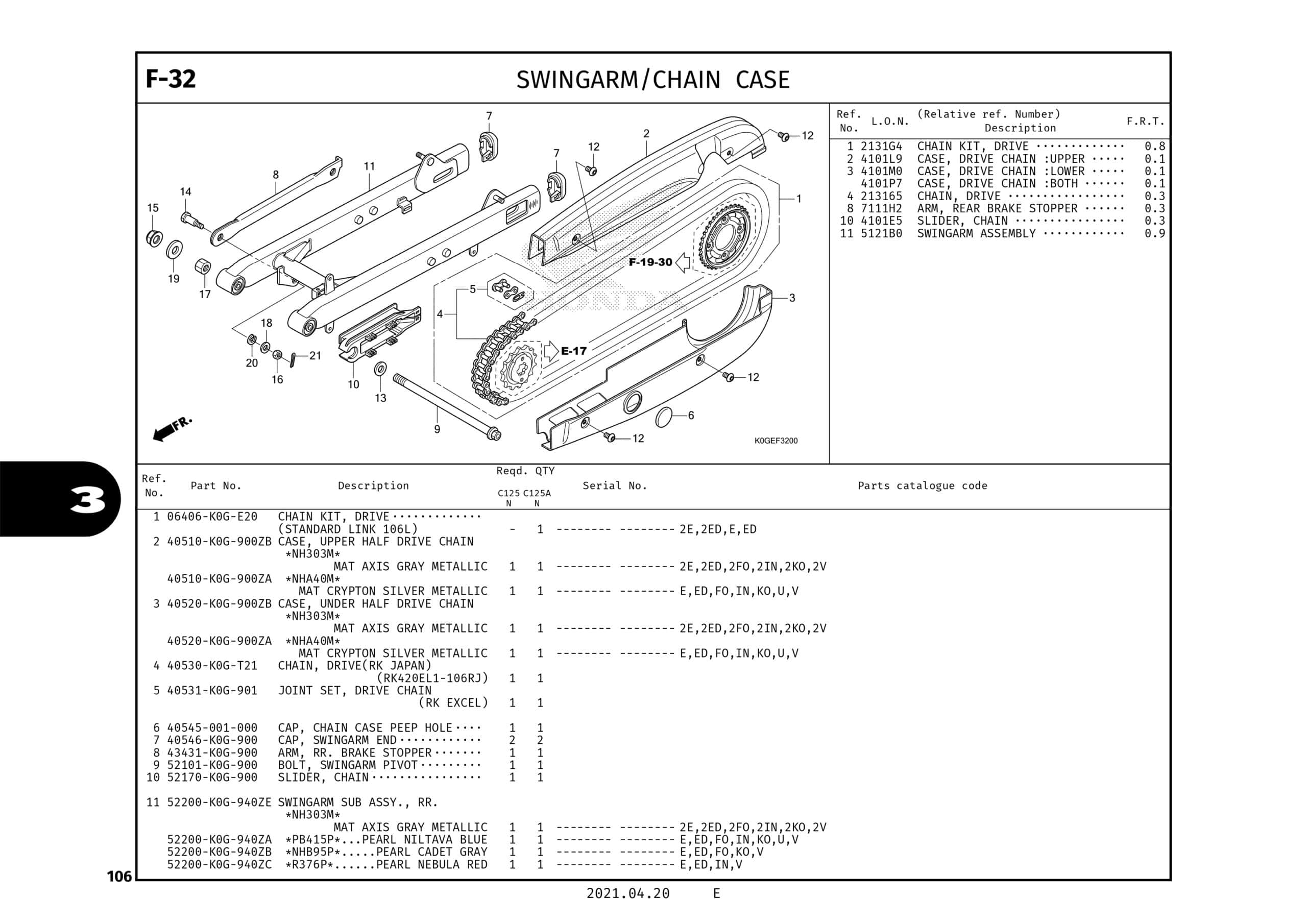

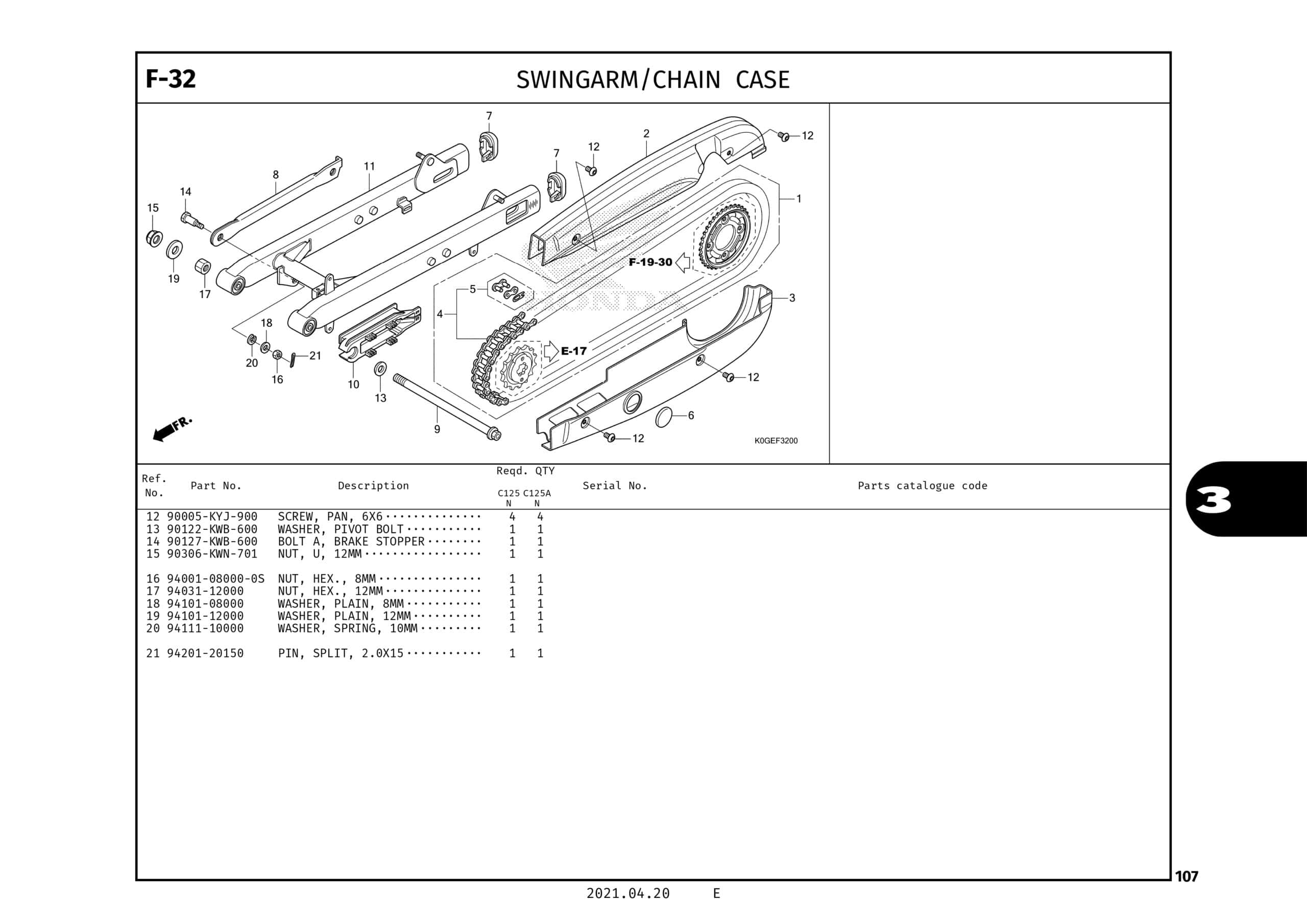

F-32 Swingarm Chain Case – Katalog Honda Super Cub 125
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
06406K0GE20 |
06406K0GE20 |
-
|
| 2 |
CASE,UP HALF DRIV |
40510K0G900ZB |
-
|
| 2 |
CASE UP HALF DRIV |
40510K0G900ZA |
-
|
| 3 |
CASE,UND HALF DRI |
40520K0G900ZB |
-
|
| 3 |
CASE UND HALF DRI |
40520K0G900ZA |
-
|
| 4 |
CHAIN DRIVE RK420 |
40530K0GT21 |
-
|
| 5 |
JOINT SET, DRIVE CHAIN |
40531K0G901 |
-
|
| 6 |
CAP CHN.CASE |
40545141000 |
-
|
| 7 |
CAP SWINGARM END |
40546K0G900 |
-
|
| 8 |
ARM RR BRAKE STPR |
43431K0G900 |
-
|
| 9 |
BOLT SWINGARM PIVOOT |
52101K0G900 |
-
|
| 10 |
SLIDER CHAIN |
52170K0G900 |
-
|
| 11 |
SWINGARM SUB ASSY |
52200K0G940ZE |
-
|
| 11 |
SWINGARM SUB ASSY |
52200K0G940ZA |
-
|
| 11 |
52200K0G940ZB |
52200K0G940ZB |
-
|
| 11 |
SWINGARM SUB ASSY |
52200K0G940ZC |
-
|
| 12 |
SCREW,PAN 6X6 |
90005KYJ900 |
-
|
| 13 |
WASHER PIVOT BOLT |
90122KWB600 |
|
| 14 |
BOLT A BRK STPR |
90127KWB600 |
-
|
| 15 |
NUT U 12MM |
90306KWN701 |
-
|
| 16 |
NUT HEX 8MM |
94001080000S |
|
| 17 |
NUT HEX 12MM |
9403112000 |
-
|
| 18 |
WASHER PLAIN 8MM |
9410108000 |
|
| 19 |
WASHER PLAIN /K4 |
9410112000 |
|
| 20 |
WASHER,SPRING10MM |
9411110000 |
|
| 21 |
PIN COTTER 2.0X15 |
9420120150 |
|
