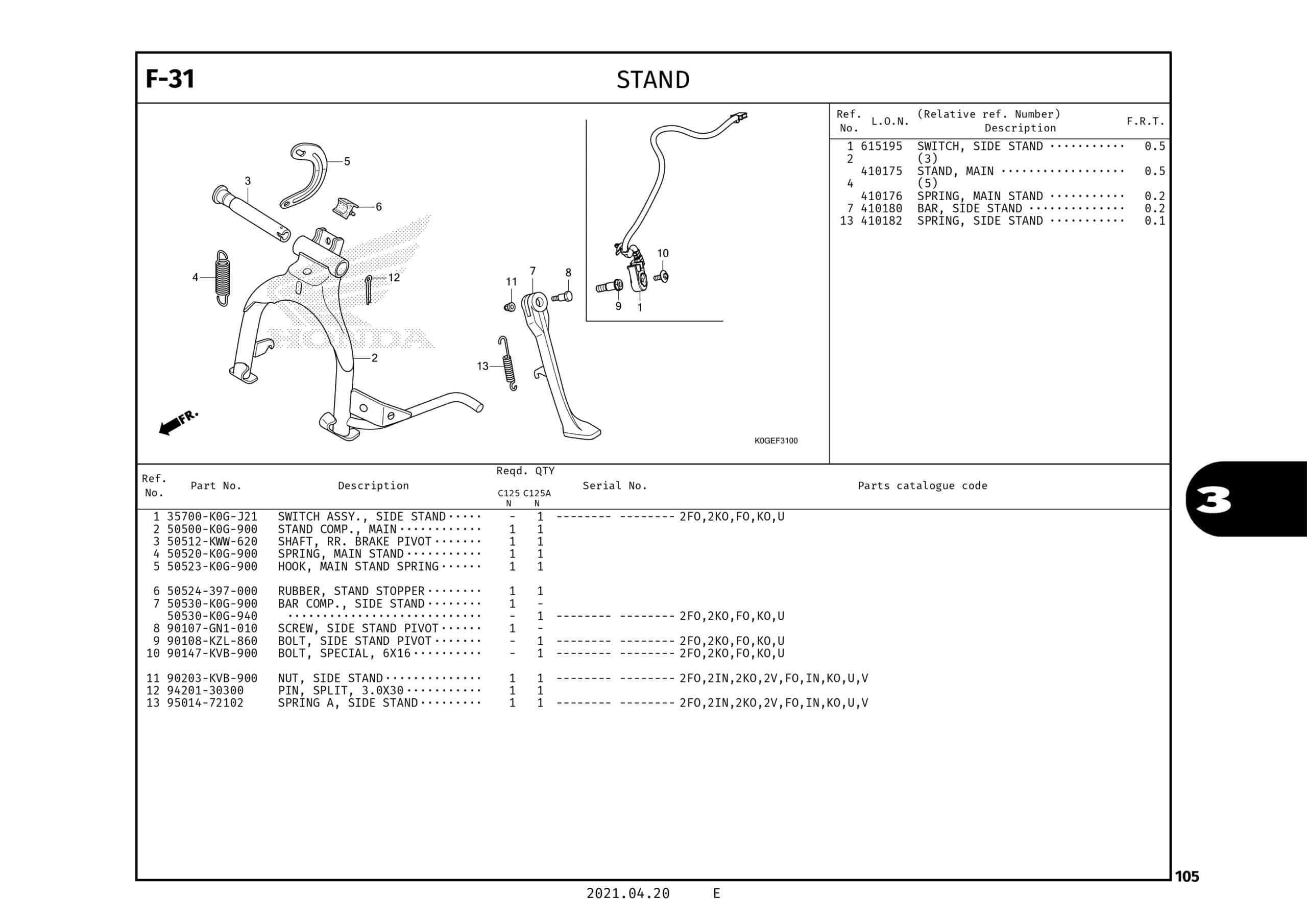

F-31 Stand – Katalog Honda Super Cub 125

#	Informasi Produk	Visual
1	35700K0GJ21 Part Number : `35700K0GJ21`
2	STAND COMP MAIN Part Number : `50500K0G900`
3	SHAFT RR BRAKE PIVOT Part Number : `50512KWW620`
4	SPG MAIN STAND Part Number : `50520K0G900`
5	HOOK MAIN STAND Part Number : `50523K0G900`
6	RUBBER STAND STOP Part Number : `50524397000`
7	BAR COMP SIDE STAR Part Number : `50530K0G900`
7	50530K0G940 Part Number : `50530K0G940`
8	SCREW SIDE STAND Part Number : `90107GN1010`
9	BOLT, SIDE STAND PIVOT Part Number : `90108KZL860`
10	BOLT SPECIAL,6X16 Part Number : `90147KVB900`
11	NUT SIDE STAND Part Number : `90203KVB900`
12	PIN SPLIT 3.0 Part Number : `9420130300`
13	SPRING A SIDE STAND Part Number : `9501472102`
