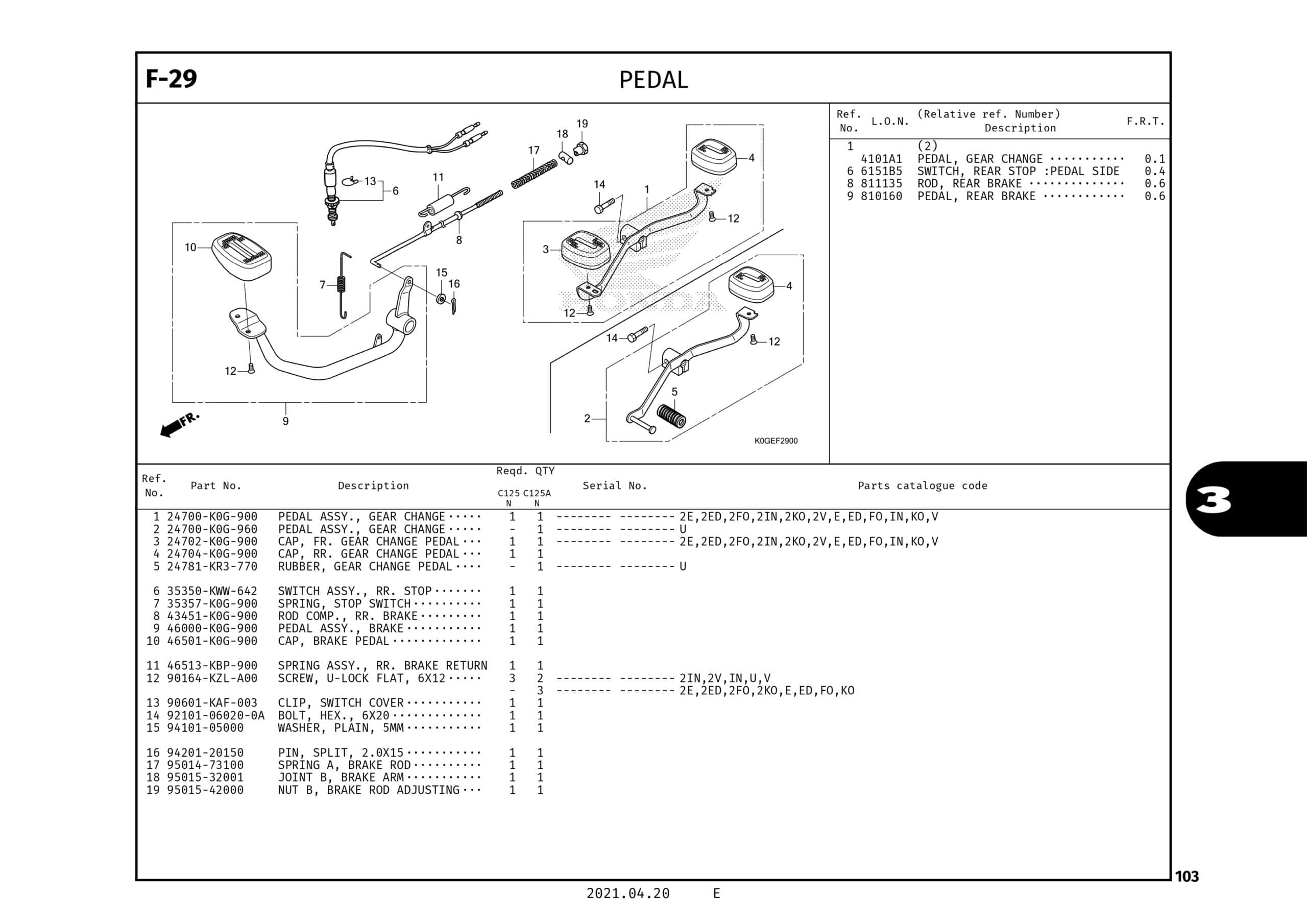

F-29 Pedal – Katalog Honda Super Cub 125

#	Informasi Produk	Visual
1	PEDAL ASSY GEAR C Part Number : `24700K0G900`
2	24700K0G960 Part Number : `24700K0G960`
3	CAP FR PEDAL GEAR Part Number : `24702K0G900`
4	CAP RR GEAR CHANG Part Number : `24704K0G900`
5	RUBBER CHANGE PEDAL Part Number : `24781KR3770`
6	SW ASSY REAR STOP Part Number : `35350KWW642`
7	SPG STOP SW TOP Part Number : `35357K0G900`
8	ROD COMP RR BRK Part Number : `43451K0G900`
9	PEDAL ASSY BRAKE Part Number : `46000K0G900`
10	CAP BRAKE PEDAL Part Number : `46501K0G900`
11	SPRING AS.RR.BRK. Part Number : `46513KBP900`
12	SCREW U-LOCK FLAT 6X12 Part Number : `90164KZLA00`
13	CLIP,SWITCH COVER Part Number : `90601KAF003`
14	BOLT,HEX 6X20 Part Number : `92101060200A`
15	WASHER PLAIN /K5 Part Number : `9410105000`
16	PIN COTTER 2.0X15 Part Number : `9420120150`
17	SPRING A BRAKEROD Part Number : `9501473100`
18	JOINT BRAKE ARM Part Number : `9501532001`
19	NUT ADJUST Part Number : `9501542000`
