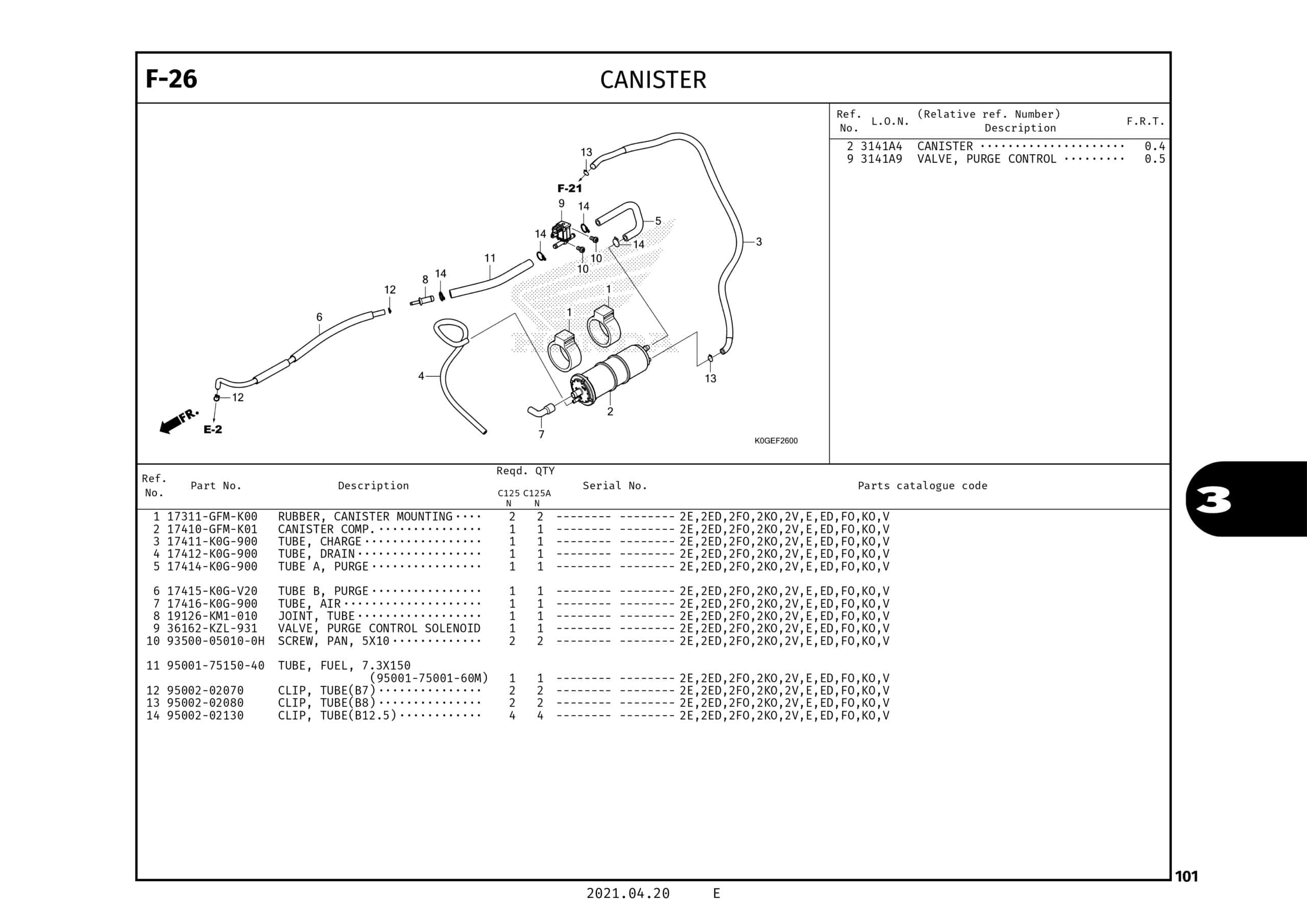

F-26 Canister – Katalog Honda Super Cub 125
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
RUBBER CANISTER M |
17311GFMK00 |
-
|
| 2 |
CANISTER COMP |
17410GFMK01 |
-
|
| 3 |
TUBE CHARGE |
17411K0G900 |
-
|
| 4 |
17412K0G900 |
17412K0G900 |
-
|
| 5 |
17414K0G900 |
17414K0G900 |
-
|
| 6 |
17415K0GV20 |
17415K0GV20 |
-
|
| 7 |
17416K0G900 |
17416K0G900 |
-
|
| 8 |
JOINT TUBE |
19126KM1010 |
-
|
| 9 |
SOL VLV PURGECONT |
36162KZL931 |
-
|
| 10 |
SCREW,CROSS 5X10 |
93500050100H |
-
|
| 11 |
950017515040 |
950017515040 |
-
|
| 12 |
9500202071 |
9500202070 |
|
| 12 |
Clip B7 Tube |
9500202071 |
|
| 13 |
CLIP B8,TUBE |
9500202080 |
|
| 14 |
CLIP, TUBE(B12.5) |
9500202130 |
|
