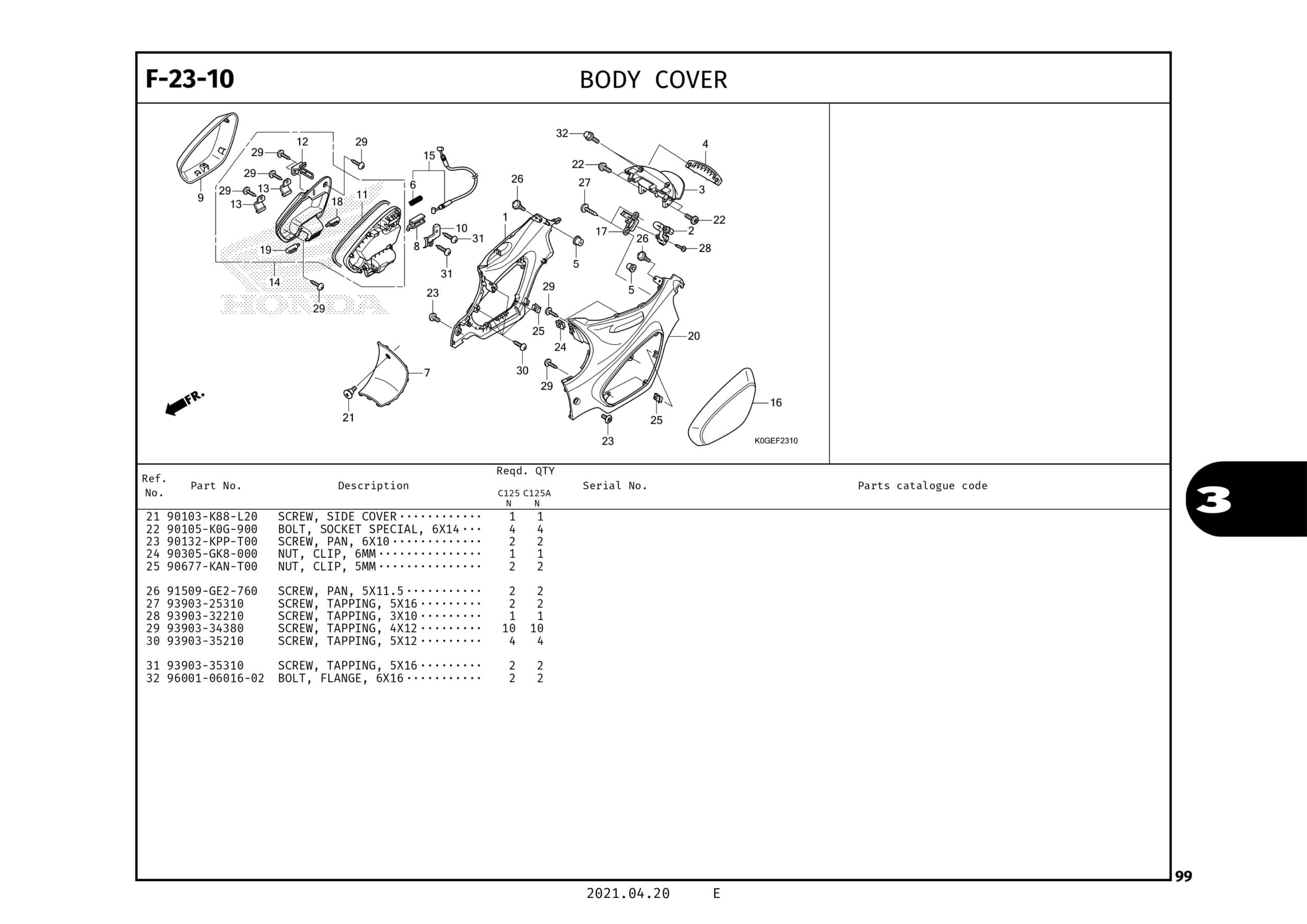

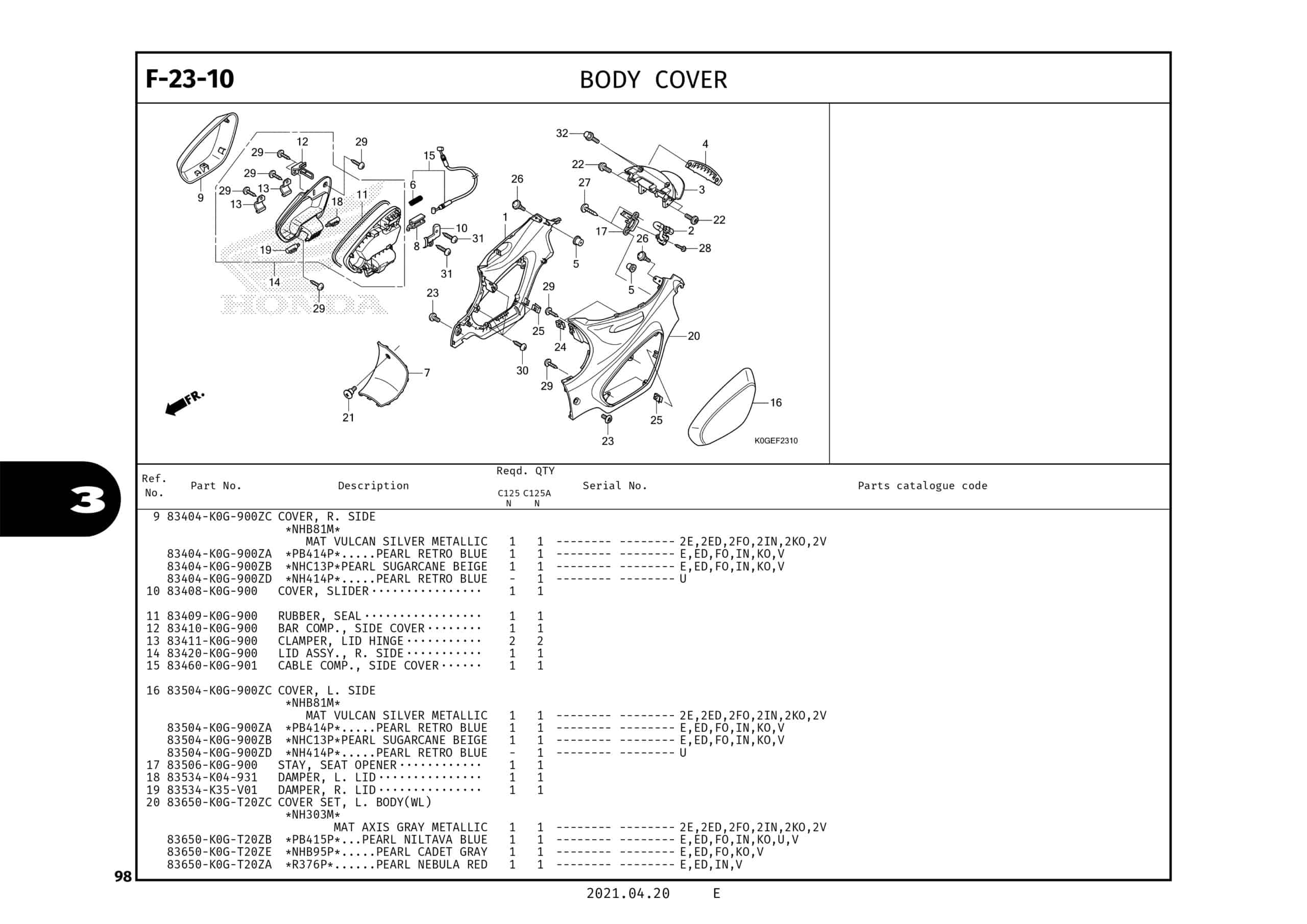

F-23-10 Body Cover – Katalog Honda Super Cub 125
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER COMP,R BODY |
04801K0G900ZE |
-
|
| 1 |
COVER COMP R BODYTE |
04801K0G900ZB |
-
|
| 1 |
04801K0G900ZC |
04801K0G900ZC |
-
|
| 1 |
COVER COMP R BODYTE |
04801K0G900ZA |
|
| 2 |
SW ASSY SEAT OPENEL |
35380K0G901 |
-
|
| 3 |
GRIP,MAIN STAND |
50410K0G900ZE |
-
|
| 3 |
GRIP MAIN STAND G HANGER |
50410K0G900ZB |
-
|
| 3 |
50410K0G900ZD |
50410K0G900ZD |
-
|
| 3 |
GRIP MAIN STAND G HANGER |
50410K0G900ZA |
-
|
| 4 |
GRIP,MAIN STAND U |
50420K0G900ZE |
-
|
| 4 |
GRIP MAIN STAND |
50420K0G900ZB |
-
|
| 4 |
50420K0G900ZD |
50420K0G900ZD |
-
|
| 4 |
GRIP MAIN STAND |
50420K0G900ZA |
-
|
| 5 |
BOOT HEADLIGHT |
61312149300 |
|
| 6 |
SPG CABLE RETURE |
77237KZR700 |
-
|
| 7 |
COVER,CENTER |
80151K0G900ZE |
-
|
| 7 |
COVER CENTER |
80151K0G900ZB |
-
|
| 7 |
80151K0G900ZD |
80151K0G900ZD |
-
|
| 7 |
COVER CENTER |
80151K0G900ZA |
-
|
| 8 |
SLIDER LID HINGE |
80181K0G900 |
-
|
| 9 |
COVER R,SIDE |
83404K0G900ZC |
-
|
| 9 |
COVER R SIDE |
83404K0G900ZA |
-
|
| 9 |
COVER R SIDE |
83404K0G900ZB |
-
|
| 9 |
83404K0G900ZD |
83404K0G900ZD |
-
|
| 10 |
COVER SLIDER |
83408K0G900 |
-
|
| 11 |
RUBBER SEAL CONSOLE |
83409K0G900 |
-
|
| 12 |
BAR COMP SIDE COV |
83410K0G900 |
-
|
| 13 |
CLAMPER LID HINGEOLE |
83411K0G900 |
-
|
| 14 |
LID ASSY R SIDE ER |
83420K0G900 |
-
|
| 15 |
CABLE COMP SIDE C |
83460K0G901 |
-
|
| 16 |
COVER L,SIDE |
83504K0G900ZC |
-
|
| 16 |
COVER L SIDE |
83504K0G900ZA |
-
|
| 16 |
COVER L SIDE |
83504K0G900ZB |
-
|
| 16 |
83504K0G900ZD |
83504K0G900ZD |
-
|
| 17 |
STAY SEAT OPENER |
83506K0G900 |
-
|
| 18 |
DAMPER L LID |
83534K04931 |
-
|
| 19 |
DAMPER R LID |
83534K35V01 |
-
|
| 20 |
SET ILLUST,L BODY |
83650K0GT20ZC |
-
|
| 20 |
SET ILLUST L BODY |
83650K0GT20ZB |
-
|
| 20 |
83650K0GT20ZE |
83650K0GT20ZE |
-
|
| 20 |
SET ILLUST L BODY |
83650K0GT20ZA |
-
|
| 21 |
SCREW SIDE COVER |
90103K88L20 |
-
|
| 22 |
BOLT SOCKET SPL 6 |
90105K0G900 |
-
|
| 23 |
SCREW,PAN 6X10 |
90132KPPT00 |
|
| 24 |
NUT,CLIP 6MM |
90305GK8000 |
|
| 25 |
NUT CLIP 5MM. |
90677KANT00 |
|
| 26 |
SCREW PAN 5X11.5 |
91509GE2760 |
|
| 27 |
SCREW TAPPING 5X16 |
9390325310 |
|
| 28 |
SCREW TAPING 3X10 |
9390332210 |
-
|
| 29 |
SCREW TAPPING 4X12 |
9390334380 |
|
| 30 |
SCREW TAPPING 5X12 |
9390335210 |
|
| 31 |
SCREW TAPPING 5X16 |
9390335310 |
|
| 32 |
BOLT,FLANGE 6X16 |
960010601602 |
-
|
