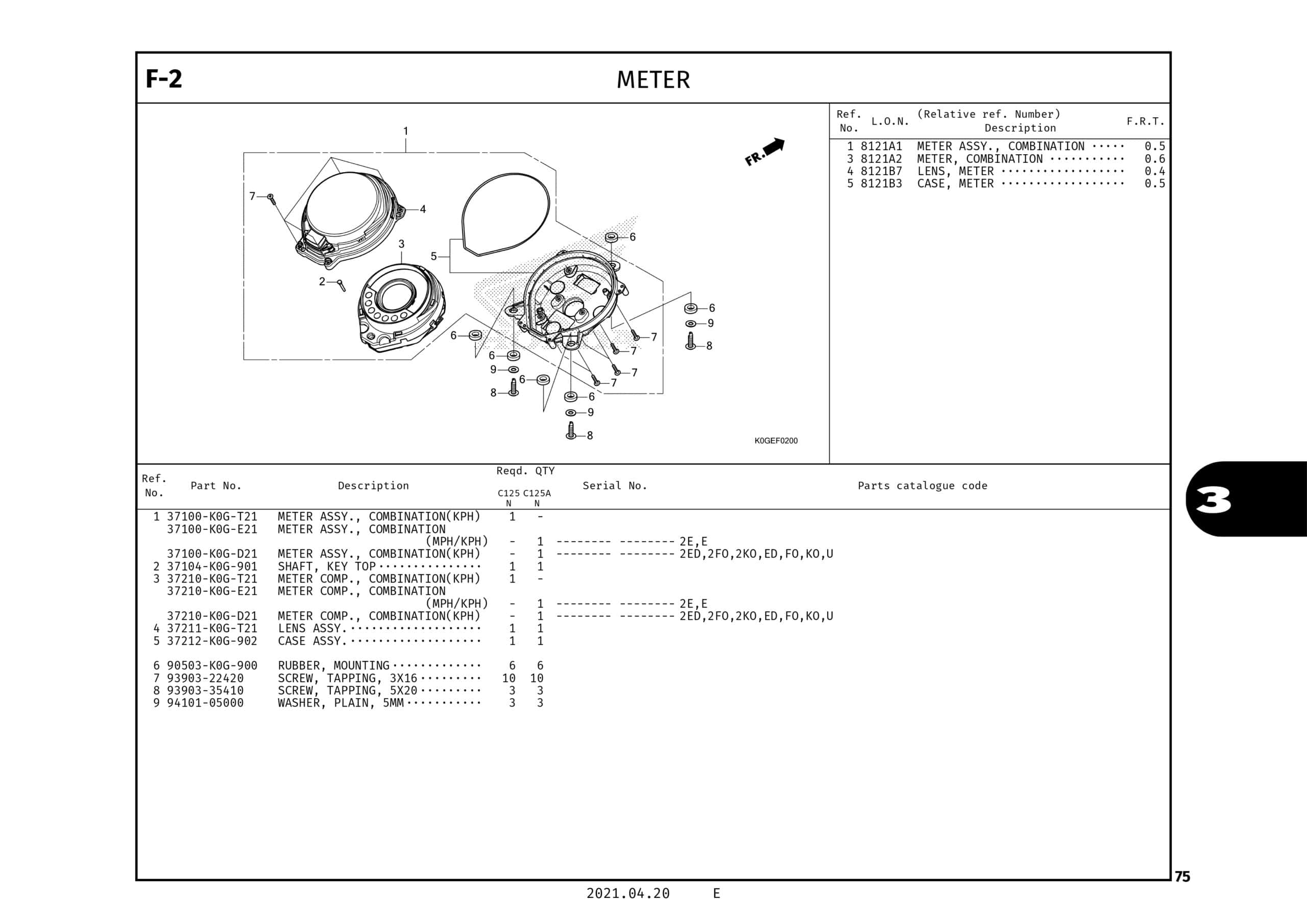

F-2 Meter – Katalog Honda Super Cub 125
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
METER ASSY COMB |
37100K0GT21 |
-
|
| 1 |
METER ASSY COMB |
37100K0GE21 |
-
|
| 1 |
METER ASSY COMB |
37100K0GD21 |
-
|
| 2 |
SHAFT KEY TOP |
37104K0G901 |
-
|
| 3 |
METER COMP COMB |
37210K0GT21 |
-
|
| 3 |
METER COMP COMB |
37210K0GE21 |
-
|
| 3 |
METER COMP COMB |
37210K0GD21 |
-
|
| 4 |
LENS ASSY |
37211K0GT21 |
-
|
| 5 |
CASE ASSY |
37212K0G902 |
-
|
| 6 |
RUBBER MOUNT (5INCH) |
90503K0G900 |
-
|
| 7 |
SCREW TAPPING,3X16 |
9390322420 |
|
| 8 |
SCREW TAP. 5X20 |
9390335410 |
-
|
| 9 |
WASHER PLAIN /K5 |
9410105000 |
|
