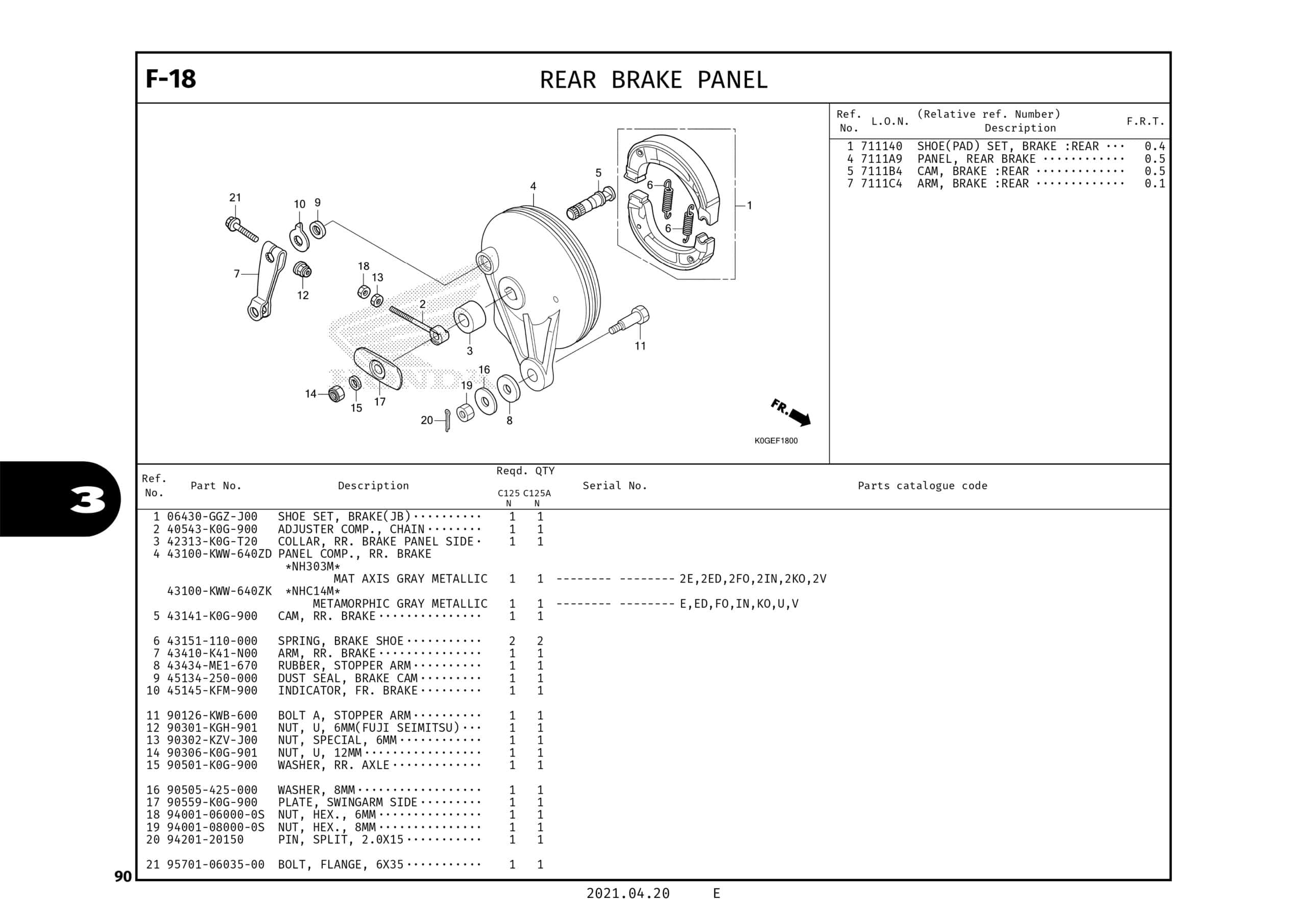

F-18 Rear Brake Panel – Katalog Honda Super Cub 125

#	Informasi Produk	Visual
1	SHOE SET BRAKE (50-16&43T) LBL Part Number : `06430GGZJ00`
2	ADJUSTER CHAIN MZ-98RJ Part Number : `40543K0G900`
3	COLLAR RR BRAKE P Part Number : `42313K0GT20`
4	PANEL RR BRAKE (SLV) Part Number : `43100KWW640ZD`
4	PANEL COMP RR BRARAKE Part Number : `43100KWW640ZK`
5	CAM REAR BRAKE Part Number : `43141K0G900`
6	SPRING BRAKE.SHOE Part Number : `43151110000`
7	ARM RR BRAKE Part Number : `43410K41N00`
8	RUBBER STOP ARM Part Number : `43434ME1670`
9	DUST SEAL,BRAKE Part Number : `45134250000`
10	INDICATOR FR BRK Part Number : `45145KFM900`
11	BOLT A STPR ARM B Part Number : `90126KWB600`
12	NUT U 6MM Part Number : `90301KGH901`
13	NUT SPECIAL 6MM Part Number : `90302KZVJ00`
14	NUT U 12MM Part Number : `90306K0G901`
15	WASHER RR AXLE 1X45X3 Part Number : `90501K0G900`
16	WASHER 8MM Part Number : `90505425000`
17	PLATE SWINGARM SI Part Number : `90559K0G900`
18	NUT HEX 6MM Part Number : `94001060000S`
19	NUT HEX 8MM Part Number : `94001080000S`
20	PIN COTTER 2.0X15 Part Number : `9420120150`
21	BOLT FLANGE 6X35 Part Number : `957010603500`
