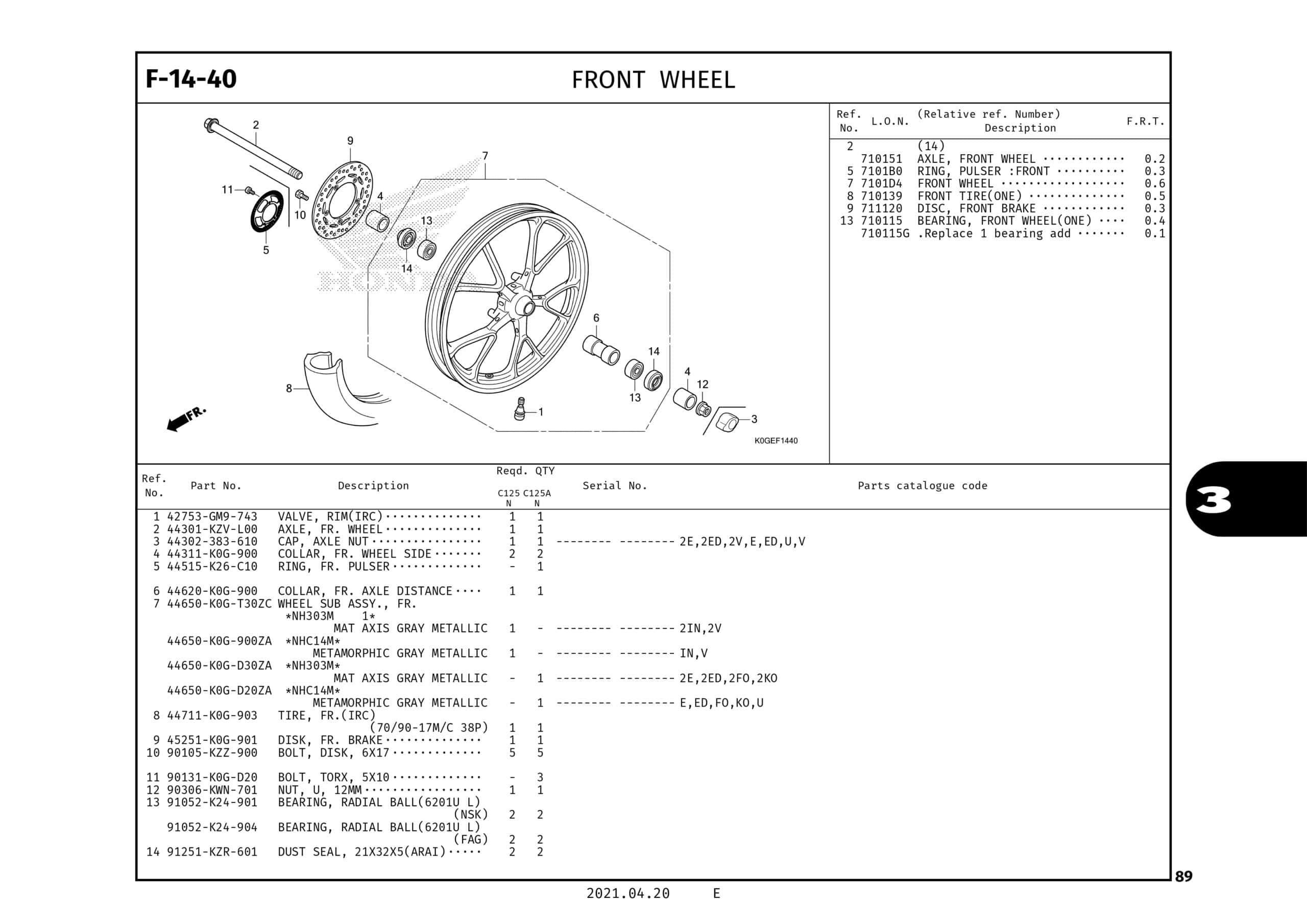

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | VALVE,RIM (INOUE) | 42753GM9743 |
|
| 2 | AXLE FR WHEEL | 44301KZVL00 | - |
| 3 | CAP, AXLE NUT | 44302383610 | - |
| 4 | COLLAR FR WHEEL SD | 44311K0G900 | - |
| 5 | RING,FR PULSER | 44515K26C10 |
|
| 6 | COLLAR FR AXLE DI | 44620K0G900 | - |
| 7 | WHEEL SUB ASSY,FR | 44650K0GT30ZC | - |
| 7 | WHEEL SUB ASSY FR PRSNPB4 | 44650K0G900ZA | - |
| 7 | 44650K0GD30ZA | 44650K0GD30ZA | - |
| 7 | 44650K0GD20ZA | 44650K0GD20ZA | - |
| 8 | TIRE FR(IRC) | 44711K0G903 | - |
| 9 | DISK FRONT BRAKE | 45251K0G901 | - |
| 10 | BOLT DISK 6X17 R 8X20 | 90105KZZ900 |
|
| 11 | 90131K0GD20 | 90131K0GD20 | - |
| 12 | NUT U 12MM | 90306KWN701 | - |
| 13 | 91052K24903 | 91052K24901 | - |
| 13 | BEARING RADIAL BALL(6201U L) | 91052K24904 |
|
| 14 | DUST SEAL, 21X32X5 | 91251KZR601 |
|
