| # | Informasi Produk | Visual |
|---|---|---|
|
1
|
COVER COMP,R CRAN
Part Number :
11330K0GT30
|
|
|
1
|
COVER COMP R CRANKCASE
Part Number :
11330K0GT20
|
|
|
2
|
CLAMPER A OIL TEMP SNSR
Part Number :
11346KTR940
|
|
|
3
|
PROTECTOR,R COVER
Part Number :
11371K0GT30
|
|
|
3
|
PROTECTOR R COVER
Part Number :
11371K0GT20
|
|
|
4
|
GSKT R CRANKCASE
Part Number :
11394K1MT02
|
|
|
5
|
CLIP, PISTON PIN, 13MM
Part Number :
13115GN5910
|
|
|
6
|
COVER,OIL FILTER
Part Number :
15411K0GT30
|
|
|
6
|
COVER OIL FILTER
Part Number :
15411K0GT20
|
|
|
7
|
ELEMENT, OIL FILTER LBL
Part Number :
15412MGSD21
|
|
|
8
|
SPRING, OIL FILTER LBL
Part Number :
15414MEB670
|
|
|
9
|
GAUGE,OIL LEVEL
Part Number :
15651K2JT00
|
|
|
9
|
GAUGE OIL LEVEL
Part Number :
15651K1MT00
|
|
|
10
|
RUBBER MOUNT
Part Number :
19639GBC000
|
|
|
11
|
LEVER COMP CLUTCH
Part Number :
22810K0GT20
|
|
|
12
|
PLATE CLUTCH LIFT
Part Number :
22823K0GT20
|
|
|
13
|
SPRING, CAM PLATE
Part Number :
22825KWB600
|
|
|
14
|
PLATE COMP CLUTCH
Part Number :
22830K0GT20
|
|
|
15
|
BOLT CLUTCH ADJUSTER
Part Number :
22846K1MT00
|
|
|
16
|
PLATE COMP, BRAKE
Part Number :
22850KPH900
|
|
|
17
|
SPG, BRAKE
Part Number :
22853KPH900
|
|
|
18
|
RETAINER COMP BAL
Part Number :
22860K1MT00
|
|
|
19
|
COLLAR TAILLIGHT SETTING
Part Number :
33715GB0900
|
|
|
20
|
BOLT FLANGE S-SHD
Part Number :
90001K0GT20
|
|
|
21
|
BOLT FLANGE S-SHD
Part Number :
90004K0GT20
|
|
|
22
|
SCREW PAN 6X18
Part Number :
90130K26900
|
|
|
23
|
WASHER,THRUST 8MM
Part Number :
90443844000
|
|
|
24
|
WASHER 8MM
Part Number :
90485K1MT00
|
|
|
25
|
CIRCLIP 7MM
Part Number :
90605166720
|
|
|
26
|
NEEDLE BRG
Part Number :
91021148004
|
|
|
27
|
O-RING, 39.8X2.2(ARAI)
Part Number :
91302PA9003
|
|
|
28
|
O-RING 8MM
Part Number :
91303001010
|
|
|
29
|
O-RING,18X3
Part Number :
91307KRM840
|
|
|
30
|
NUT HEX 8MM
Part Number :
9403008000
|
|
|
31
|

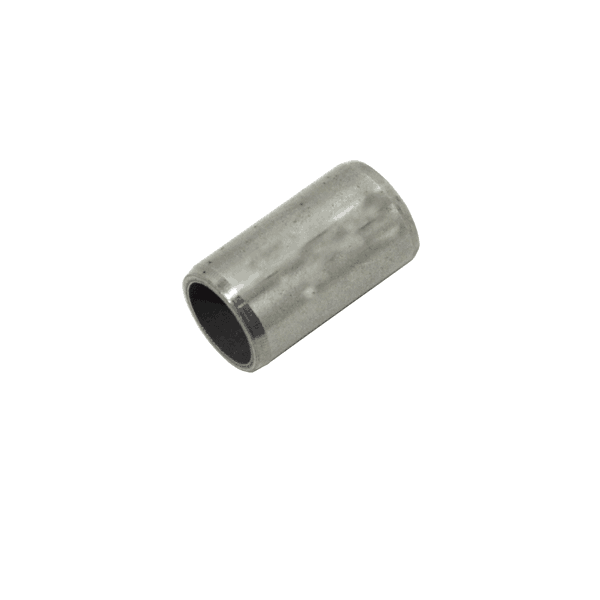

PIN DOWEL 8X14
Part Number :
9430108140
|
|
