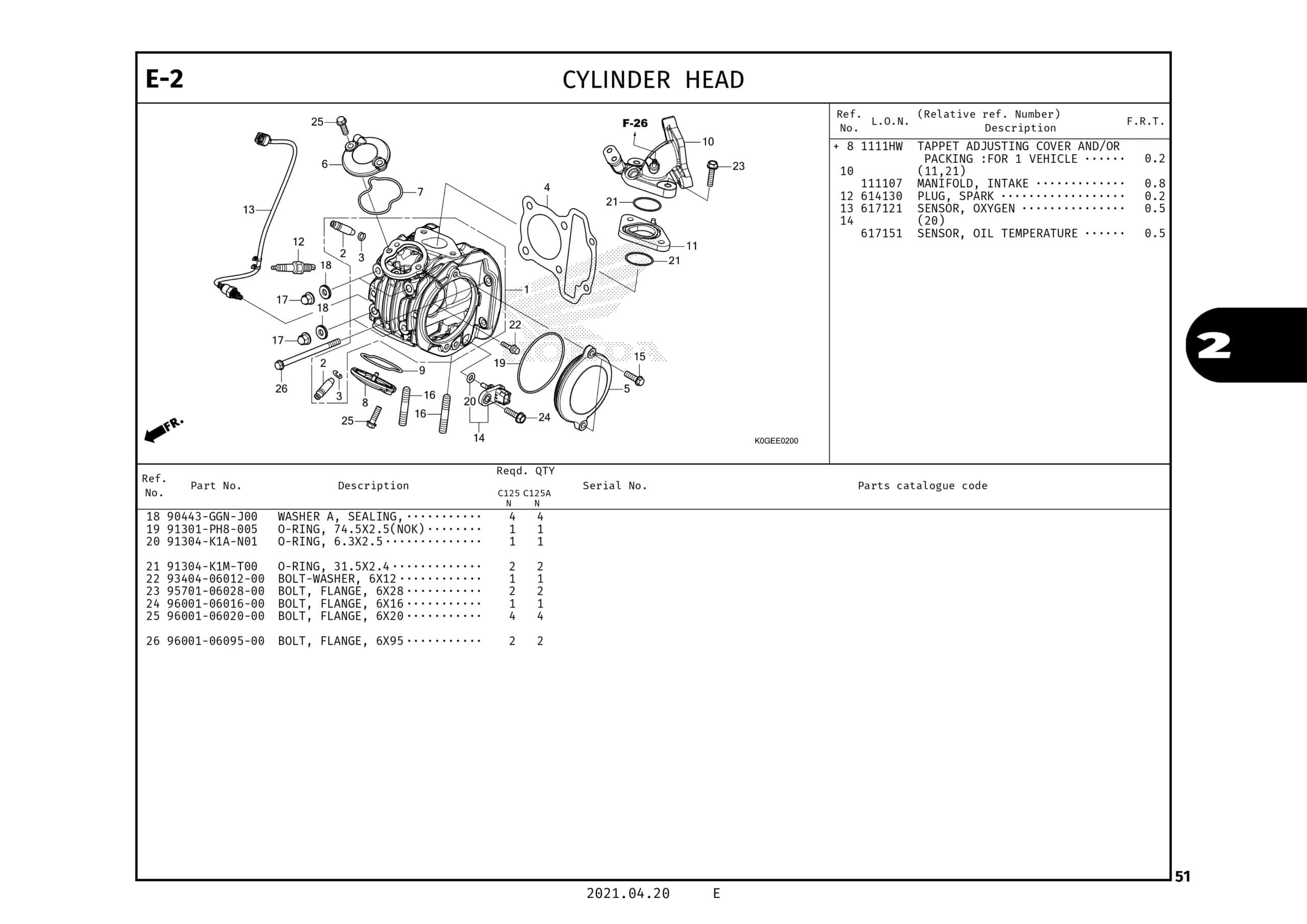

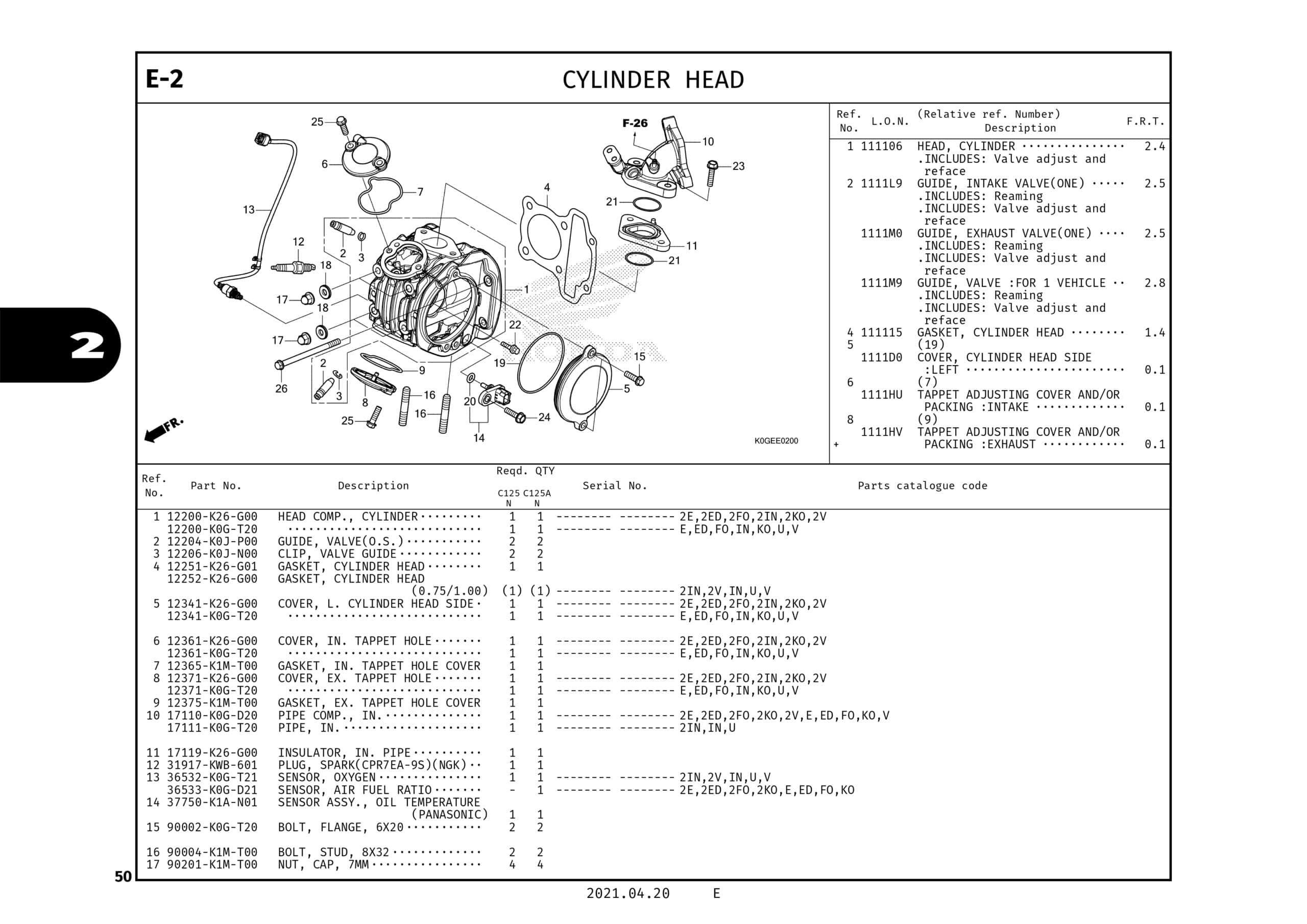

E-2 Cylinder Head – Katalog Honda Super Cub 125

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 TUBE BREATHER 15761K0GT20 -
2 ELEMENT COMP AIR/ 17210KWW640 -
3 SEAL A/C COVER 17213KWB600 SEAL A/C COVER
4 SEAL AIR/C CASE ER 17214KPYH00 -
5 CASE SUB ASSY AIR 17225K0GT20 -
6 V.TUBE 11X15X35 17227KPK900 V.TUBE 11X15X35
7 COVER SUB ASSY AI 17235K0G900 -
8 PLUG A/C DRAIN 17236KVB900 PLUG A/C DRAIN
9 TUBE AIR/C CONNECT 17253K0GT20 -
10 BAND AIR CLEANER CONNECT 17256K35V00 -
11 BOLT FLANGE 6MM 90116KVB900 BOLT FLANGE 6MM
12 PUSH CLIP,AIR INT DUCT 90601PV3003 PUSH CLIP,AIR INT DUCT
13 SCREW, TAPPING 5X25 9390325580 SCREW, TAPPING 5X25
14 CLAMP D 13.0 TUBE 950024130008 CLAMP D 13.0 TUBE
15 CLIP, TUBE(C12) 9500280000 CLIP, TUBE(C12)
