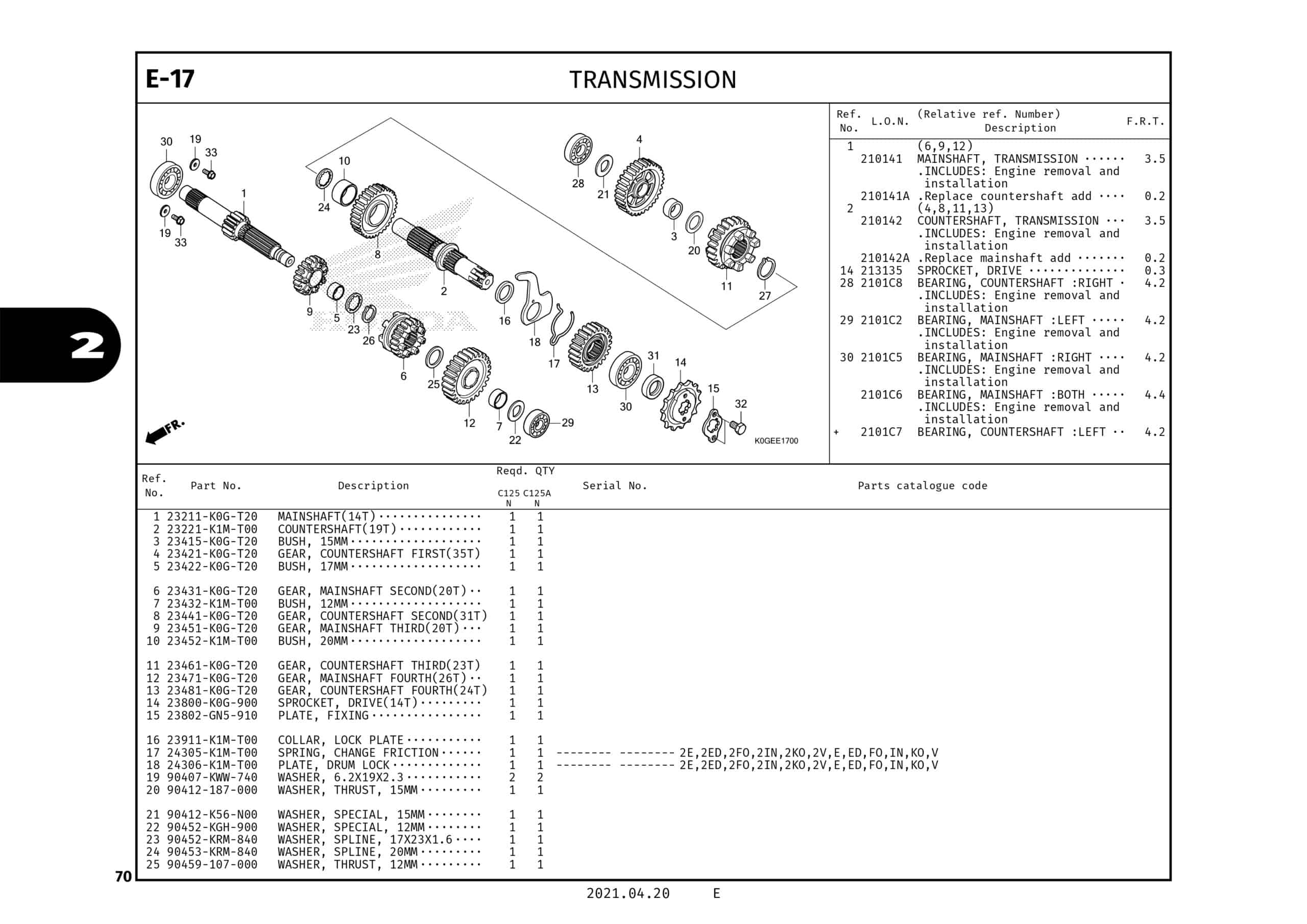

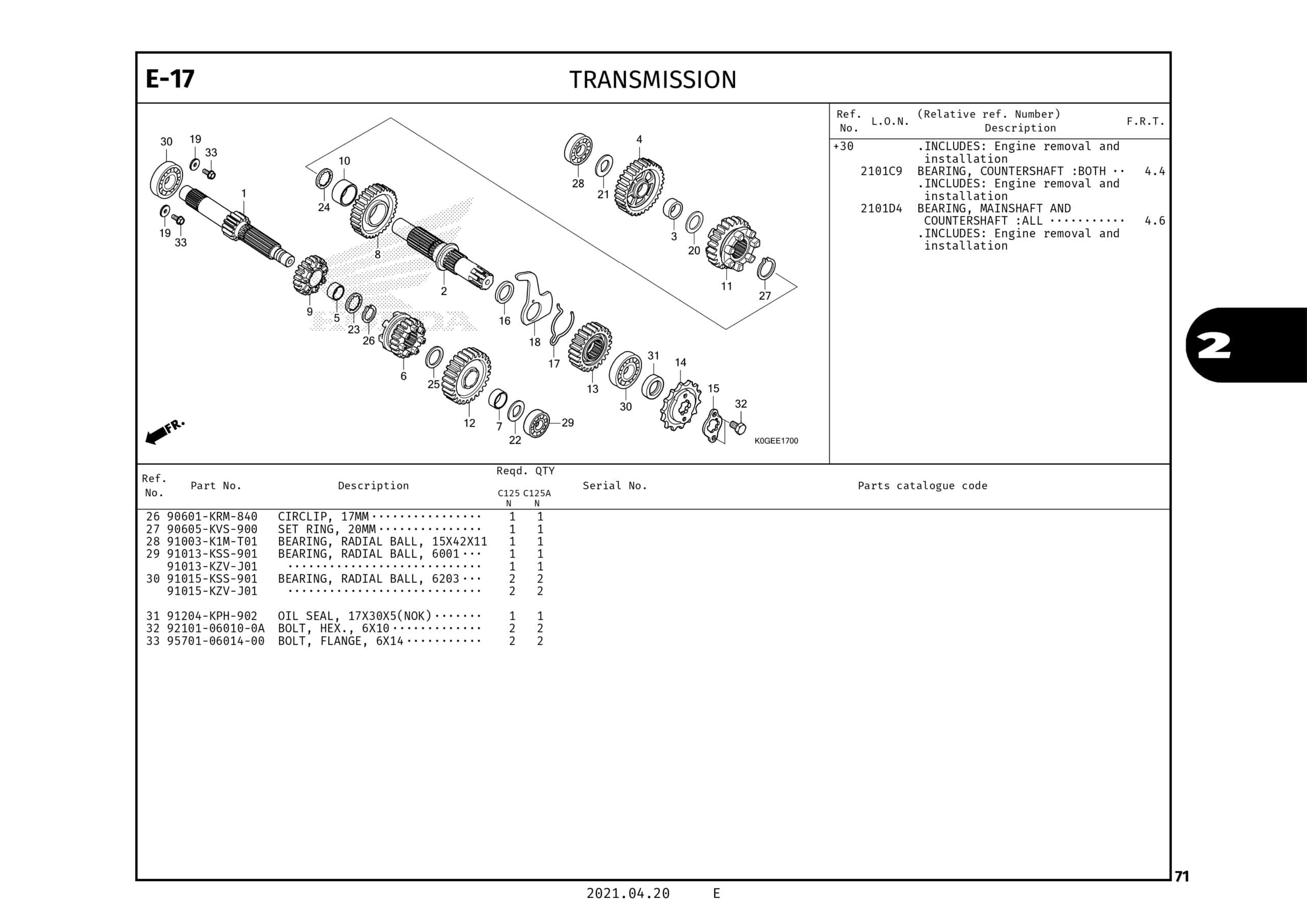

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SHAFT MAIN 14T | 23211K0GT20 | - |
| 2 | SHAFT COUNTER | 23221K1MT00 | - |
| 3 | BUSH,15MM | 23415K0GT20 | - |
| 4 | GEAR C-1 35T | 23421K0GT20 | - |
| 5 | BUSH 17MM | 23422K0GT20 | - |
| 6 | GEAR M-2 20T | 23431K0GT20 | - |
| 7 | BUSH 12MM | 23432K1MT00 | - |
| 8 | GEAR C-2 31T | 23441K0GT20 | - |
| 9 | GEAR M-3 20T | 23451K0GT20 | - |
| 10 | BUSH 20MM | 23452K1MT00 | - |
| 11 | GEAR C-3 23T | 23461K0GT20 | - |
| 12 | GEAR M-4 26T | 23471K0GT20 | - |
| 13 | GEAR C-4 24T | 23481K0GT20 | - |
| 14 | SPROCKET DRIVE 14 | 23800K0G900 | - |
| 15 | PLATE FIXING | 23802GN5911 |
|
| 16 | COLLAR LOCK PLATE | 23911K1MT00 | - |
| 17 | SPG CHANGE FRICTION | 24305K1MT00 | - |
| 18 | PLATE DRUM LOCK | 24306K1MT00 | - |
| 19 | WASHER 6.2X19X2.3 | 90407KWW740 |
|
| 20 | WASHER THRUST 15MM | 90412187000 |
|
| 21 | WASHER, SPECIAL, 15MM | 90412K56N00 |
|
| 22 | WASHER SPECIAL 12MM | 90452KGH900 |
|
| 23 | WASHER, SPLINE, 17X23X1.6 | 90452KRM840 |
|
| 24 | WASHER SPLINE 20MM | 90453KRM840 | - |
| 25 | WASHER,THRUST | 90459107000 | - |
| 26 | CIR CLIP 17M/M | 90601KRM840 |
|
| 27 | SET RING 20MM | 90605KVS900 |
|
| 28 | BRG BALL RADIAL15 | 91003K1MT01 | - |
| 29 | BRG BALL RADIAL 6201 | 91013KSS901 | - |
| 29 | BRG BALL RADIAL 6 | 91013KZVJ01 | - |
| 30 | BRG BALL RADIAL 6201 | 91015KSS901 | - |
| 30 | BRG BALL RADIAL 6 | 91015KZVJ01 | - |
| 31 | OIL SEAL 17X30X5 X37X20 | 91204KPH902 |
|
| 32 | BOLT, HEX., 6X10 | 92101060100A |
|
| 33 | BOLT FLANGE 6X14 | 957010601400 |
|
