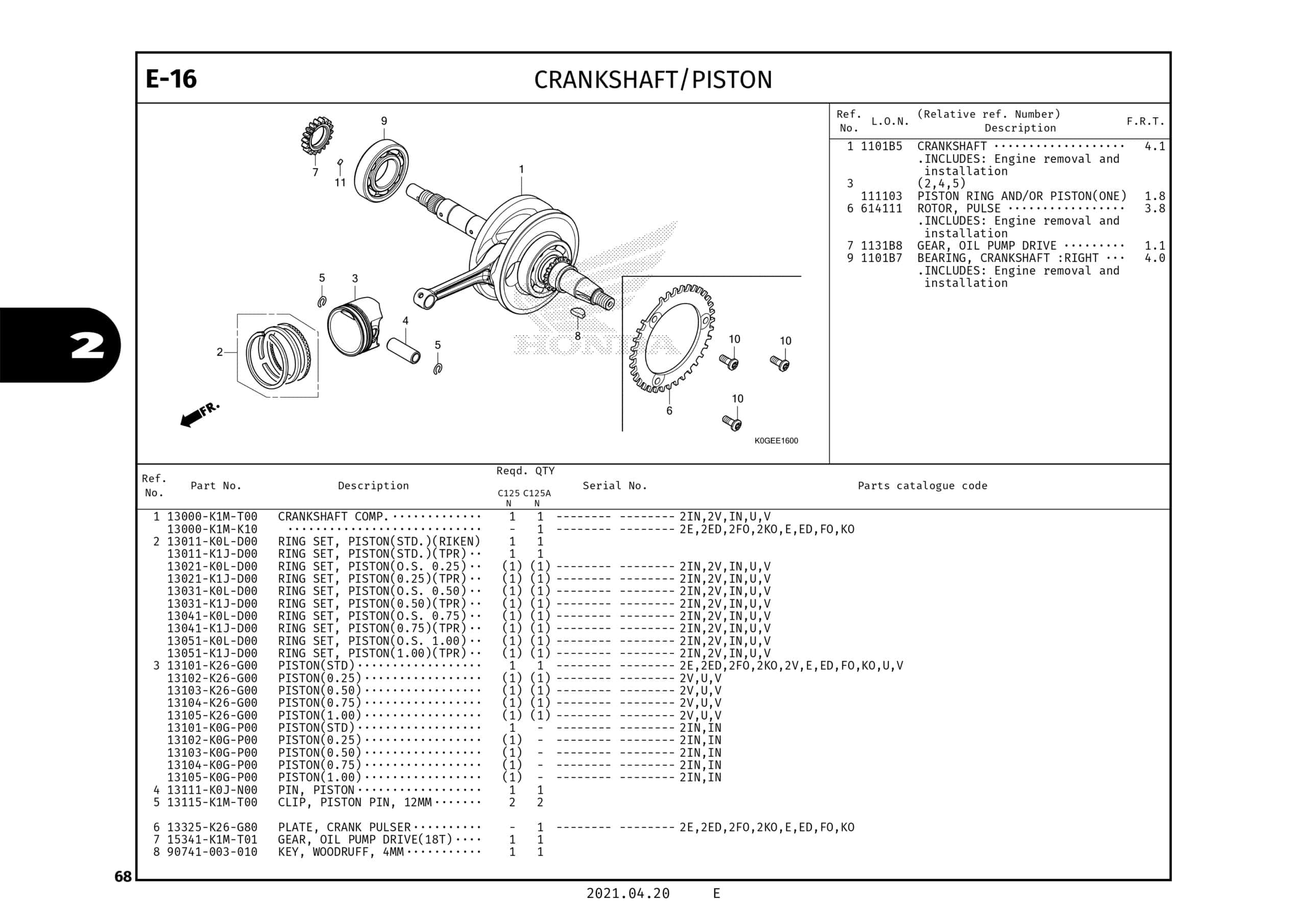

E-16 Crankshaft Piston – Katalog Honda Super Cub 125

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 CRANK SHAFT COMP 13000K1MT00 -
1 CRANK SHAFT COMP 13000K1MK10 -
2 RING SET PISTON 13011K0LD00 -
2 RING SET PISTON 13011K1JD00 -
2 RING SET PISTON O(0.25) 13021K0LD00 -
2 RING SET PISTON O(0.25) 13021K1JD00 -
2 RING SET PISTON O(0.50) 13031K0LD00 -
2 RING SET PISTON O(0.50) 13031K1JD00 -
2 RING SET PISTON O(0.75) 13041K0LD00 -
2 RING SET PISTON O(0.75) 13041K1JD00 -
2 RING SET PISTON O(1.00) 13051K0LD00 -
2 RING SET PISTON O(1.00) 13051K1JD00 -
3 PISTON 13101K26G00 -
3 PISTON OS 0.25 13102K26G00 -
3 PISTON OS 0.50 13103K26G00 -
3 PISTON OS 0.75 13104K26G00 -
3 PISTON OS 1.00 13105K26G00 -
3 PISTON 13101K0GP00 -
3 PISTON OS 0.25 13102K0GP00 -
3 PISTON OS 0.50 13103K0GP00 -
3 PISTON OS 0.75 13104K0GP00 -
3 PISTON OS 1.00 13105K0GP00 -
4 PIN,PISTON 13111K0JN00 PIN,PISTON
5 CLIP PISTON PIN 1 13115K1MT00 -
6 13325K26G80 13325K26G80 -
7 GEAR OIL PUMP DRIV 15341K1MT01 -
8 KEYWOODRUFF 4MM 90741003010 KEYWOODRUFF 4MM
9 BRG R BALL RADIAL 91001K1MT01 -
9 BRG R BALL RADIAL 91001K1MT02 -
10 90003K26G80 90003K26G80 -
11 PIN DOWEL,3X5 9430303050 PIN DOWEL,3X5
