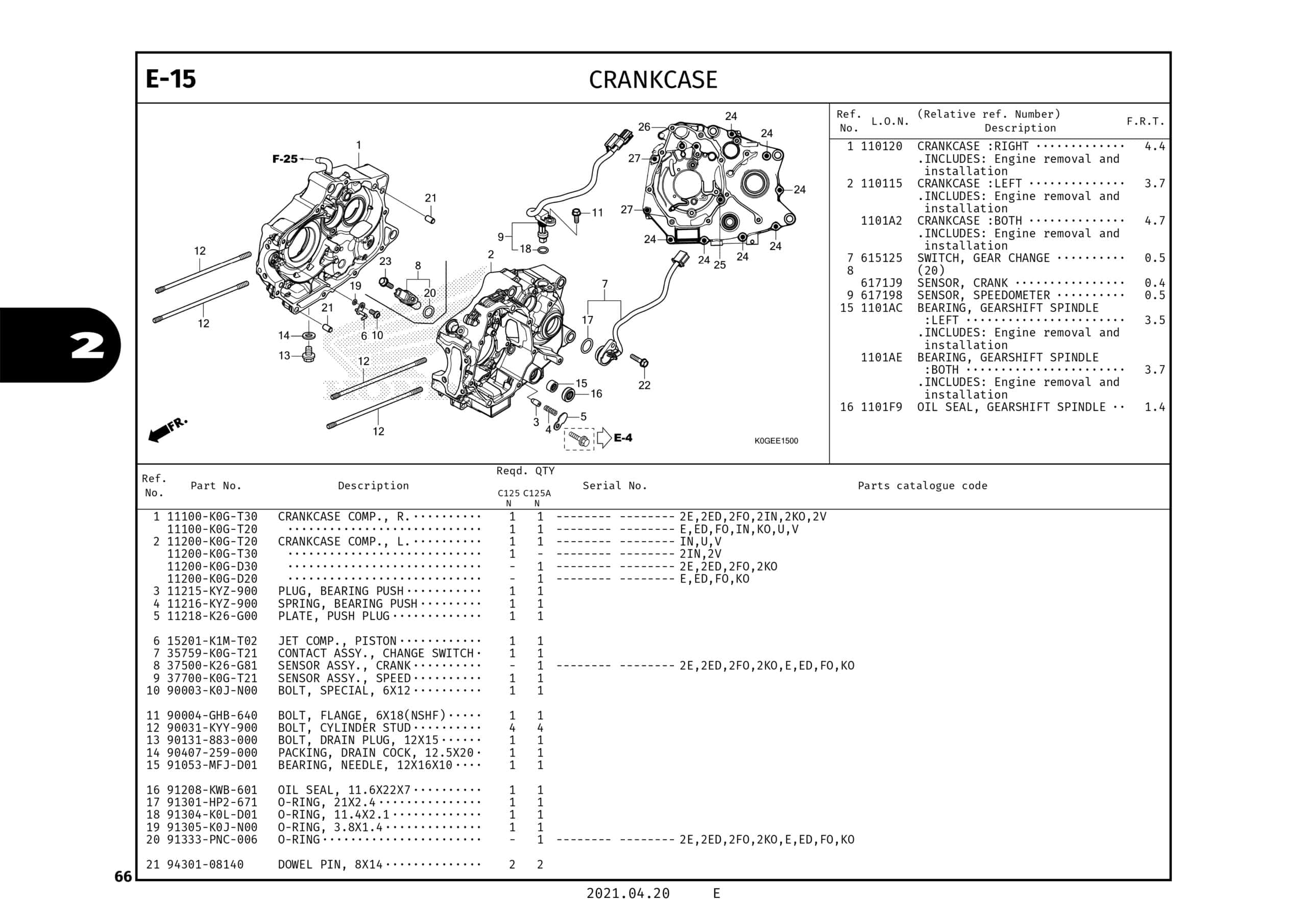

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CRANK CASE COMP,R | 11100K0GT30 | - |
| 1 | CRANK CASE COMP R | 11100K0GT20 | - |
| 2 | CRANK CASE COMP L | 11200K0GT20 | - |
| 2 | CRANK CASE COMP,L | 11200K0GT30 | - |
| 2 | 11200K0GD30 | 11200K0GD30 | - |
| 2 | 11200K0GD20 | 11200K0GD20 | - |
| 3 | PLUG BEARING PUSH | 11215KYZ900 |
|
| 4 | SPRING BEARING PUSH | 11216KYZ900 |
|
| 5 | PLATE PUSH PLUG | 11218K26G00 | - |
| 6 | JET COMP PISTON | 15201K1MT02 | - |
| 7 | CONTACT ASSY CHAN | 35759K0GT21 | - |
| 8 | 37500K26G81 | 37500K26G81 | - |
| 9 | SENSOR ASSY SPEED | 37700K0GT21 | - |
| 10 | BOLT,SPL 6X12 | 90003K0JN00 |
|
| 11 | BOLT FLANGE NSHF 6X18 | 90004GHB640 |
|
| 12 | BOLT STUD CYLN | 90031KYY900 | - |
| 13 | BOLT DRAIN PLUG 12X15 | 90131883000 |
|
| 14 | PACKING COCK | 90407259000 |
|
| 15 | BEARING, NEEDLE, 12X16X10 LBL | 91053MFJD01 |
|
| 16 | OIL SEAL, 11.6X22X7 | 91208KWB601 |
|
| 17 | O-RING 21X2.4 | 91301HP2671 |
|
| 18 | O-RING,11.4X2.1 | 91304K0LD01 |
|
| 19 | O-RING,3.8X1.4 | 91305K0JN00 |
|
| 20 | O-RING | 91333PNC006 | - |
| 21 | PIN DOWEL 8X14 | 9430108140 |
|
| 22 | BOLT FLANGE 6X18 | 957010601801 |
|
| 23 | BOLT FLANGE 6X18 | 957010601801 |
|
| 24 | BOLT FLANGE 6X40 | 960010604000 |
|
| 25 | BOLT FLANGE 6X50 | 960010605000 |
|
| 26 | BOLT FLANGE SH 6X60 | 960010606001 |
|
| 27 | BOLT FLANGE 6X70 | 960010607000 |
|
