E-13 Starter Motor – Katalog Honda Super Cub 125

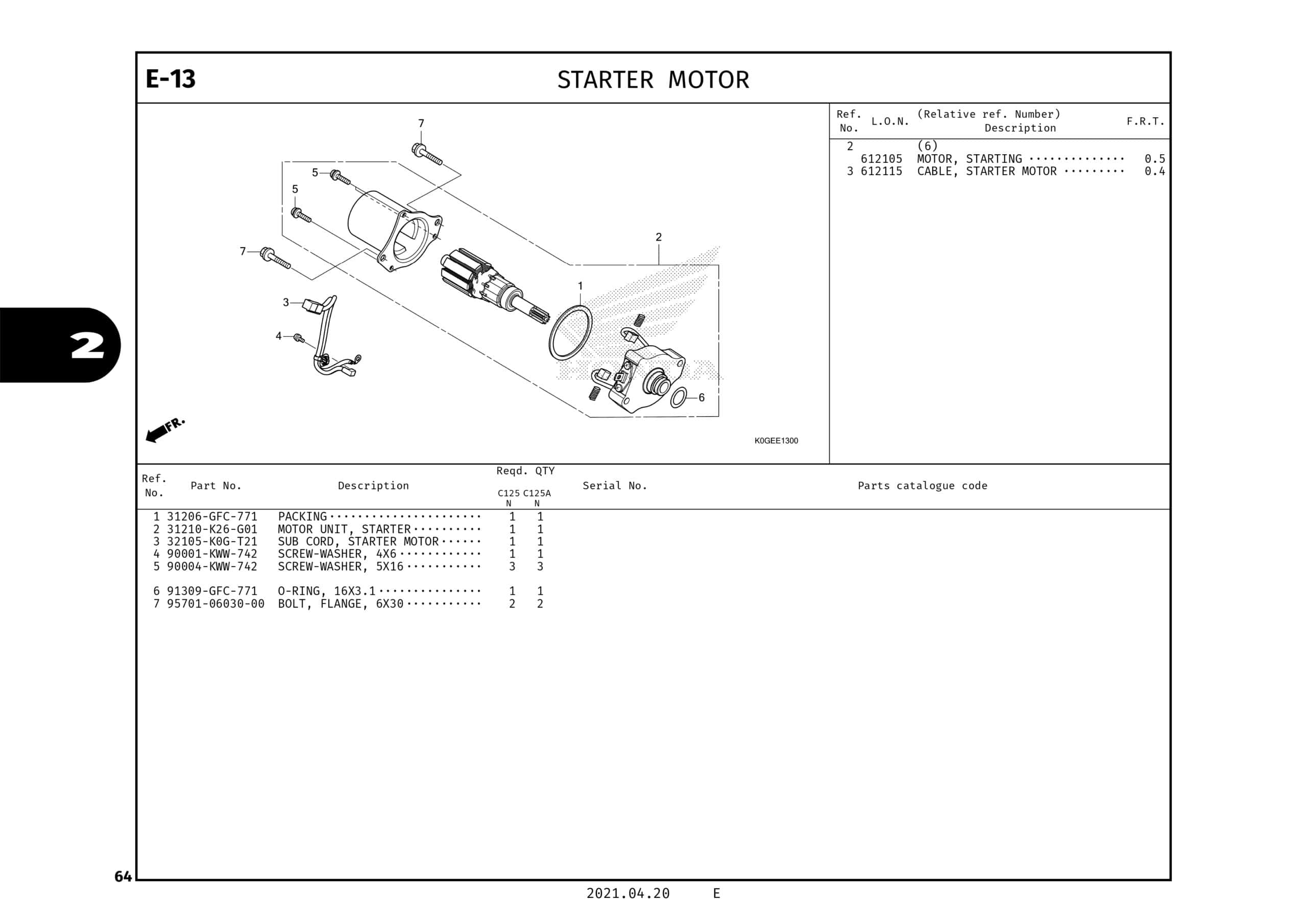

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 PACKING 31206GFC771 -
2 MOTOR UNIT START 31210K26G01 -
3 SUB CORD STARTER 32105K0GT21 -
4 SCREW-WASH. 4X6 90001KWW742 -
5 SCREW-WASH 5X16 90004KWW742 -
6 O RING 91309GFC771 -
7 BOLT FLANGE 6X30 957010603000 BOLT FLANGE 6X30
