E-10 Left Crankcase Cover – Katalog Honda Super Cub 125
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER,L CRANK CAS |
11341K0GT30 |
-
|
| 1 |
COVER L CRANKCASE |
11341K0GT20 |
-
|
| 2 |
CLAMPER A OIL TEMP SNSR |
11346KTR940 |
|
| 3 |
COVER COMP,L REAR |
11360K0GT30 |
-
|
| 3 |
COVER COMP L REAR |
11360K0GT20 |
-
|
| 4 |
GSKT L CRANKCASE |
11395K1MT02 |
-
|
| 5 |
BOLT FLANGE S-SHD |
90003K0GT20 |
-
|
| 6 |
BOLT FLANGE S-SHD |
90004K0GT20 |
-
|
| 7 |
CAP 14MM |
90084K0FT00 |
-
|
| 8 |
CAP 30MM |
90087K0FT00 |
-
|
| 9 |
O-RING 13.8X2.5 |
91308KVRC00 |
|
| 10 |
O-RING 30MM |
91356KWV000 |
|
| 11 |

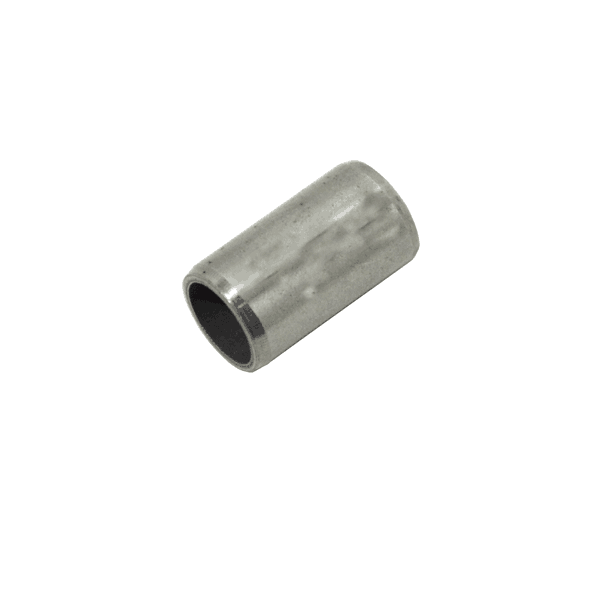

PIN DOWEL 8X14 |
9430108140 |
|
