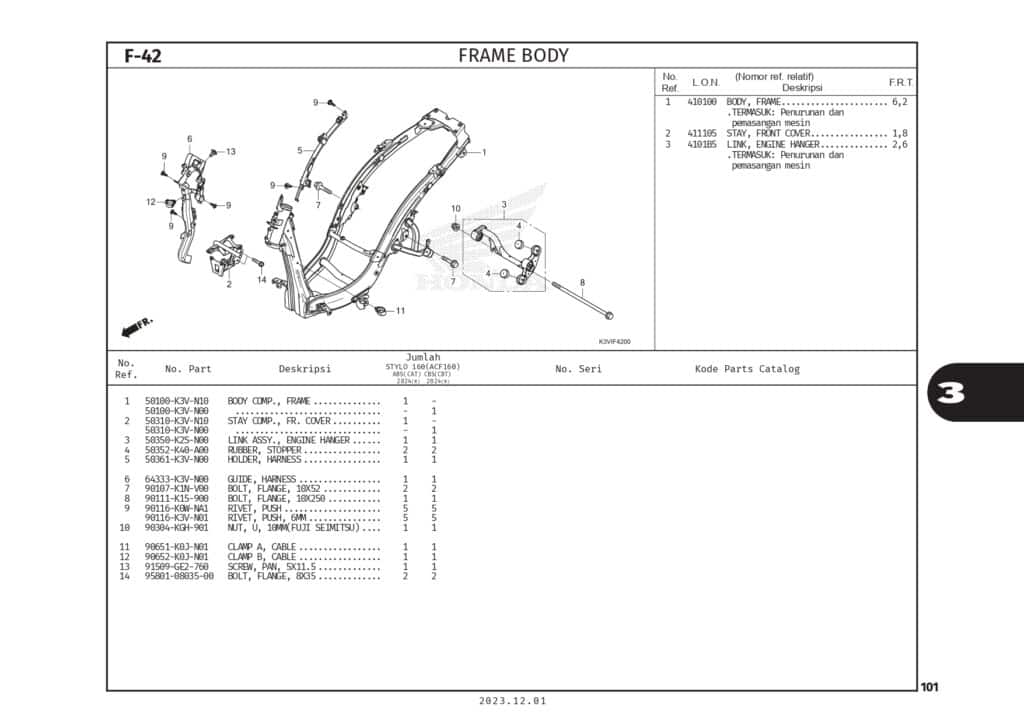

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FRAME BODY COMP | 50100K3VN10 | - |
| 1 | FRAME BODY COMP | 50100K3VN00 | - |
| 2 | STAY COMP,FR COVER | 50310K3VN10 |
|
| 2 | STAY COMP,FR COVER | 50310K3VN00 |
|
| 3 | LINK ASSY,ENG HANGER | 50350K2SN00 |
|
| 4 | RUBBER,STOPPER | 50352K40A00 |
|
| 5 | HOLDER,HARNESS | 50361K3VN00 |
|
| 6 | GUIDE,HARNESS | 64333K3VN00 |
|
| 7 | BOLT, FLANGE 10X52 | 90107K1NV00 |
|
| 8 | BOLT FLANGE 10X250 | 90111K15900 |
|
| 9 | RIVET,PUSH | 90116K0WNA1 |
|
| 9 | RIVET,PUSH 6MM | 90116K3VN01 |
|
| 10 | NUT U10MM | 90304KGH901 |
|
| 11 | CLAMP A,CABLE | 90651K0JN01 |
|
| 12 | CLAMP B,CABLE | 90652K0JN01 |
|
| 13 | SCREW PAN 5X11.5 | 91509GE2760 |
|
| 14 | BOLT,FLANGE 8X35 | 958010803500 |
|
