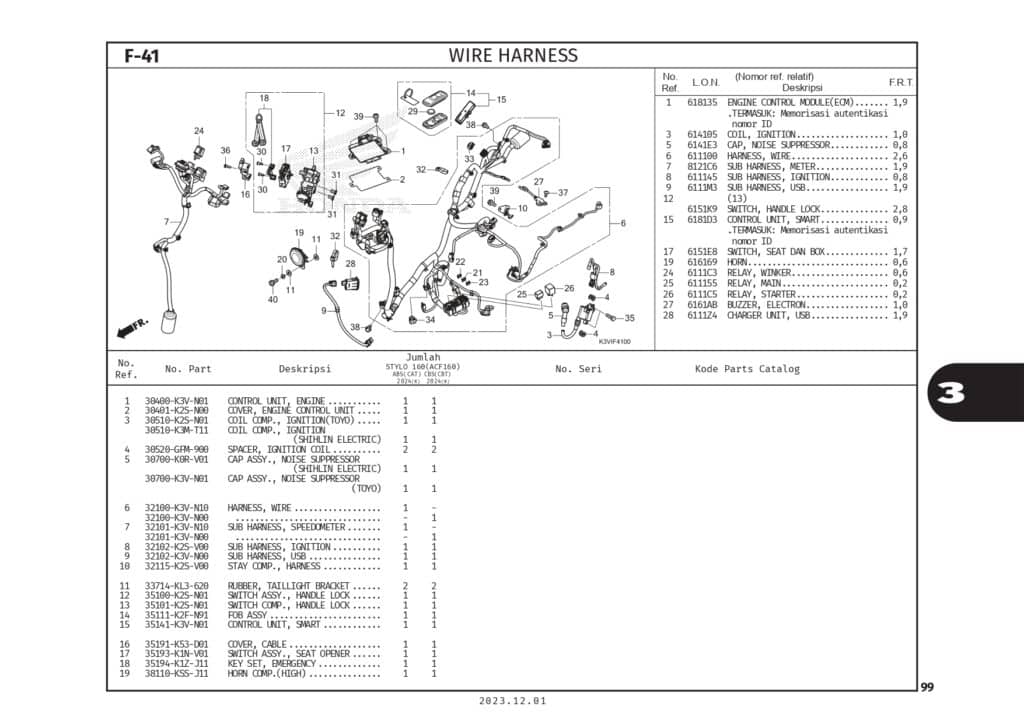

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | ENG CONTROL UNIT | 3400K3VN01 | - |
| 2 | COVER, ENG CONTL UNIT | 30401K2SN00 |
|
| 3 | COIL COMP,IGN(MP39) | 30510K2SN01 |
|
| 3 | 30510K3MT11 | 30510K3MT11 | - |
| 4 | SPACER IGN COIL | 30520GFM900 |
|
| 5 | CAP ASSY., NOISE SUPPRESSOR | 30700K0RV01 |
|
| 5 | CAP ASSY,NOISE SUPPRESSOR | 30700K3VN01 |
|
| 6 | HARNESS WIRE | 32100K3VN10 |
|
| 6 | HARNESS WIRE | 32100K3VN00 | - |
| 7 | SUB HARNESS,SPEEDOMETER | 32101K3VN10 |
|
| 7 | SUB HARNESS,SPEEDOMETER | 32101K3VN00 |
|
| 8 | SUB HARNESS,IGN | 32102K2SV00 |
|
| 9 | SUB HARNESS,USB | 32102K3VN00 |
|
| 10 | STAY COMP,HARNESS | 32115K2SV00 |
|
| 11 | RUBTAIL/LT BRKT. | 33714KL3620 |
|
| 12 | SWITCH ASSY,HNDL LOCK | 35100K2SN01 |
|
| 13 | SWITCH COMP,HNDL LOCK | 35101K2SN01 |
|
| 14 | FOB ASSY | 35111K2FN91 |
|
| 15 | SET,SMART CONTROL UNIT | 35141K3VN01 |
|
| 16 | COVER CABLE | 35191K53D01 |
|
| 17 | SW ASSY,SEAT OPENER | 35193K1NV01 |
|
| 18 | SET,EMERGENCY KEY | 35194K1ZJ11 |
|
| 19 | HORN COMP (HIGH) | 38110KSSJ11 | - |
| 20 | COLLAR, HORN SETTING | 38112K41N00 |
|
| 21 | FUSE, BLADE(7.5A) | 38221SNAA31 |
|
| 22 | FUSE, BLADE(15A) | 38221SNAA51 |
|
| 23 | BLADE FUSE,20A LOW-PROFILE | 38221SNAA61 |
|
| 24 | RELAY COMP,LED WIN | 38301KZZJ01 |
|
| 25 | RELAY COMP,MICROISO LOW HIGHT | 38501KVZ631 |
|
| 25 | RELAY COMP., POWER | 38501KWN901 |
|
| 26 | RELAY COMP,POWER | 38502K59A11 |
|
| 26 | RELAY COMP,POWER | 38502KWN901 |
|
| 27 | BUZZER ASSY | 38720K2SN01 |
|
| 28 | UNIT ASSY, USB CHARGER (TYPE-A) | 38940K2TV11 |
|
| 29 | BATTERY | 35148K78N10 |
|
| 30 | SCREW OPENER SET | 90104K53D01 |
|
| 31 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 32 | BAND, WIRE | 90652KT1771 |
|
| 33 | CLIP, COUPLER(DARK GRAY) | 91534SWA003 |
|
| 34 | DUMMY WPC 6P 025M | 91771MKKH11 |
|
| 35 | BOLT, HEX., 6X22 | 92101060224J |
|
| 36 | SCREW,TAPP 4X12 | 9390124320 |
|
| 37 | SCREW,TAPPING,5X12 | 9390325220 |
|
| 38 | BOLT FLANGE 6X12 | 957010601200 |
|
| 39 | BOLT FLANGE 6X14 | 957010601400 |
|
| 40 | BOLT FLANGE 6X16 | 957010601600 |
|
