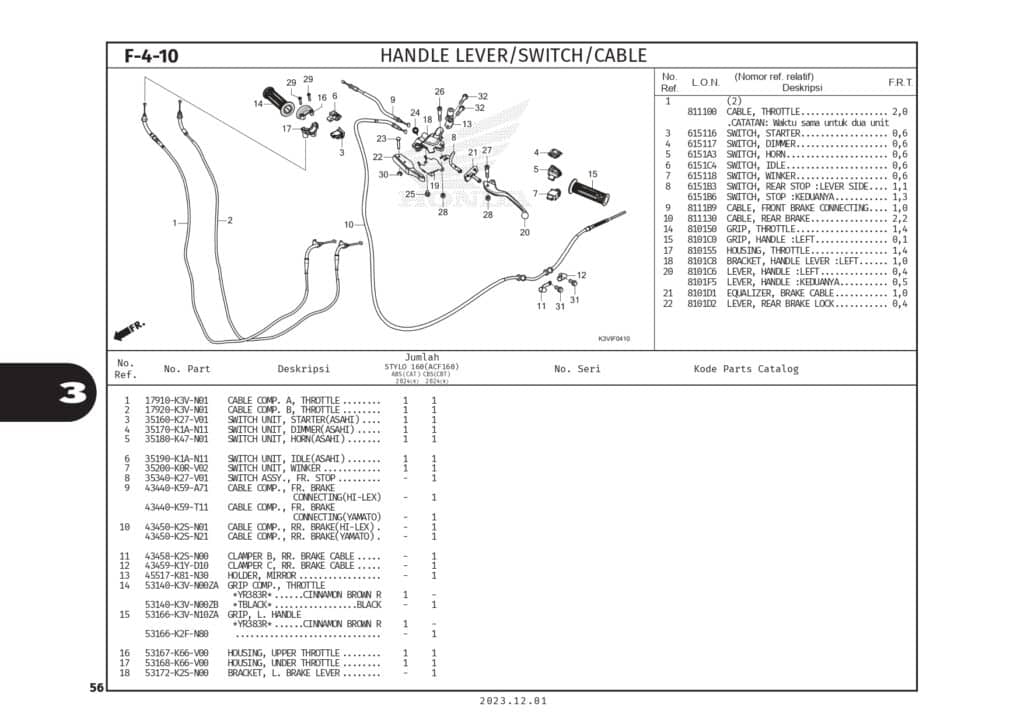

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CABLE COMP A,THROT | 17910K3VN01 | - |
| 2 | CABLE COMP B,THROT | 17920K3VN01 | - |
| 3 | SWITCH UNIT, STARTER | 35160K27V01 |
|
| 4 | SW UNIT,DIMMER | 35170K1AN11 |
|
| 5 | SWITCH UNIT, HORN | 35180K47N01 |
|
| 6 | SW UNIT,IDLE | 35190K1AN11 |
|
| 7 | SWITCH UNIT, WINKER | 35200K0RV02 | - |
| 8 | SW ASY FR STOP(WATER PROF) | 35340K27V01 |
|
| 9 | CABLE COMP,FR BRK CONN. | 43440K59A71 |
|
| 9 | 43440K59T11 | 43440K59T11 | - |
| 10 | CABLE COMP,RR BRK | 43450K2SN01 |
|
| 10 | 43450K2SN21 | 43450K2SN21 | - |
| 11 | CLAMPER B, RR BRK CABLE | 43458K2SN00 |
|
| 12 | CLAMPER C, RR BRK CABLE | 43459K1YD10 |
|
| 13 | HOLDER, MIRROR | 45517K81N30 |
|
| 14 | GRIP COMP,THROT (CN BR) | 53140K3VN00ZA |
|
| 14 | GRIP COMP,THROT | 53140K3VN00ZB |
|
| 15 | GRIP, L HANDLE (CN BR) | 53166K3VN10ZA |
|
| 15 | GRIP, L HANDLE | 53166K2FN80 |
|
| 16 | HOUSING UPPER THROTTLE | 53167K66V00 |
|
| 17 | HOUSING UNDER THROTTLE | 53168K66V00 |
|
| 18 | BRACKET,L BRAKE LEVER | 53172K2SN00 |
|
| 19 | COVER,L BRK LEVER BRKT | 53173K0JN00 |
|
| 20 | LEVER,L STRG HANDLE | 53178K1AN00 |
|
| 21 | EQUALIZER COMP | 53184K59A70 |
|
| 22 | LEVER COMP,BRAKE LOCK | 53185K1AN00 |
|
| 23 | PIN BRAKE LOCK LEVER | 53186K81N30 |
|
| 24 | SPRING BRAKE LOCK ARM RETURN | 53188K81N30 |
|
| 25 | SCREW PAN 5X8 | 90104K81N30 |
|
| 26 | SCREW,HNDL LEVER PIVOT | 90115K1AN00 |
|
| 27 | SCREW,HNDL LEVERPIVOT | 90115KWN900 |
|
| 28 | NUT,U,5MM | 90302KVBT01 |
|
| 29 | SCREW, PAN, 5X20 | 93500050200A |
|
| 30 | E-RING 3 MM | 9454003010 |
|
| 31 | BOLT FLANGE SH 6X12 | 960010601200 |
|
| 32 | BOLT FLANGE 6X22 | 960010602200 |
|
