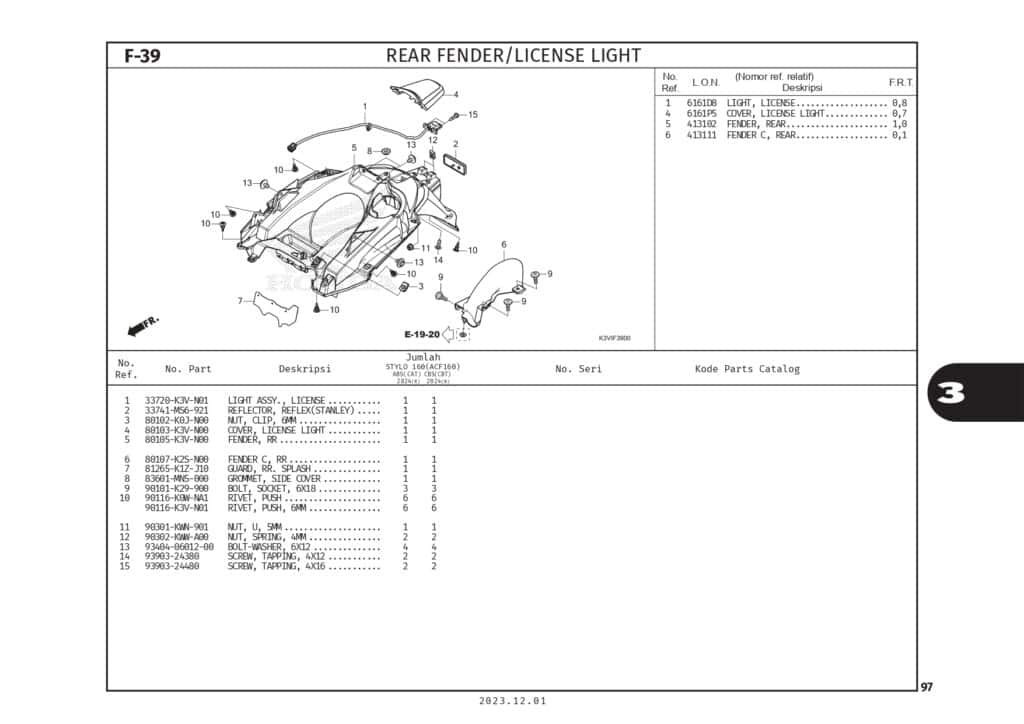

F-39 Rear Fender License Light – Katalog Suku Cadang Honda Stylo 160

#	Informasi Produk	Visual
1	LIGHT ASSY,LICENSE Part Number : `3720K3VN01`
2	REFLECTOR REFLEX(ST) Part Number : `33741MS6921`
3	NUT,CLIP 6MM Part Number : `80102K0JN00`
4	COVER,LICENSE LIGHT Part Number : `80103K3VN00`
5	FENDER,RR Part Number : `80105K3VN00`
6	FENDER C, RR Part Number : `80107K2SN00`
7	GUARD,SPLASH RR Part Number : `81265K1ZJ10`
8	GROMMET SIDE COVER Part Number : `83601MN5000`
9	BOLT SOCKET 6X18 Part Number : `90101K29900`
10	RIVET,PUSH Part Number : `90116K0WNA1`
10	RIVET,PUSH 6MM Part Number : `90116K3VN01`
11	NUT, U, 5MM Part Number : `90301KWN901`
12	NUT SPRING 4MM Part Number : `90302KWWA00`
13	BOLT WASHER 6X12 Part Number : `934040601200`
14	SCREW TAPPING 4X12 Part Number : `9390324380`
15	SCREW, TAPPING, 4X16 Part Number : `9390324480`
