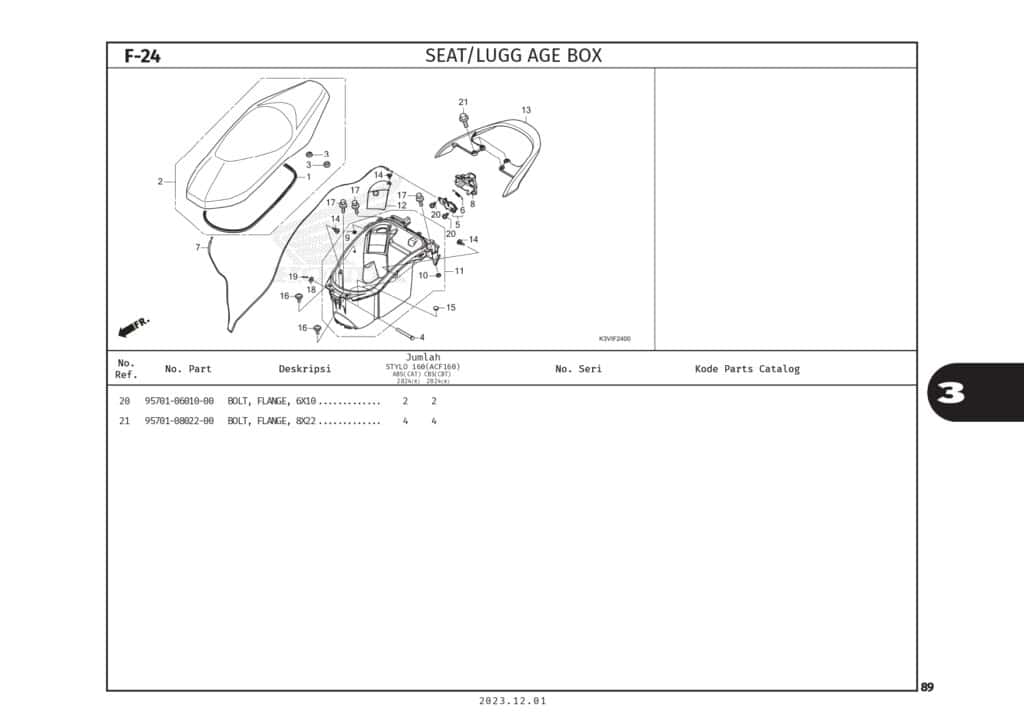

F-24 Seat Luggage Box – Katalog Suku Cadang Honda Stylo 160

#	Informasi Produk	Visual
1	RUBBER,SEAL Part Number : `77115K3VN00`
2	SEAT COMP,DOUBLE TYPE 2 Part Number : `77200K3VN10ZA`
2	SEAT COMP,DOUBLE TYPE 1 Part Number : `77200K3VN00ZA`
3	RUBR.C SEAT SET Part Number : `77215KW7900`
4	PIN SEAT HINGE Part Number : `77215KZL930`
5	LOCK COMP., SEAT Part Number : `77230K59A10`
6	SPRING SEAT LOCK Part Number : `77234KYZ900`
7	CABLE COMP,SEAT LOCK Part Number : `77240K3VN01`
8	COVER,SEAT CATCH Part Number : `77244K3VN00`
9	COLLAR BOX LUGGAGE Part Number : `81201K81N00`
10	COLLAR BOX LUGGAGE Part Number : `81202K81N00`
11	BOX,LUGGAGE Part Number : `81250K3VN00`
12	LID, LUGGAGE BOX Part Number : `81253K2SN00`
13	RAIL, RR GRAB (OM SL MT) Part Number : `84100K3VN00ZA`
13	RAIL, RR GRAB (MA AX GY) Part Number : `84100K3VN00ZB`
14	RIVET,PUSH Part Number : `90116K0WNA1`
14	RIVET,PUSH 6MM Part Number : `90116K3VN01`
15	PLUG HOLE Part Number : `90656GCC000ZE`
16	SCREW PAN 5X11.5 Part Number : `91509GE2760`
17	BOLT WASHER 6X18 Part Number : `934040601800`
18	WASHER PLAIN 8MM Part Number : `9410108000`
19	PIN COTTER 16X15 Part Number : `9420116150`
20	BOLT FLANGE 6X10 Part Number : `957010601000`
21	BOLT FLANGE 8X22 Part Number : `957010802200`
