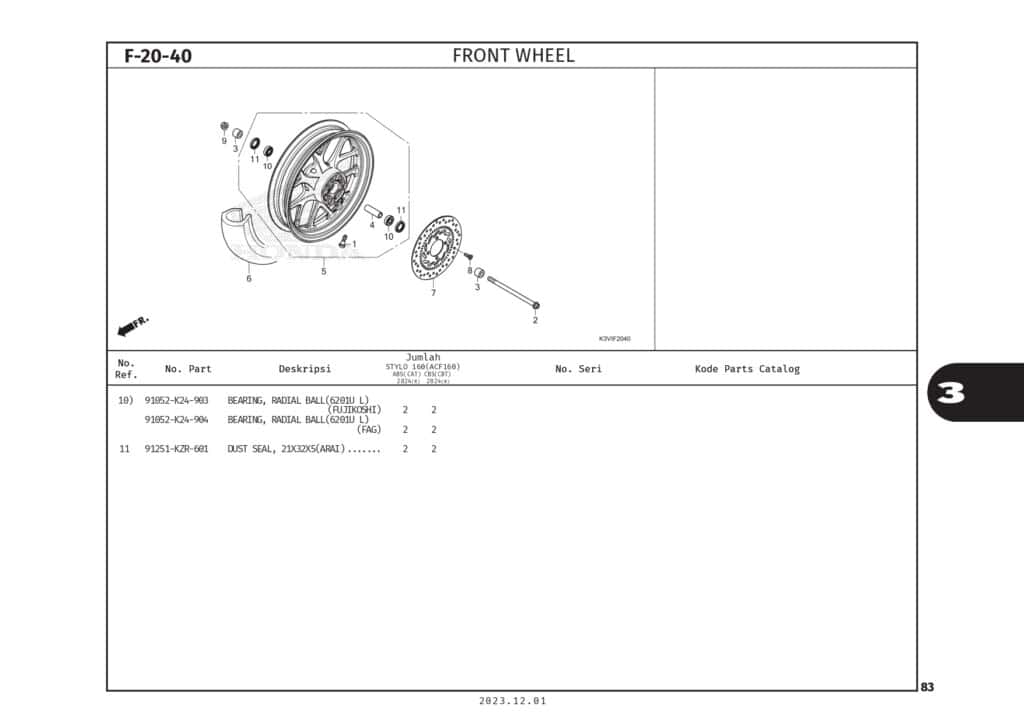

F-20-40 Front Wheel – Katalog Suku Cadang Honda Stylo 160

#	Informasi Produk	Visual
1	VALVE,RIM (INOUE) Part Number : `42753GM9743`
1	VALVE,RIM(PACIFIC) Part Number : `42753K2SN01`
1	VALVE RIM (PIRELLI) Part Number : `42753KBS901`
1	VALVE,RIM(TRITON) Part Number : `42753KWF901`
2	AXLE,FR WHEEL Part Number : `44301K0WN00`
3	COLLAR,FR WHEEL SIDE Part Number : `44311KWN900`
4	COLLAR FR AXLE DISTANCE Part Number : `44620K15920`
5	WHEEL SUB ASSY,FRONT (MT GR BR) Part Number : `44650K3VN00ZA`
5	WHEEL SUB ASSY,FRONT (MA AX GY) Part Number : `44650K3VN00ZB`
5	WHEEL SUB ASSY,FRONT (MT GR BR) Part Number : `44601K3VN01MBR`
5	WHEEL SUB ASSY,FRONT (MA AX GY) Part Number : `44601K3VN01MAG`
6	44711K3VN00 Part Number : `44711K3VN00`
6	TIRE,FR(IRC) Part Number : `44711K3VN01`
7	DISK, FR BRAKE Part Number : `45351K2SN11`
7	DISK,FR BRAKE Part Number : `45351K0JN01`
7	DISK,FR BRAKE Part Number : `45351K2SN01`
7	DISK,FR BRAKE Part Number : `45351K93N01`
7	DISK FR BRAKE Part Number : `45351KVBS02`
8	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
9	90306K66V01 Part Number : `90306K66V01`
9	NUT,U,12MM Part Number : `90306KGH901`
10	BRG BALL RADIAL 6201U L Part Number : `91052K03N41`
10	BRG,BALL RADIAL 6201U L Part Number : `91052K24903`
10	BEARING RADIAL BALL(6201U L) Part Number : `91052K24904`
11	DUST SEAL, 21X32X5 Part Number : `91251KZR601`
