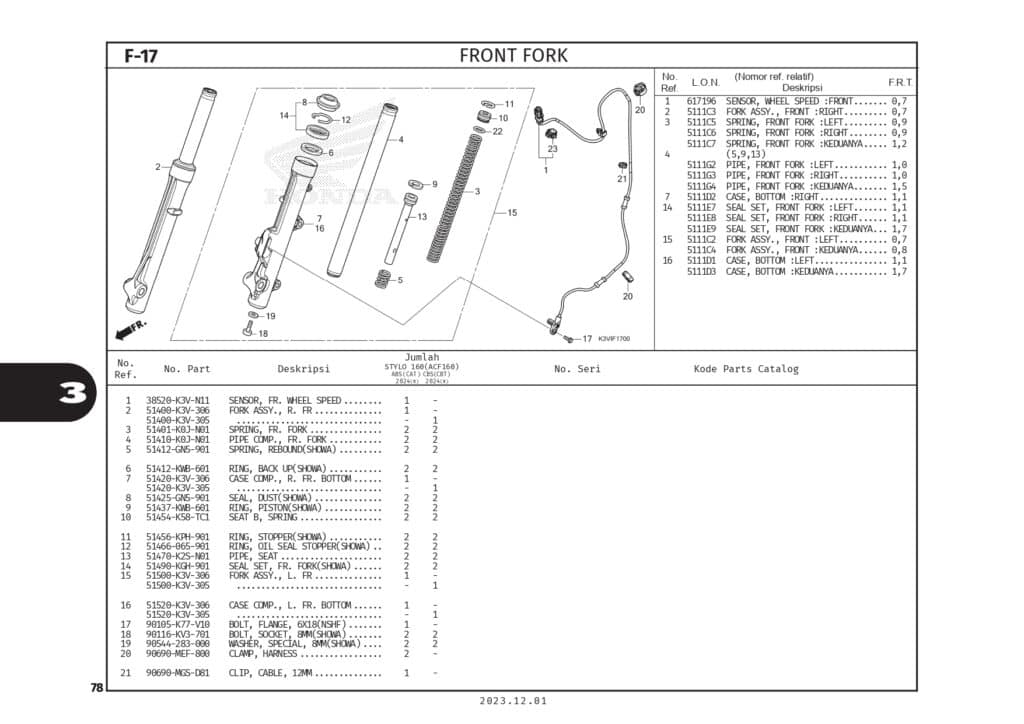

F-17 Front Fork – Katalog Suku Cadang Honda Stylo 160

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 SENSOR,WHEEL SPD FR 38520K3VN11 SENSOR,WHEEL SPD FR
2 FORK ASSY,R FRONT 51400K3V306 FORK ASSY,R FRONT
2 FORK ASSY,R FRONT 51400K3V305 FORK ASSY,R FRONT
3 SPRING,FR FORK 51401K0JN01 SPRING,FR FORK
4 PIPE COMP,FR FORK 51410K0JN01 PIPE COMP,FR FORK
5 SPG REBOUND 51412GN5901 SPG REBOUND
6 RING BACK UP 51412KWB601 RING BACK UP
7 CASE COMP, R FR BOTTOM 51420K3V306 CASE COMP, R FR BOTTOM
7 CASE COMP, R FR BOTTOM 51420K3V305 CASE COMP, R FR BOTTOM
8 DUST SEAL FR FORK 51425GN5901 DUST SEAL FR FORK
9 RING PISTON 51437KWB601 RING PISTON
10 SEAT B,SPRING 51454K58TC1 SEAT B,SPRING
11 RIMG,STOPPER 51456KPH901 RIMG,STOPPER
12 RING OIL SEAL 51466065901 RING OIL SEAL
13 PIPE, SEAT 51470K2SN01 PIPE, SEAT
14 SEAL SET FR FORK 51490KGH901 SEAL SET FR FORK
14 SEAL SET FR FORK 51490KGH902 SEAL SET FR FORK
15 FORK ASSY,L FRONT 51500K3V306 FORK ASSY,L FRONT
15 FORK ASSY,L FRONT 51500K3V305 FORK ASSY,L FRONT
16 CASE COMP,L FR BOTTOM 51520K3V306 CASE COMP,L FR BOTTOM
16 CASE COMP, L FR BOTTOM 51520K3V305 CASE COMP, L FR BOTTOM
17 BOLT FLANGE NSHF 90105K77V10 BOLT FLANGE NSHF
18 BOLT,SOCKET 8MM 90116KV3701 BOLT,SOCKET 8MM
19 WASHER SPECIAL (8MM) 90544283000 WASHER SPECIAL (8MM)
20 CLAMP HARNESS 90690MEF800 CLAMP HARNESS
21 CLIP, CABLE, 12MM 90690MGSD81 CLIP, CABLE, 12MM
22 O-RING,FR FORK 91256166003 O-RING,FR FORK
23 CLIP HARN 91506SZH003 -
