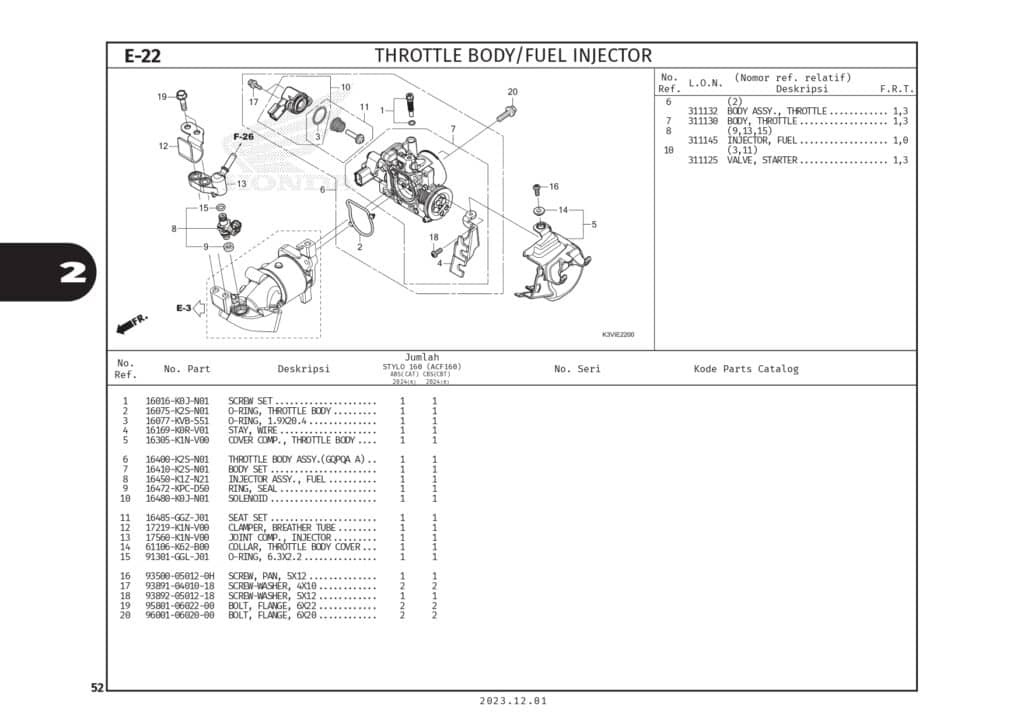

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SCREW SET | 16016K0JN01 |
|
| 2 | O-RING THROTTLEBODY | 16075K2SN01 |
|
| 3 | O-RING 20,4X1,9 | 16077KVBS51 |
|
| 4 | STAY, WIRE | 16169K0RV01 |
|
| 5 | COVER COMP,THROTTLEBODY | 16305K1NV00 |
|
| 6 | THROTTLEBODY ASSY | 16400K2SN01 |
|
| 7 | BODY SET | 16410K2SN01 |
|
| 8 | INJECTOR ASSY,FUEL | 16450K1ZN21 |
|
| 9 | RING, SEAL | 16472KPCD50 |
|
| 10 | SOLENOID SET | 16480K0JN01 |
|
| 11 | SEAT SET | 16485GGZJ01 |
|
| 12 | CLAMPER,TUBE BREATHER | 17219K1NV00 |
|
| 13 | JOINT COMP,INJECTOR | 17560K1NV00 |
|
| 14 | COLLAR,THROTTLE BODY COVER | 61106K62B00 |
|
| 15 | O-RING, 6.3X2.2 | 91301GGLJ01 |
|
| 16 | SCREW PAN 5X12 | 93500050120H |
|
| 17 | SCREW-WASHER 4X10 | 938910401018 |
|
| 18 | SCREW WASHER 5X12 | 938920501218 |
|
| 19 | BOLT FLANGE 6X22 | 957010602200 |
|
| 20 | BOLT FLANGE 6X20 | 960010602000 |
|
