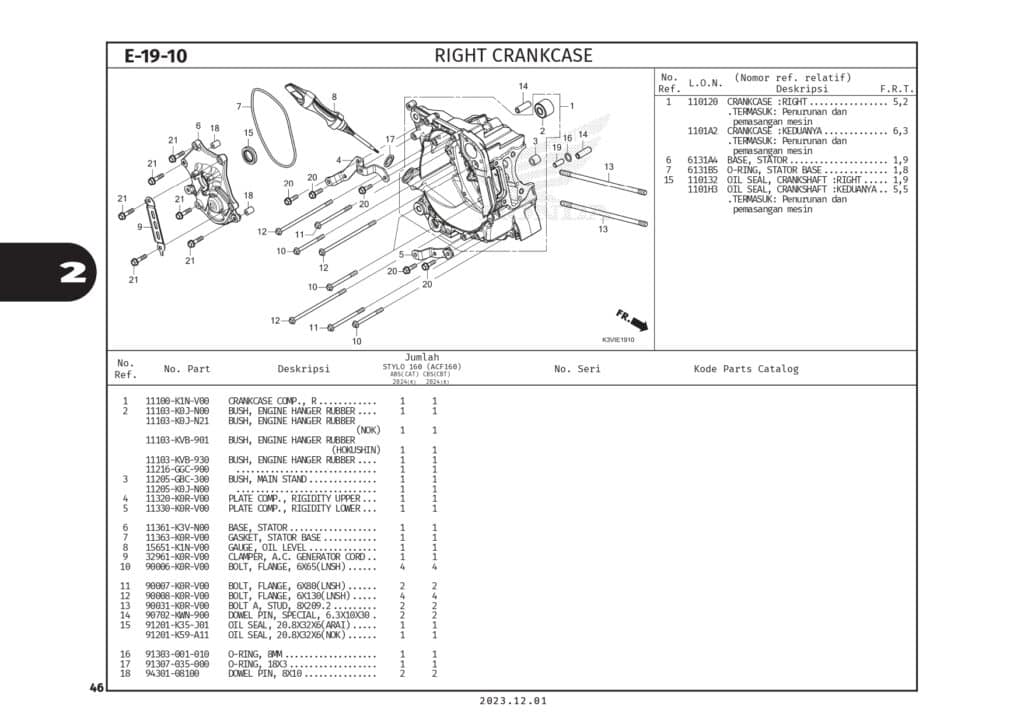

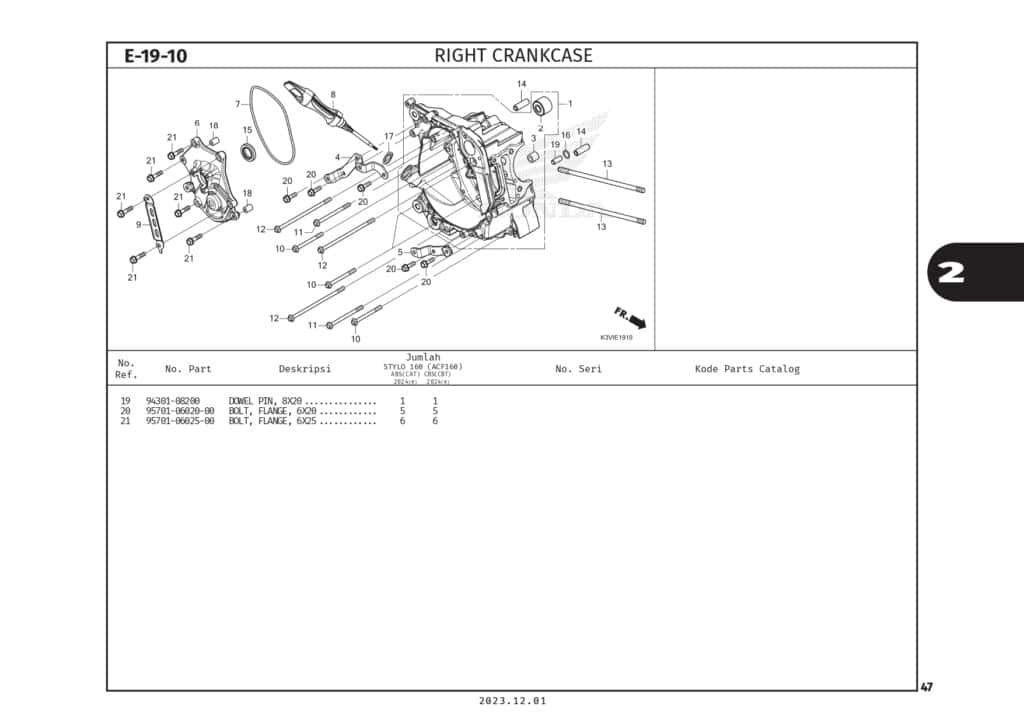

E-19-10 Right Crankcase – Katalog Suku Cadang Honda Stylo 160

#	Informasi Produk	Visual
1	CRANK CASE COMP,RIGHT Part Number : `11100K1NV00`
2	RUBBER BUSH,ENGINE HANGER Part Number : `11103K0JN00`
2	RUBBER BUSH,ENGINE HANGER Part Number : `11103K0JN21`
2	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
2	RUB.BUSH,ENG. HANGER Part Number : `11216GGC900`
3	BUSH M STAND Part Number : `11205GBC300`
3	BUSH,M STAND Part Number : `11205K0JN00`
4	PLATE COMP., RIGIDITY UPPER Part Number : `11320K0RV00`
5	PLATE COMP., RIGIDITY LOWER Part Number : `11330K0RV00`
6	BASE,STATOR Part Number : `11361K3VN00`
7	GASKET, STATOR BASE Part Number : `11363K0RV00`
8	GAUGE,OIL LEVEL Part Number : `15651K1NV00`
9	CLAMPER, A.C. GENERATOR CORD Part Number : `32961K0RV00`
10	BOLT, FLANGE, 6X65(LNSH) Part Number : `90006K0RV00`
11	BOLT, FLANGE, 6X80(LNSH) Part Number : `90007K0RV00`
12	BOLT, FLANGE, 6X130(LNSH) Part Number : `90008K0RV00`
13	BOLT A, STUD, 8X209.2 Part Number : `90031K0RV00`
14	DOWEL PIN,SPL 6.3X10X30 Part Number : `90702KWN900`
15	OIL SEAL 20.8X32X6 Part Number : `91201K35J01`
15	OIL SEAL, 20.8X32X6 Part Number : `91201K59A11`
16	O-RING 8MM Part Number : `91303001010`
17	O-RING, 18X3 Part Number : `91307035000`
18	PIN DOWEL 8X10 Part Number : `9430108100`
19	DOWEL PIN, 8X20 Part Number : `9430108200`
20	BOLT FLANGE 6X20 Part Number : `957010602000`
21	BOLT FLANGE 6X25 Part Number : `957010602500`
