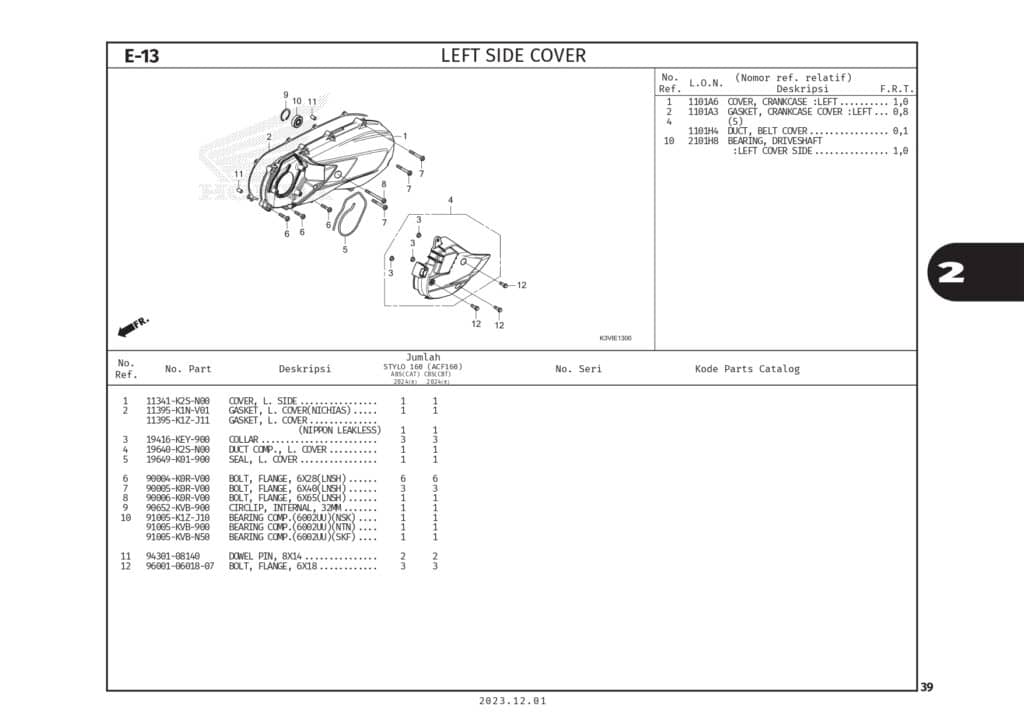

E-13 Left Side Cover – Katalog Suku Cadang Honda Stylo 160

#	Informasi Produk	Visual
1	COVER,L SIDE Part Number : `11341K2SN00`
2	GASKET,LEFT COVER Part Number : `11395K1NV01`
2	GASKET,LEFT COVER Part Number : `11395K1ZJ11`
3	COLLAR Part Number : `19416KEY900`
4	DUCT COMP,L COVER Part Number : `19640K2SN00`
5	SEAL L COVER DUCT Part Number : `19649K01900`
6	BOLT, FLANGE, 6X28(LNSH) Part Number : `90004K0RV00`
7	BOLT, FLANGE, 6X40(LNSH) Part Number : `90005K0RV00`
8	BOLT, FLANGE, 6X65(LNSH) Part Number : `90006K0RV00`
9	CIRCLIP IN.32 Part Number : `90652KVB900`
10	BRG,COMP DRIVE SHAFT Part Number : `91005K1ZJ10`
10	BRG,COMP DRIVE SHAFT Part Number : `91005KVBN50`
11	PIN DOWEL 8X14 Part Number : `9430108140`
12	BOLT,FLANGE 6X18 Part Number : `960010601807`
