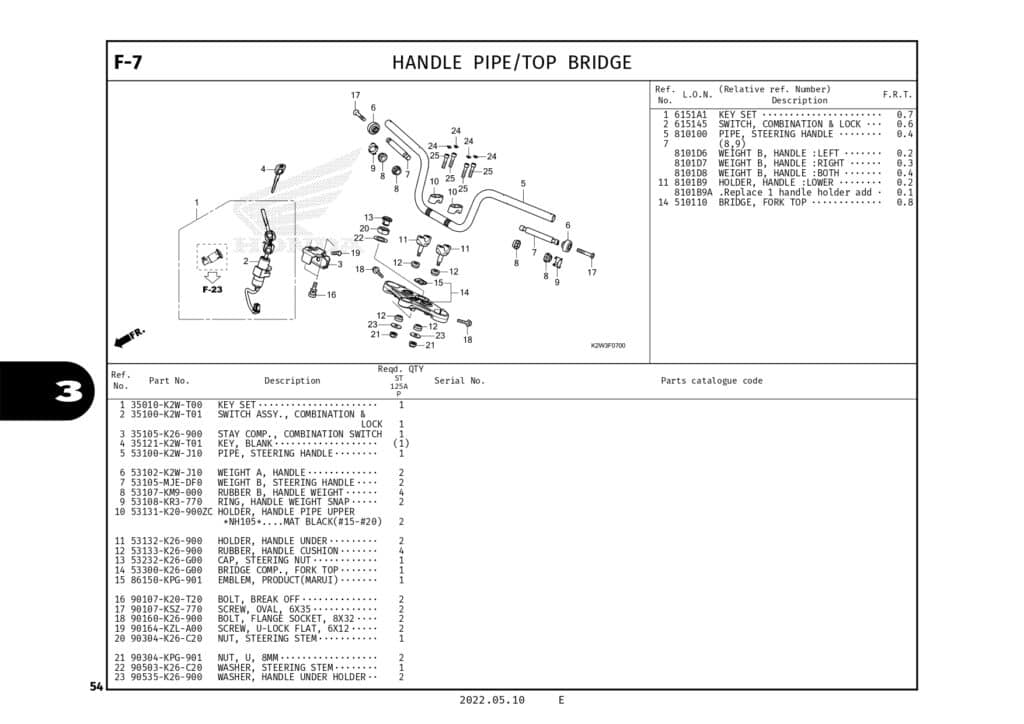

F-7 Handle Pipe Top Bridge – Katalog Suku Cadang Honda ST 125 DAX

#	Informasi Produk	Visual
1	KEY SET Part Number : `35010K2WT00`
2	SWITCH ASSY COMB Part Number : `35100K2WT01`
3	STAY COMP COMB SW Part Number : `35105K26900`
4	KEY BLANK Part Number : `35121K2WT01`
5	PIPE STRG HANDLE Part Number : `53100K2WJ10`
6	WEIGHT A HANDLE Part Number : `53102K2WJ10`
7	WEIGHT B STRG HND Part Number : `53105MJEDF0`
8	RUBBER B, HANDLE WEIGHT Part Number : `53107KM9000`
9	RING HDL WHT SNAP Part Number : `53108KR3770`
10	HOLDER (HANDLE PIPE) Part Number : `53131K20900ZC`
11	HOLDER HANDLE UNDER Part Number : `53132K26900`
12	RUBBER, HANDLE CUSHION Part Number : `53133K26900`
13	CAP STEM NUT Part Number : `53232K26G00`
14	BRIDGE COMP FORK Part Number : `53300K26G00`
15	EMBLEM, WING MARK Part Number : `86150KPG901`
16	BOLT BREAK OFF Part Number : `90107K20T20`
17	SCREW OVAL 6X35 Part Number : `90107KSZ770`
18	BOLT, FLANGE SOCKET, 8X32 Part Number : `90160K26900`
19	SCREW U-LOCK FLAT 6X12 Part Number : `90164KZLA00`
20	NUT STRG STEM Part Number : `90304K26C20`
21	NUT,U,8MM Part Number : `90304KPG901`
22	WASHER STRG STEM Part Number : `90503K26C20`
23	WASHER HNDL UNDER Part Number : `90535K26900`
24	CAP, SOCKET BOLT Part Number : `91456371770`
25	BOLT, SOCKET, 8X35 Part Number : `967000803500`
