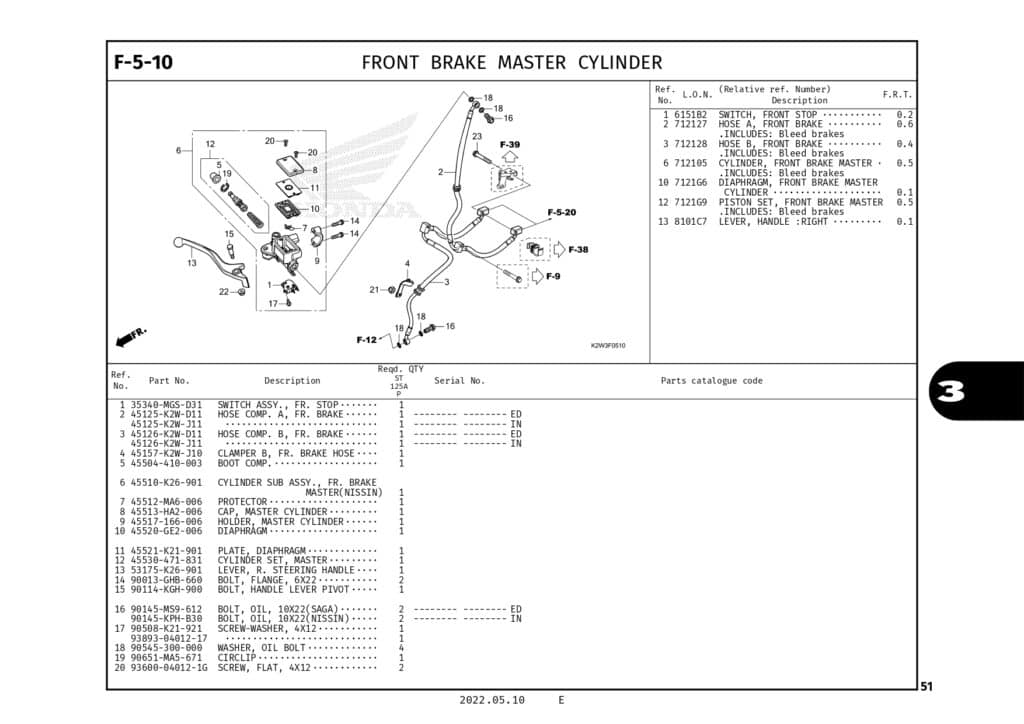

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SWITCH FR STOP ASSY | 35340MGSD31 |
|
| 2 | 45125K2WD11 | 45125K2WD11 | - |
| 2 | HOSE COMP A FR BR | 45125K2WJ11 | - |
| 3 | 45126K2WD11 | 45126K2WD11 | - |
| 3 | HOSE COMP B FR BR | 45126K2WJ11 | - |
| 4 | CLAMPER B FR BRAK | 45157K2WJ10 | - |
| 5 | BOOT COMP | 45504410003 |
|
| 6 | CYLINDER SUB ASSY., FR. BRAKE | 45510K26901 |
|
| 7 | PROTECTOR | 45512MA6006 |
|
| 8 | CAP,MASTER CYL | 45513HA2006 |
|
| 9 | HOLDER MASTER CYL | 45517166006 |
|
| 10 | DIAPHRAGM | 45520GE2006 |
|
| 11 | PLATE DIAPHRAGM | 45521K21901 |
|
| 12 | CYLINDER SET,MAS | 45530471831 |
|
| 13 | LEVER R STEERING HANDLE | 53175K26901 |
|
| 14 | BOLT FLANGE SH 6X | 90013GHB660 | - |
| 15 | BOLT HANDLE LEVER | 90114KGH900 |
|
| 16 | BOLT OIL 10X22 | 90145MS9612 | - |
| 16 | BOLT OIL, 10X22 (NISSIN) | 90145KPHB30 |
|
| 17 | SCREW&WASHER 4X12 | 90508K21921 |
|
| 17 | SCREW WASHER 4X12 | 938930401217 |
|
| 18 | WASHER OIL BOLT | 90545300000 |
|
| 19 | CIRCLIP | 90651MA5671 |
|
| 20 | SCREW FLAT, 4X12 | 93600040121G |
|
| 21 | NUT,CAP 6MM | 94021060700S |
|
| 22 | NUT,FLANGE 6MM | 9405006000 |
|
| 23 | BOLT,FLANGE 6X35 | 960010603507 | - |
