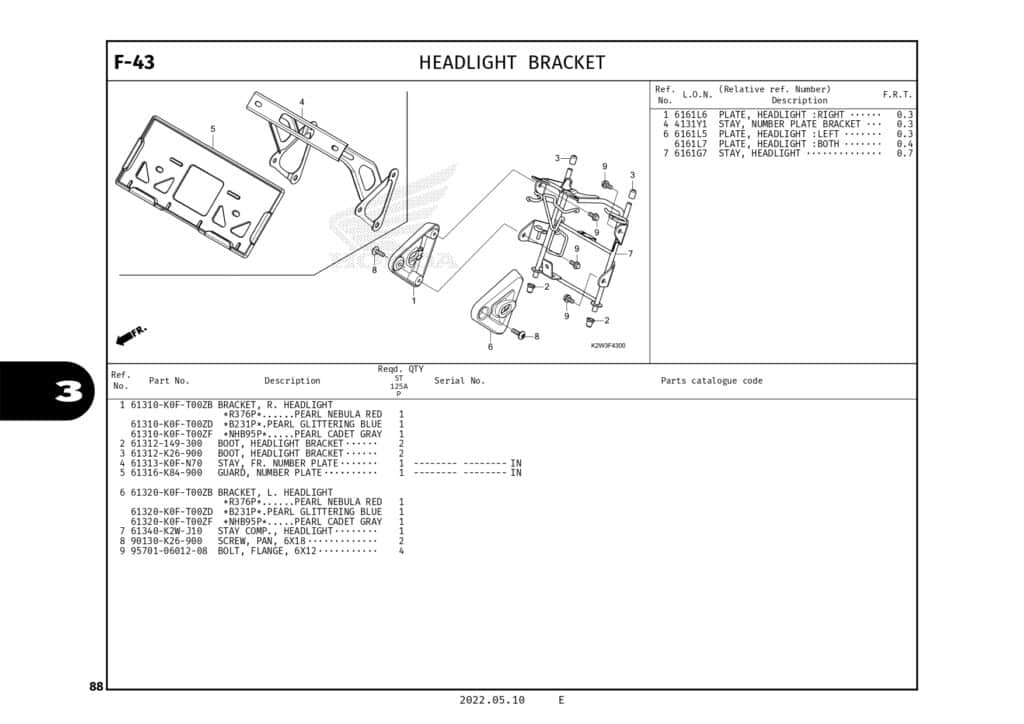

F-43 Headlight Bracket – Katalog Suku Cadang Honda ST 125 DAX
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
BRACKET, R. HEADLIGHT |
61310K0FT00ZB |
-
|
| 1 |
BRKT R HEADLIGHT |
61310K0FT00ZD |
-
|
| 1 |
BRKT R HEADLIGHT |
61310K0FT00ZF |
-
|
| 2 |
BOOT HEADLIGHT |
61312149300 |
|
| 2 |
BOOT, HEADLIGHT BRACKET |
61312K26900 |
-
|
| 3 |
STAY FR NUMBER PL |
61313K0FN70 |
-
|
| 4 |
GUARD NUMBER PLATE |
61316K84900 |
|
| 5 |
BRACKET, L. HEADLIGHT |
61320K0FT00ZB |
-
|
| 5 |
BRKT L HEADLIGHT |
61320K0FT00ZD |
-
|
| 5 |
BRKT L HEADLIGHT |
61320K0FT00ZF |
-
|
| 6 |
STAY COMP HEAD LISE |
61340K2WJ10 |
-
|
| 7 |
SCREW PAN 6X18 |
90130K26900 |
-
|
| 8 |
BOLT FLANGE 6X12 |
957010601208 |
|
