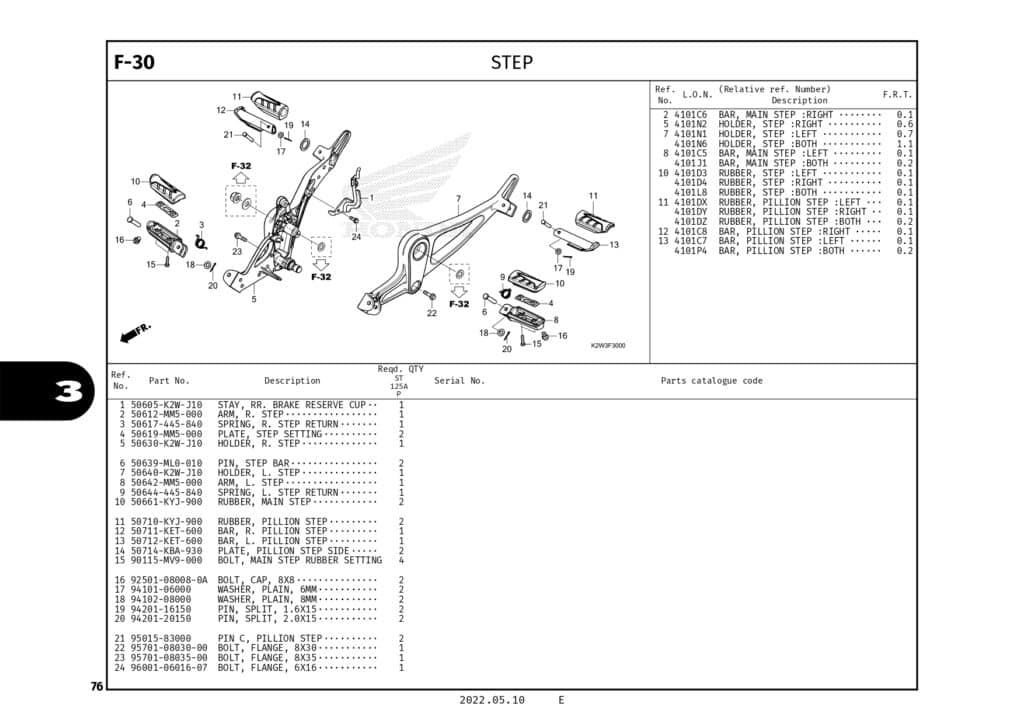

F-30 Step – Katalog Suku Cadang Honda ST 125 DAX

#	Informasi Produk	Visual
1	STAY RR BRK RESER Part Number : `50605K2WJ10`
2	ARM R STEP Part Number : `50612MM5000`
3	SPG.,STEP RETURN Part Number : `50617445840`
4	PLATE STEP SETTING Part Number : `50619MM5000`
5	HOLDER R STEP Part Number : `50630K2WJ10`
6	PIN,STEP BAR Part Number : `50639ML0010`
7	HOLDER L STEP Part Number : `50640K2WJ10`
8	ARM L STEP Part Number : `50642MM5000`
9	SPG,L.STEP RETURN Part Number : `50644445840`
10	RUBBER MAIN STEP Part Number : `50661KYJ900`
11	RUBBER PILLION STEP Part Number : `50710KYJ900`
12	BAR R PILLION STEP Part Number : `50711KET600`
13	BAR L PILLION STEP Part Number : `50712KET600`
14	PLATE PILL.ST. Part Number : `50714KBA930`
15	BOLT,MAIN STEP RUBBER SETTING Part Number : `90115MV9000`
16	BOLT.HEX,CAP 8X8 Part Number : `92501080080A`
17	WASHER PLAIN 6MM Part Number : `9410106000`
18	WASHER,PLAIN 8MM Part Number : `9410208000`
19	PIN COTTER 16X15 Part Number : `9420116150`
20	PIN COTTER 2.0X15 Part Number : `9420120150`
21	PIN C PILL STEP Part Number : `9501583000`
22	BOLT FLANGE 8X30 Part Number : `957010803000`
23	BOLT,FLANGE 8X35 Part Number : `957010803500`
24	BOLT,FLANGE,6X16 Part Number : `960010601607`
