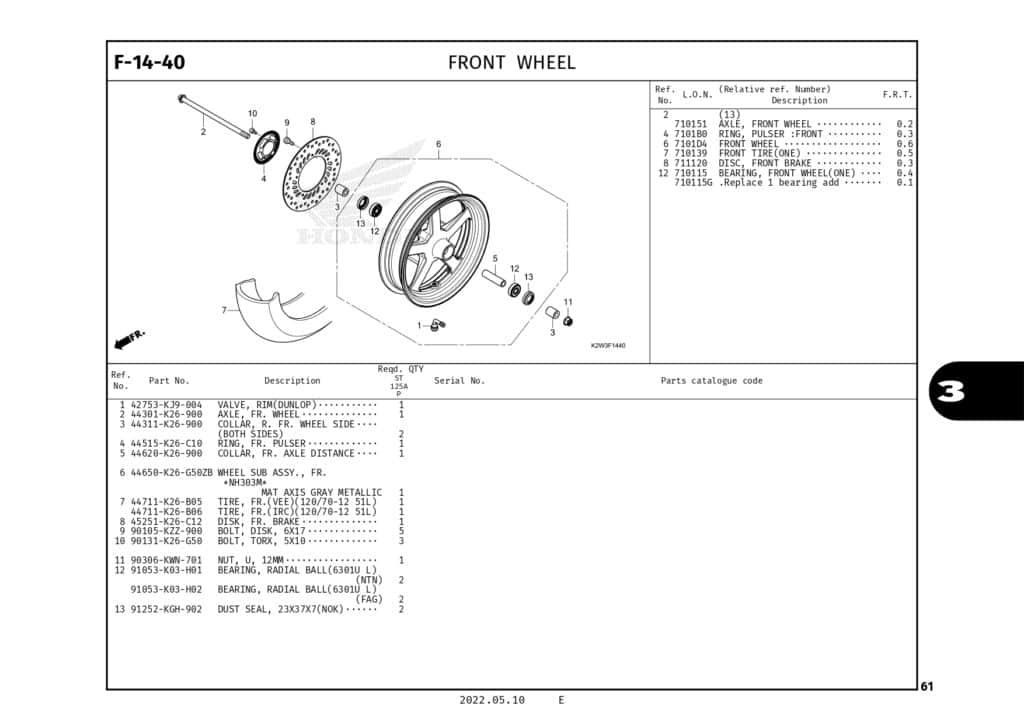

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | VALVE, RIM(DUNLOP) | 42753KJ9004 | - |
| 2 | AXLE FR WHEEL | 44301K26900 | - |
| 3 | COLLAR R FR WHEEL | 44311K26900 | - |
| 4 | RING,FR PULSER | 44515K26C10 |
|
| 5 | COLLAR FR AXLE | 44620K26900 | - |
| 6 | WHEEL SUB ASSY FR | 44650K26G50ZB | - |
| 7 | 44711K26B05 | 44711K26B05 | - |
| 7 | 44711K26B06 | 44711K26B06 | - |
| 8 | DISK FRONT BRAKE | 45251K26C12 | - |
| 9 | BOLT DISK 6X17 R 8X20 | 90105KZZ900 |
|
| 10 | BOLT TORX 5X10 | 90131K26G50 | - |
| 11 | NUT U 12MM | 90306KWN701 | - |
| 12 | BEARING, RADIAL BALL(6301U L) | 91053K03H01 |
|
| 12 | 91053K03H02 | 91053K03H02 | - |
| 13 | DUST SEAL, 23X37X7 | 91252KGH902 |
|
