F-11 Front Fork – Katalog Suku Cadang Honda ST 125 DAX

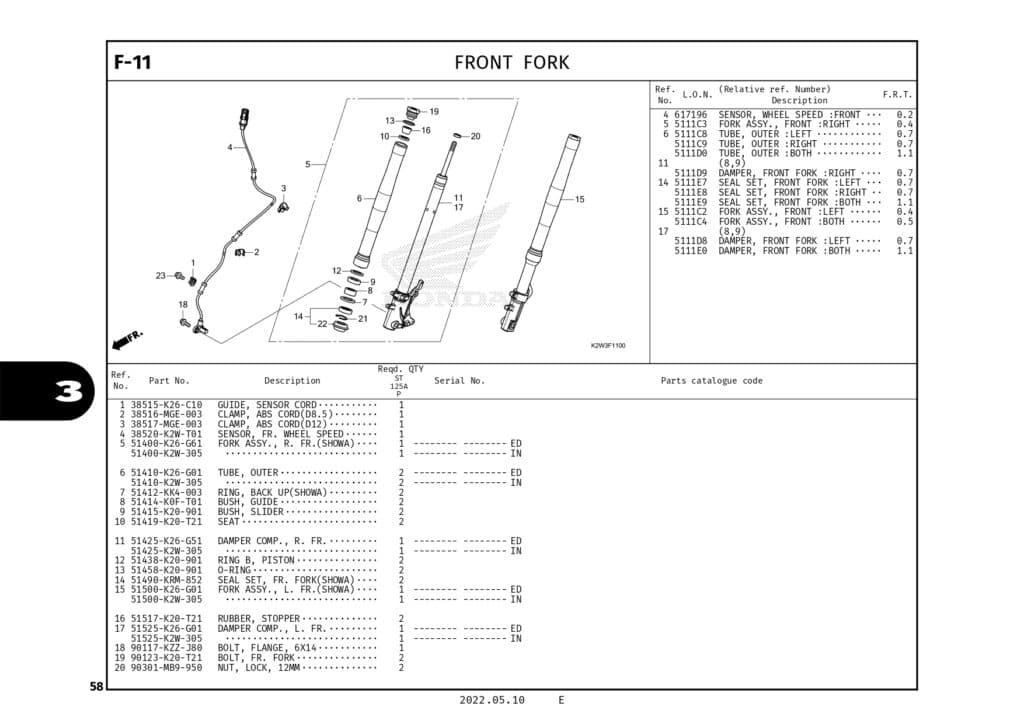

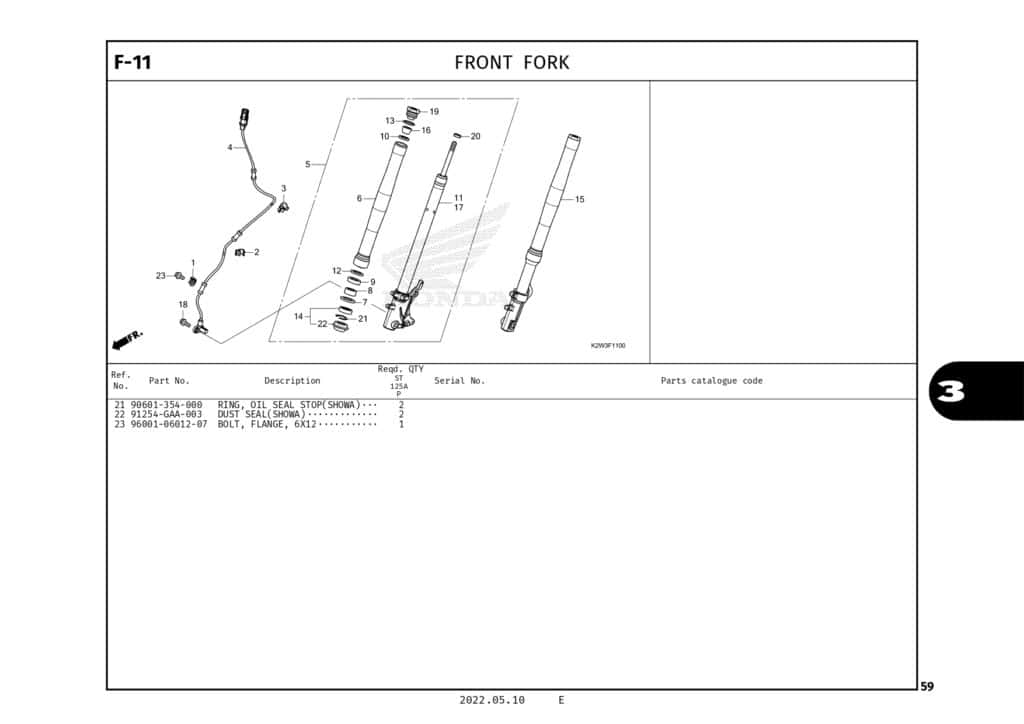

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 GUIDE, SENSOR CORD 38515K26C10 -
2 CLAMP, ABS CORD(D8.5) 38516MGE003 -
3 CLAMP, ABS CORD(12) 38517MGE003 -
4 SENSOR WHEEL SPD 38520K2WT01 -
5 51400K26G61 51400K26G61 -
5 FORK ASSY R FRONT 51400K2W305 -
6 51410K26G01 51410K26G01 -
6 TUBE OUTER 51410K2W305 -
7 RING,BACK UP 51412KK4003 RING,BACK UP
8 BUSH, GUIDE 51414K0FT01 -
9 BUSH, SLIDER 51415K20901 -
10 SEAT 51419K20T21 -
11 51425K26G51 51425K26G51 -
11 DAMPER COMP R FRO 51425K2W305 -
12 RING B, PISTON 51438K20901 -
13 O-RING 51458K20901 -
14 SEAL SET FR FORK 51490KRM852 SEAL SET FR FORK
15 51500K26G01 51500K26G01 -
15 FORK ASSY L FRONT 51500K2W305 -
16 RUBBER, STOPPER 51517K20T21 -
17 51525K26G01 51525K26G01 -
17 DAMPER COMP L FRO 51525K2W305 -
18 BOLT FLANGE SH 6X 90117KZZJ80 -
19 BOLT, FR. FORK 90123K20T21 -
20 NUT, LOCK, 12MM 90301MB9950 -
21 RING,OIL SEALSTOP 90601354000 RING,OIL SEALSTOP
22 DUST SEAL FR FORK 91254GAA003 DUST SEAL FR FORK
23 BOLT FLANGE 6X12 960010601207 BOLT FLANGE 6X12
