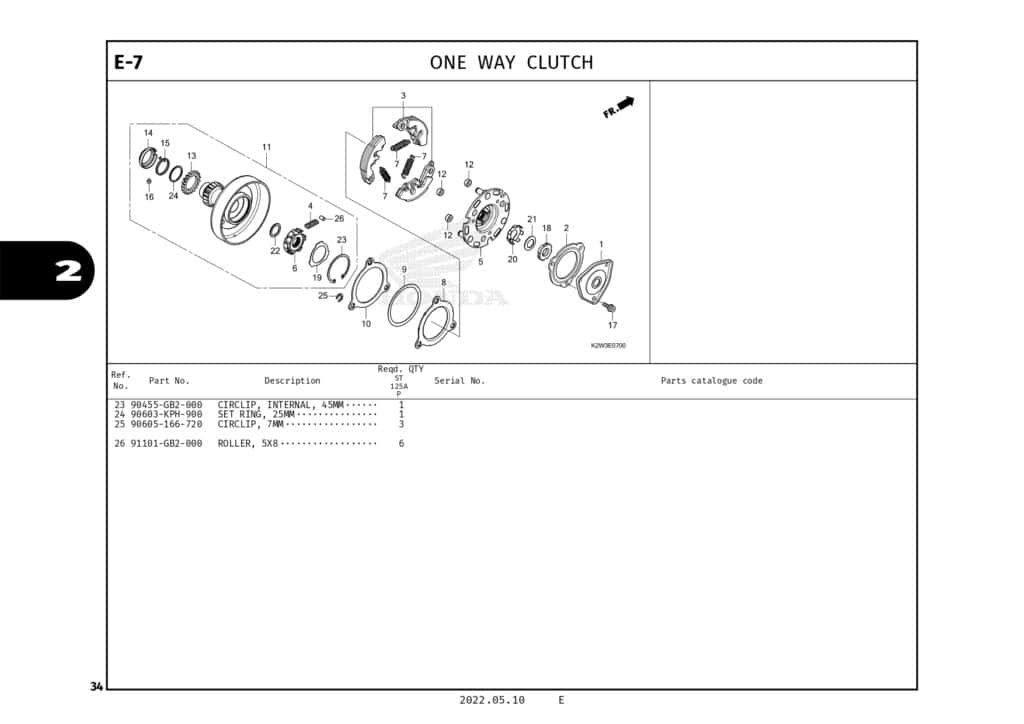

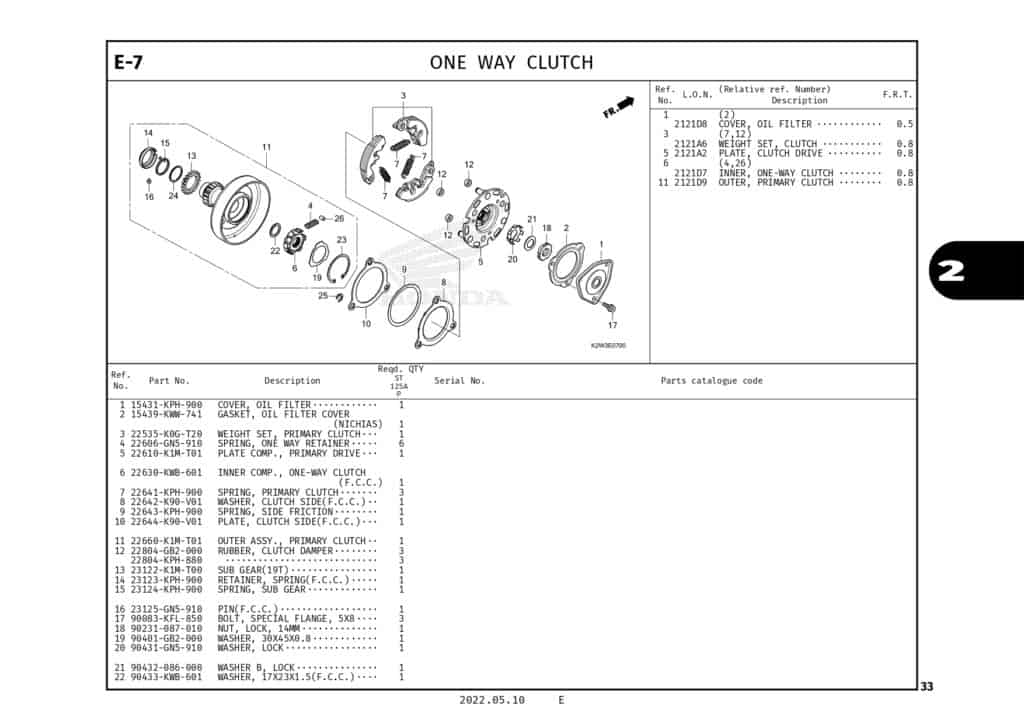

E-7 One Way Clutch – Katalog Suku Cadang Honda ST 125 DAX

#	Informasi Produk	Visual
1	COVER OIL FILTER Part Number : `15431KPH900`
2	GASKET OIL FILTER (NICHIAS) Part Number : `15439KWW741`
3	WEIGHT SET,PRIM C Part Number : `22535K0GT20`
4	SPRING,ONEWAY RET LBL Part Number : `22606GN5910`
5	PLATE COMP PRIMAR Part Number : `22610K1MT01`
6	INNER COMP ONE WAY CLUTCH Part Number : `22630KWB601`
7	SPRING PRIMARY CLUTCH Part Number : `22641KPH900`
8	WASHER CLUTCH SIDE Part Number : `22642K90V01`
9	SPG SIDE FRICTION Part Number : `22643KPH900`
10	PLATE CLUTCH SIDE Part Number : `22644K90V01`
11	OUTER ASSY PRIMAR Part Number : `22660K1MT01`
12	RUBBER CLUTCH DAMPER Part Number : `22804GB2000`
12	RUBBER, CLUTCH DAMPER Part Number : `22804KPH880`
13	GEAR SUB Part Number : `23122K1MT00`
14	RETAINER SPRING (FC) Part Number : `23123KPH900`
15	SPRING SUB GEAR Part Number : `23124KPH900`
16	PIN Part Number : `23125GN5910`
17	BOLT,SPL FLANGE 5X8 Part Number : `90083KFL850`
18	NUT LOCK 14MM Part Number : `90231087010`
19	WASHER,30X45X0,8 Part Number : `90401GB2000`
20	WASHER LOCK Part Number : `90431GN5910`
21	WASHER BLOCK Part Number : `90432086000`
22	WASHER, 17X23X1.5 Part Number : `90433KWB601`
23	CIRCLIP,INT 45 MM Part Number : `90455GB2000`
24	SET RING 25MM Part Number : `90603KPH900`
25	CIRCLIP 7MM Part Number : `90605166720`
26	ROLLER, 5X8 Part Number : `91101GB2000`
