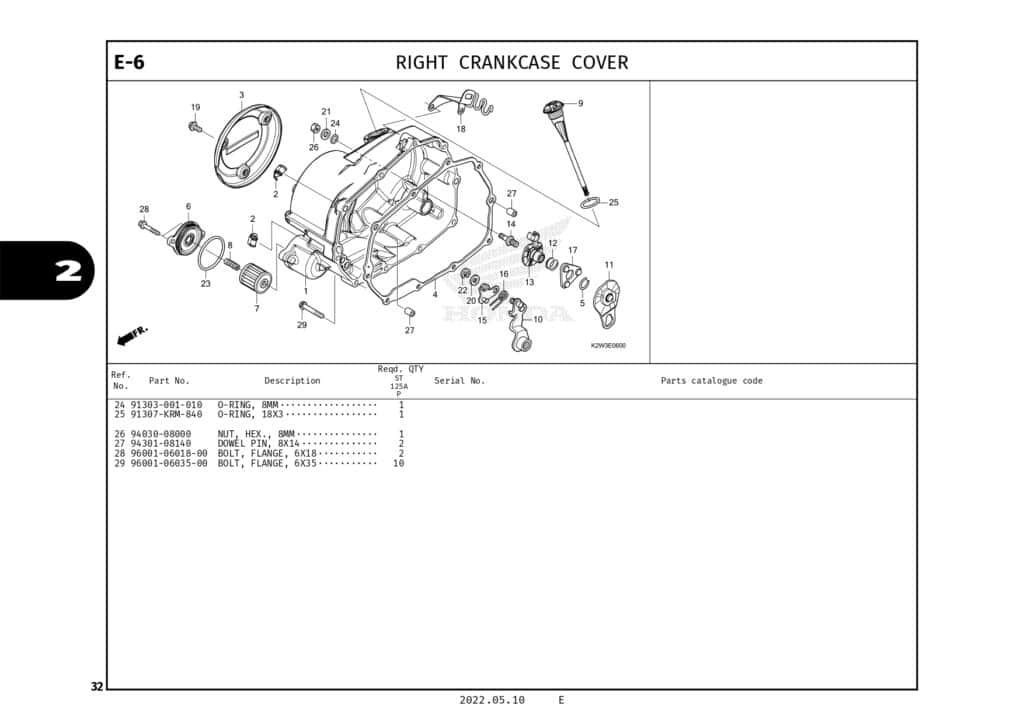

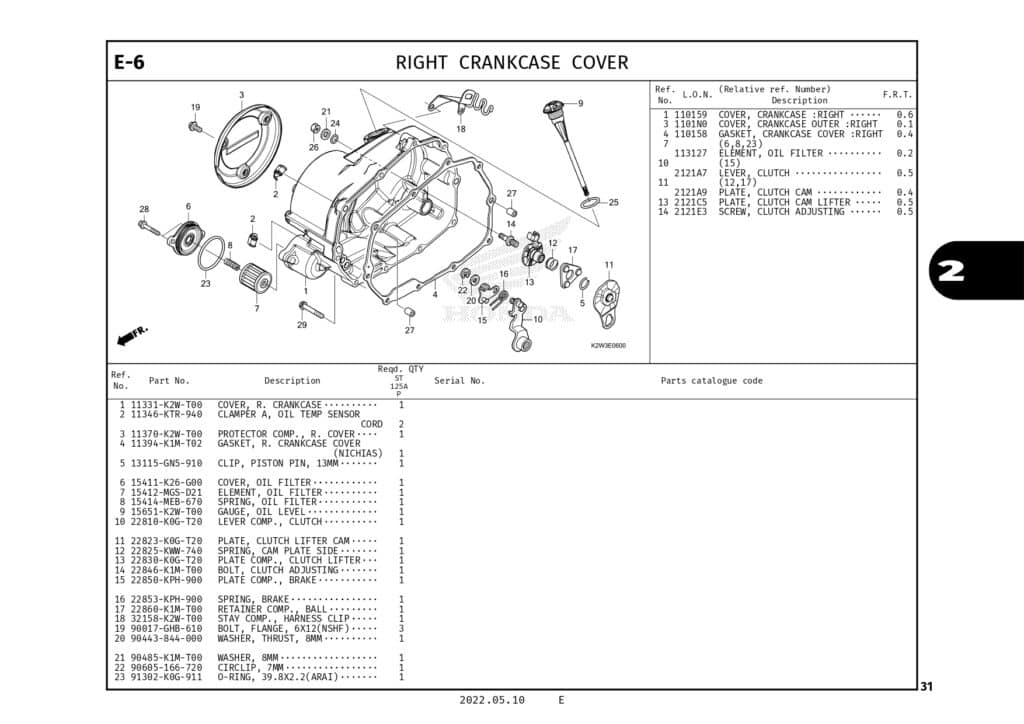

E-6 Right Crankcase Cover – Katalog Suku Cadang Honda ST 125 DAX
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER R CRANKCASE |
11331K2WT00 |
-
|
| 2 |
CLAMPER A OIL TEMP SNSR |
11346KTR940 |
|
| 3 |
PROTECTOR COMP R |
11370K2WT00 |
-
|
| 4 |
GSKT R CRANKCASE |
11394K1MT02 |
-
|
| 5 |
CLIP, PISTON PIN, 13MM |
13115GN5910 |
|
| 6 |
COVER OIL FILTER |
15411K26G00 |
-
|
| 7 |
ELEMENT, OIL FILTER LBL |
15412MGSD21 |
-
|
| 8 |
SPRING, OIL FILTER LBL |
15414MEB670 |
-
|
| 9 |
GAUGE OIL LEVEL |
15651K2WT00 |
-
|
| 10 |
LEVER COMP CLUTCH |
22810K0GT20 |
-
|
| 11 |
PLATE CLUTCH LIFT |
22823K0GT20 |
-
|
| 12 |
SPRING, CAM PLATE |
22825KWB600 |
-
|
| 13 |
PLATE COMP CLUTCH |
22830K0GT20 |
-
|
| 14 |
BOLT CLUTCH ADJUSTER |
22846K1MT00 |
-
|
| 15 |
PLATE COMP, BRAKE |
22850KPH900 |
|
| 16 |
SPG, BRAKE |
22853KPH900 |
|
| 17 |
RETAINER COMP BAL |
22860K1MT00 |
-
|
| 18 |
STAY COMP HARNESS |
32158K2WT00 |
-
|
| 19 |
BOLT FLANGE NSHF |
90017GHB610 |
-
|
| 20 |
WASHER,THRUST 8MM |
90443844000 |
|
| 21 |
WASHER 8MM |
90485K1MT00 |
-
|
| 22 |
CIRCLIP 7MM |
90605166720 |
|
| 23 |
O-RING 39.8X2.2 |
91302K0G911 |
-
|
| 24 |
O-RING 8MM |
91303001010 |
|
| 25 |
O-RING,18X3 |
91307KRM840 |
|
| 26 |
NUT HEX 8MM |
9403008000 |
|
| 27 |
PIN DOWEL 8X14 |
9430108140 |
|
| 28 |
BOLT FLANGE SH 6X18 |
960010601800 |
|
| 29 |
BOLT FLANGE 6X35 |
960010603500 |
|
