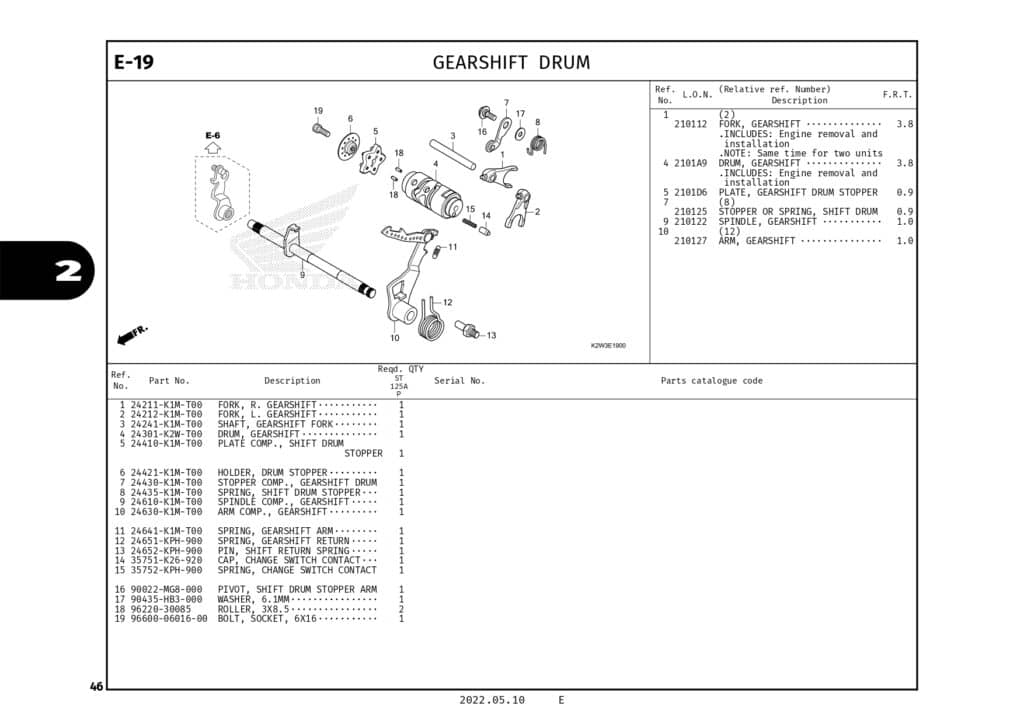

E-19 Gearshift Drum – Katalog Suku Cadang Honda ST 125 DAX

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 FORK R GEAR SHIFT 24211K1MT00 -
2 FORK L GEAR SHIFT 24212K1MT00 -
3 SHAFT GEAR SHIFT FORK 24241K1MT00 -
4 DRUM GEAR SHIFT 24301K2WT00 -
5 PLATE COMP SHIFT 24410K1MT00 -
6 HOLDER DRUM STOPP 24421K1MT00 -
7 STOPPER COMP GEAR 24430K1MT00 -
8 SPG SHIFT DRUM ST 24435K1MT00 -
9 SPINDLE COMP GEAR 24610K1MT00 -
10 ARM COMP GEAR SHI 24630K1MT00 -
11 SPG GEAR SHIFT AR 24641K1MT00 -
12 SPRING GEAR SHIFT RETURN 24651KPH900 SPRING GEAR SHIFT RETURN
13 PIN SHIFT RETURN SPRING 24652KPH900 PIN SHIFT RETURN SPRING
14 CAP CONTACT CHANG 35751K26920 -
15 SPRINGCONTACTCHANGESW 35752KPH900 SPRINGCONTACTCHANGESW
16 PIVOT,SFT DRUM STOP.ARM 90022MG8000 PIVOT,SFT DRUM STOP.ARM
17 WASHER 6.1MM 90435HB3000 WASHER 6.1MM
18 ROLLER,3X8.5 9622030085 ROLLER,3X8.5
19 BOLT, SOCKET, 6X16 966000601600 BOLT, SOCKET, 6X16
