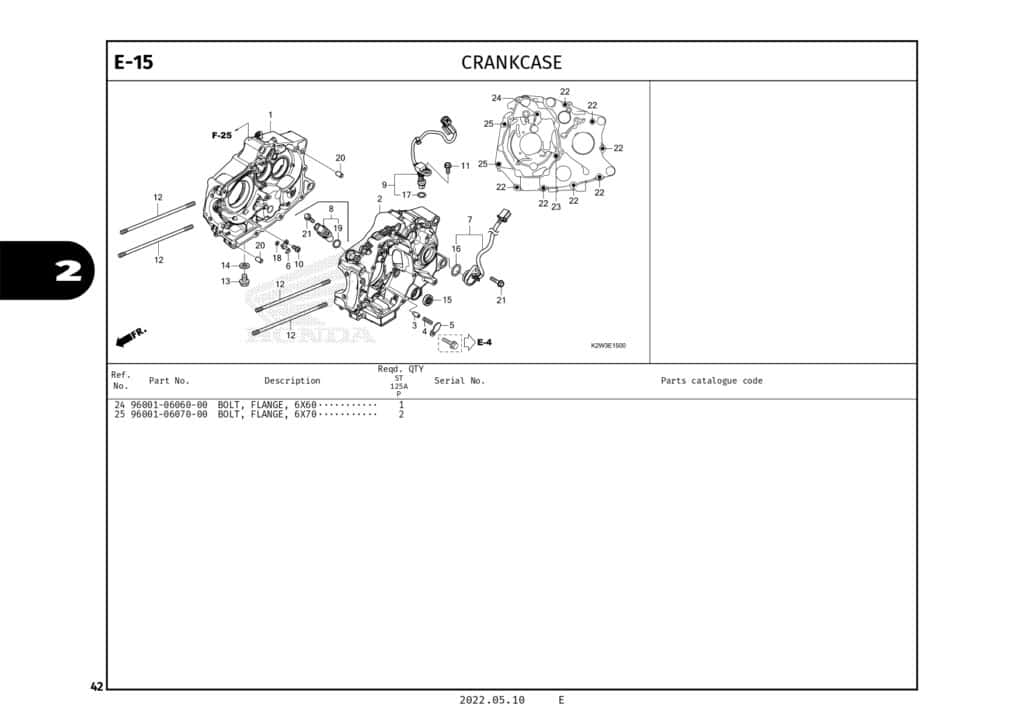

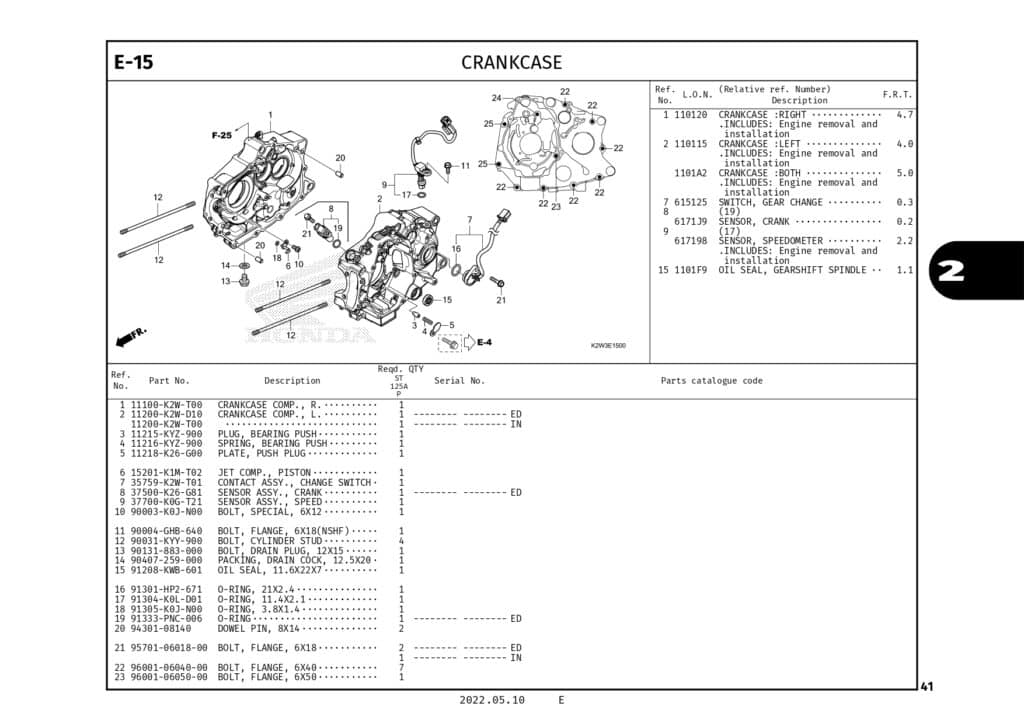

E-15 Crankcase – Katalog Suku Cadang Honda ST 125 DAX

#	Informasi Produk	Visual
1	CRANK CASE COMP R Part Number : `11100K2WT00`
2	11200K2WD10 Part Number : `11200K2WD10`
2	11200K2WD10 Part Number : `11200K2WT00`
3	PLUG BEARING PUSH Part Number : `11215KYZ900`
4	SPRING BEARING PUSH Part Number : `11216KYZ900`
5	PLATE PUSH PLUG Part Number : `11218K26G00`
6	JET COMP PISTON Part Number : `15201K1MT02`
7	CONTACT ASSY CHAN Part Number : `35759K2WT01`
8	37500K26G81 Part Number : `37500K26G81`
9	SENSOR ASSY SPEED Part Number : `37700K0GT21`
10	BOLT,SPL 6X12 Part Number : `90003K0JN00`
11	BOLT FLANGE NSHF 6X18 Part Number : `90004GHB640`
12	BOLT STUD CYLN Part Number : `90031KYY900`
13	BOLT DRAIN PLUG 12X15 Part Number : `90131883000`
14	PACKING COCK Part Number : `90407259000`
15	OIL SEAL, 11.6X22X7 Part Number : `91208KWB601`
16	O-RING 21X2.4 Part Number : `91301HP2671`
17	O-RING,11.4X2.1 Part Number : `91304K0LD01`
18	O-RING,3.8X1.4 Part Number : `91305K0JN00`
19	O-RING Part Number : `91333PNC006`
20	PIN DOWEL 8X14 Part Number : `9430108140`
21	BOLT FLANGE 6X18 Part Number : `957010601801`
22	BOLT FLANGE 6X40 Part Number : `960010604000`
23	BOLT FLANGE 6X50 Part Number : `960010605000`
24	BOLT FLANGE SH 6X60 Part Number : `960010606001`
25	BOLT FLANGE 6X70 Part Number : `960010607000`
