E-10 Left Crankcase Cover – Katalog Suku Cadang Honda ST 125 DAX
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER LEFT CRANK |
11341K26G00 |
-
|
| 2 |
CLAMPER A OIL TEMP SNSR |
11346KTR940 |
|
| 3 |
COVER COMP L REAR |
11360K26G00 |
-
|
| 4 |
GSKT L CRANKCASE |
11395K1MT02 |
-
|
| 5 |
STAY HARNESS CLIP |
32157MJMD00 |
-
|
| 6 |
35711K26G10 |
35711K26G10 |
-
|
| 7 |
CAP 14MM |
90084KWA930 |
-
|
| 8 |
CAP 30MM |
90087KTRA00 |
-
|
| 9 |
O-RING 13.8X2.5 |
91308KVRC00 |
|
| 10 |
O-RING 30MM |
91356KWV000 |
|
| 11 |

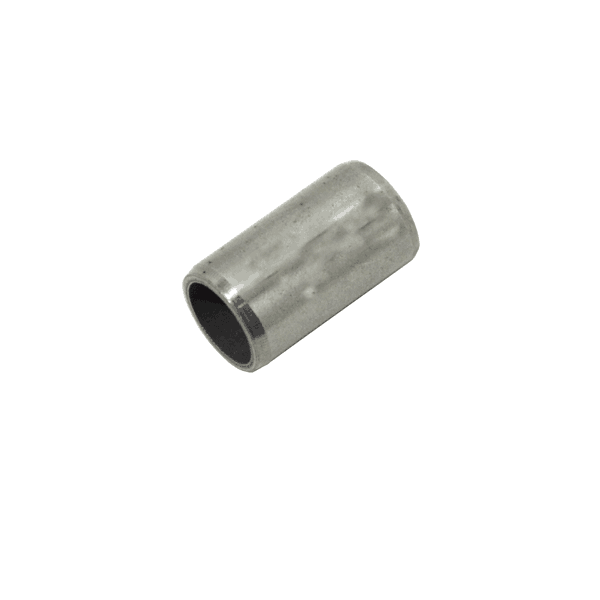

PIN DOWEL 8X14 |
9430108140 |
|
| 12 |
BOLT FLANGE 6X25 |
960010602500 |
|
| 13 |
BOLT FLANGE 6X35 |
960010603500 |
|
