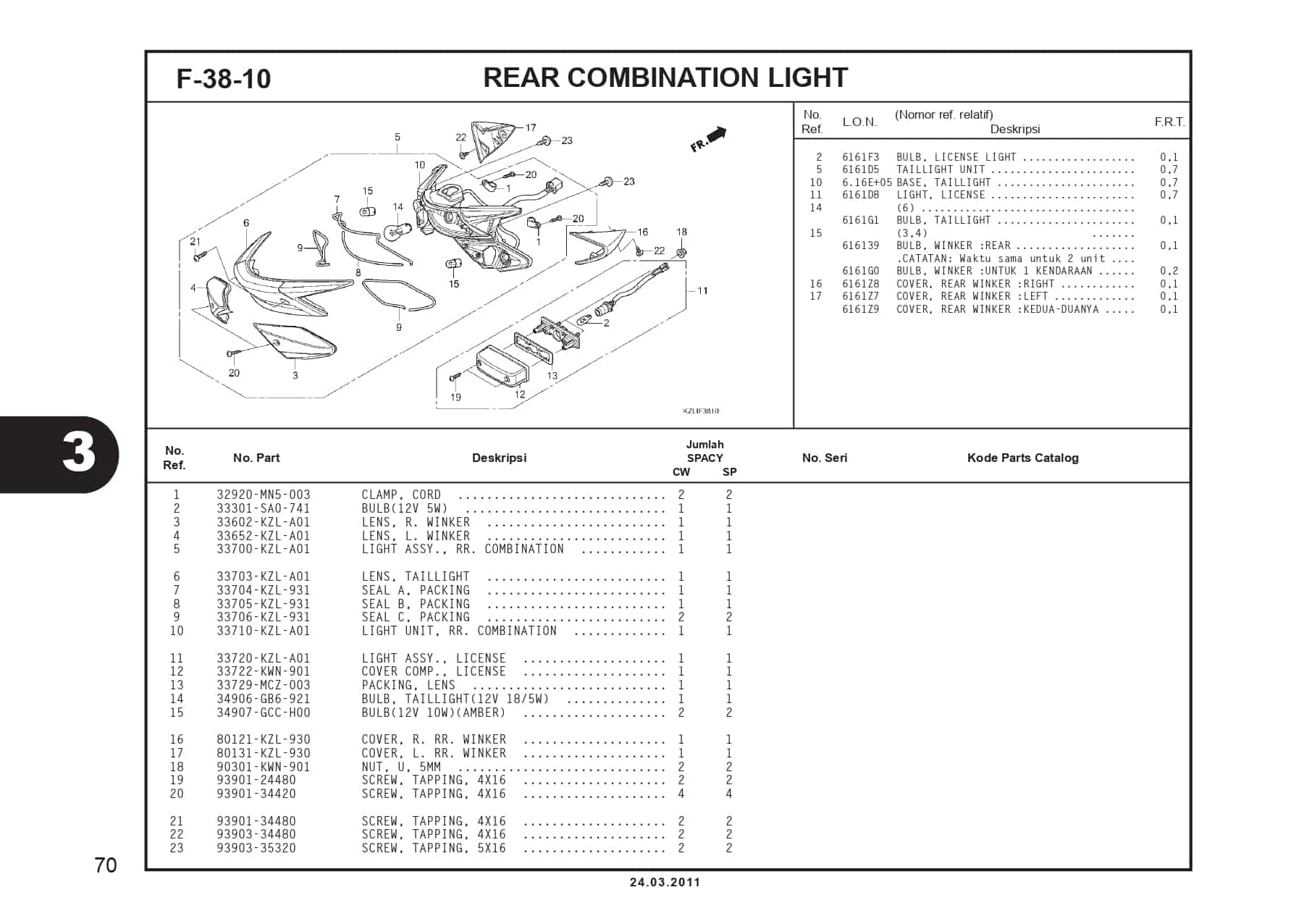

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CLAMP CORD | 32920MN5003 |
|
| 2 | BULB (12V5W) | 33301SA0741 |
|
| 3 | LENS WINKER R | 33602KZLA01 |
|
| 4 | LENS WINKER L | 33652KZLA01 |
|
| 5 | LIGHT ASSY RR COMB | 33700KZLA01 |
|
| 6 | LENS TAILLIGHT | 33703KZLA01 |
|
| 7 | SEAL A PACKING | 33704KZL931 |
|
| 8 | SEAL B PACKING | 33705KZL931 |
|
| 9 | SEAL C PACKING | 33706KZL931 |
|
| 11 | LIGHT ASSY LICENSE | 33720KZLA01 |
|
| 12 | COVER COMP,LICENSE | 33722KWN901 |
|
| 13 | PACKING,LENS | 33729MCZ003 |
|
| 14 | BULB TAILLIGHT | 34906GB6921 |
|
| 15 | BULB (12V 10W) | 34907GCCH00 |
|
| 16 | COVER R RR WINKER | 80121KZL930 | - |
| 17 | COVER L RR WINKER | 80131KZL930 |
|
| 18 | NUT, U, 5MM | 90301KWN901 |
|
| 19 | SCREW,TAPP 4X16 | 9390124480 |
|
| 20 | SCREW TAPPING 4X16 | 9390134420 |
|
| 21 | SCREW,TAP.,4X16 | 9390134480 |
|
| 22 | SCREW TAPPING 4X16 | 9390334480 |
|
| 23 | SCREW TAPPING 5X16 | 9390335320 |
|
