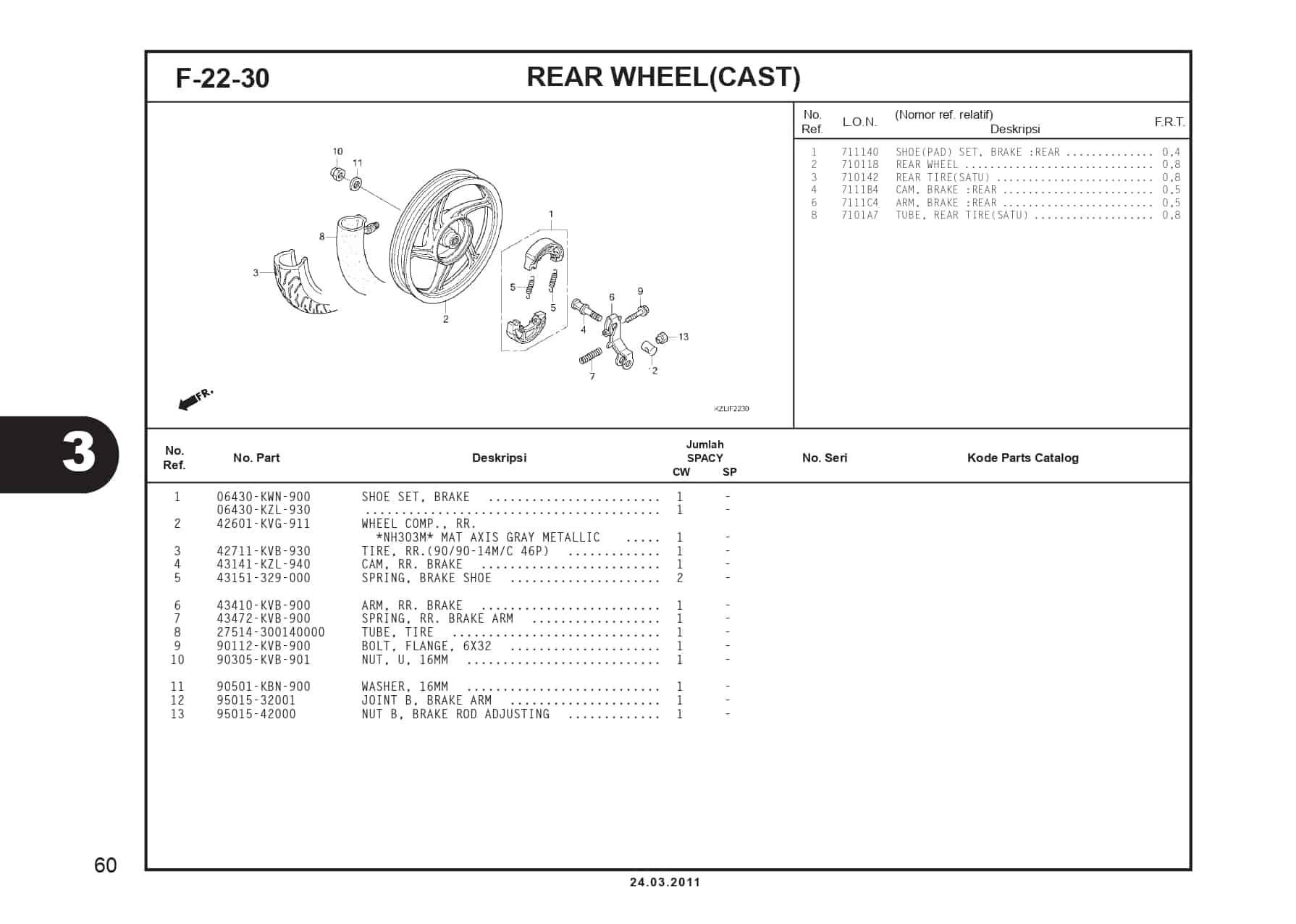

F-22-30 Rear Wheel(CAST) – Katalog Suku Cadang Honda Spacy

#	Informasi Produk	Visual
1	SHOE SET,BRAKE Part Number : `06430KWN900`
1	SHOE SET BRAKE Part Number : `06430KZL930`
1	SHOE SET BRAKE Part Number : `43130KZL930`
2	CAST, WHEEL RR (MA AX GY) Part Number : `42601KVG911`
3	TIRE, RR.(90/90-14M/C 46P) Part Number : `42711KVB931`
4	CAM RR BRAKE Part Number : `43141KZL940`
5	SPRING,BRAKE SHOEREAR Part Number : `43151329000`
6	ARM RR BRAKE Part Number : `43410KVB900`
7	SPRING RR BRAKE ARM Part Number : `43472KVB900`
8	TUBE TIRE (2.75/3.00-14) Part Number : `44712KZT901`
9	BOLT FLANGE 6X32 Part Number : `90112KVB900`
10	NUT U 16MM Part Number : `90305KVB901`
11	WASHER 16MM Part Number : `90501KBN900`
12	JOINT BRAKE ARM Part Number : `9501532001`
13	NUT ADJUST Part Number : `9501542000`
