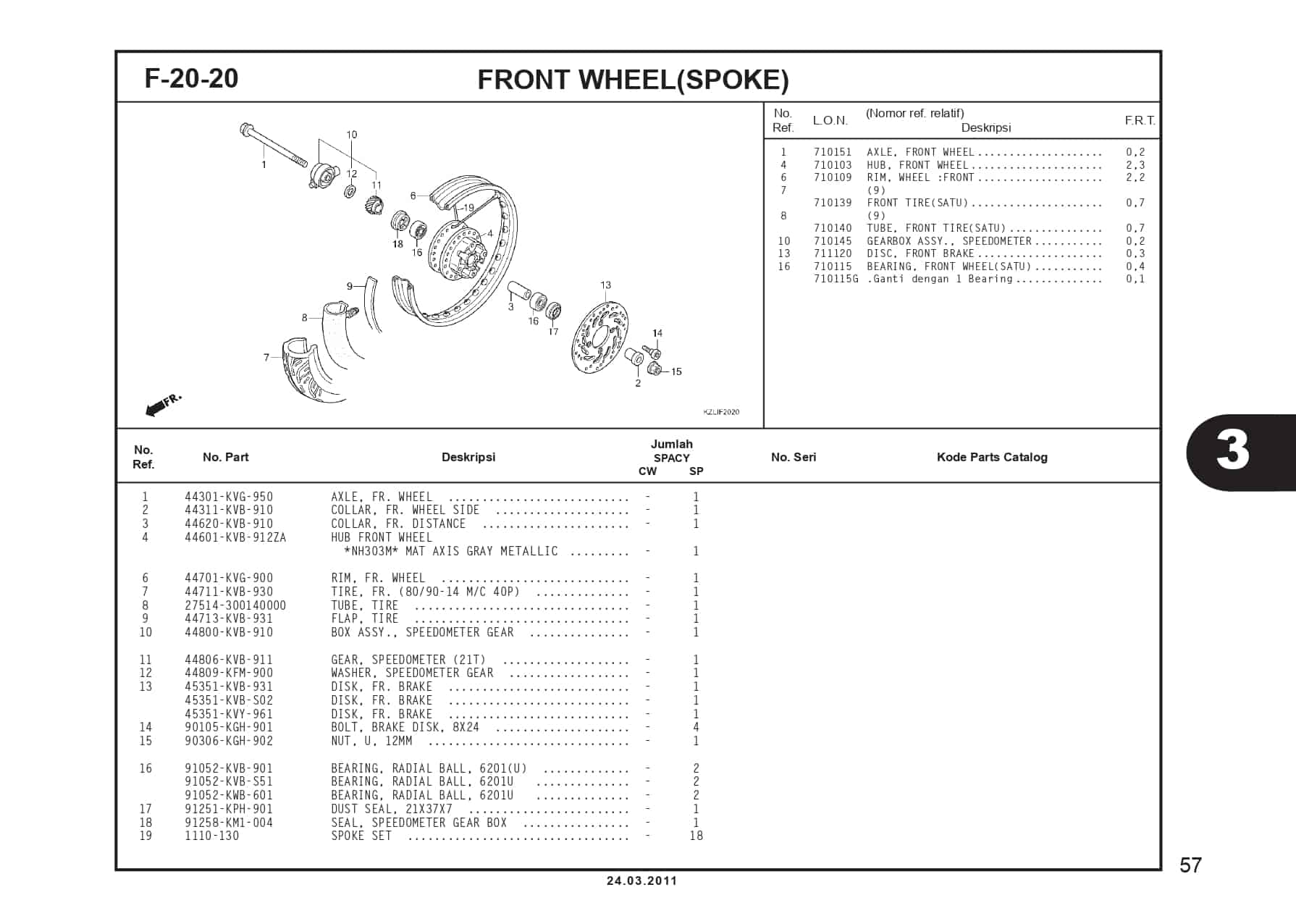

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | AXLE FR WHEEL | 44301KVG950 |
|
| 2 | COLLAR FR WHEEL SIDE | 44311KVB910 |
|
| 3 | COLLAR FR DISTANCE | 44620KVB910 |
|
| 4 | HUB FRONT WHEEL | 44601KVB911 |
|
| 6 | RIM FR WHEEL | 44701KVG900 | - |
| 7 | TIRE, FR. (80/90-14 M/C 40P) | 44711KVB931 |
|
| 8 | TUBE TIRE (2.75/3.00-14) | 44712KZT901 |
|
| 10 | BOX SPEEDOMETER GEAR | 44800KVB910 |
|
| 11 | GEAR SPEEDOMETER | 44806KVB911 | - |
| 12 | WASHER,SPDMT GEAR | 44809KFM900 |
|
| 13 | DISK FR BRAKE | 45351KVB931 |
|
| 13 | DISK FR BRAKE | 45351KVBS02 |
|
| 13 | DISK FR BRAKE | 45351KVY961 |
|
| 15 | NUT, U, 12MM | 90306KGH901 |
|
| 15 | NUT, U, 12MM | 90306KTZD01 |
|
| 16 | BEARING,RADIAL BALL 6201(U) | ALF6201RS |
|
| 16 | BEARING,RADIAL BALL 6201 | 91052K24904 |
|
| 16 | BEARING,RADIAL BALL 6201 | 91052K03N41 |
|
| 17 | DUST SEAL 21 X 37 X 7 | 91251KPH901 |
|
| 17 | DUST SEAL 21 X 37 X 7 | 91251K35V01 |
|
| 18 | SEAL SPEEDOMETER GEAR BOX | 91258KM1004 |
|
| 19 | SPOKE SET | 1110-130 |
|
