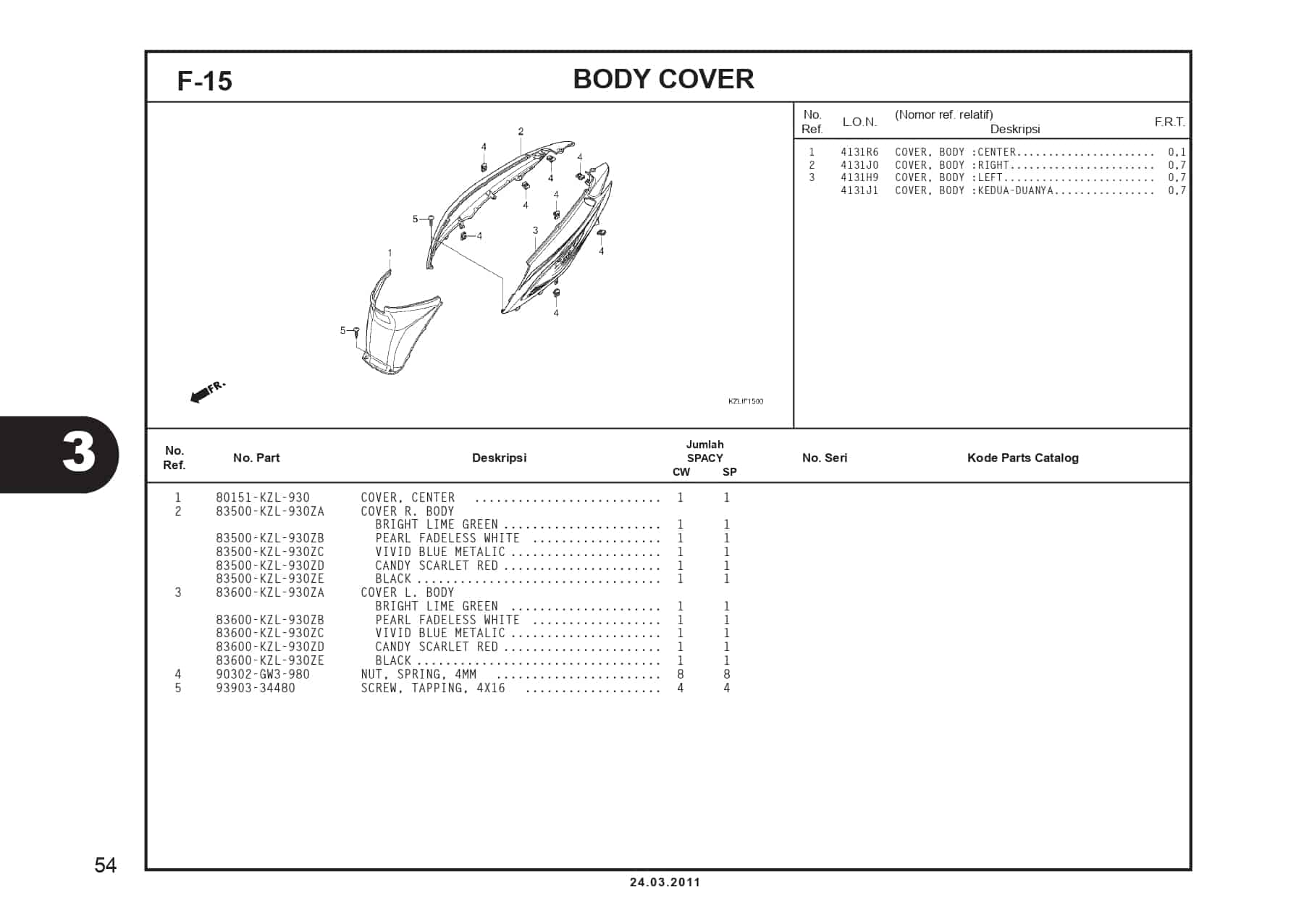

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COVER CENTER | 80151KZL930ZA | - |
| 2 | COVER R BODY (BR LM GR) | 83500KZL930ZA |
|
| 2 | COVER R BODY (PL FD WH) | 83500KZL930ZB |
|
| 2 | COVER R BODY (VD BL MT) | 83500KZL930ZC |
|
| 2 | COVER R BODY (CN SC RD) | 83500KZL930ZD |
|
| 2 | COVER R BODY (BLK) | 83500KZL930ZE |
|
| 3 | COVER, CENTER | 83600KZL930ZA |
|
| 3 | COVER L BODY (PL FD WH) | 83600KZL930ZB |
|
| 3 | COVER L BODY (VD BL MT) | 83600KZL930ZC |
|
| 3 | COVER L BODY (CN SC RD) | 83600KZL930ZD |
|
| 3 | COVER L BODY (BLK) | 83600KZL930ZE |
|
| 4 | NUT SPRING 4MM | 90302GW3980 |
|
| 5 | SCREW TAPPING 4X16 | 9390334480 |
|
