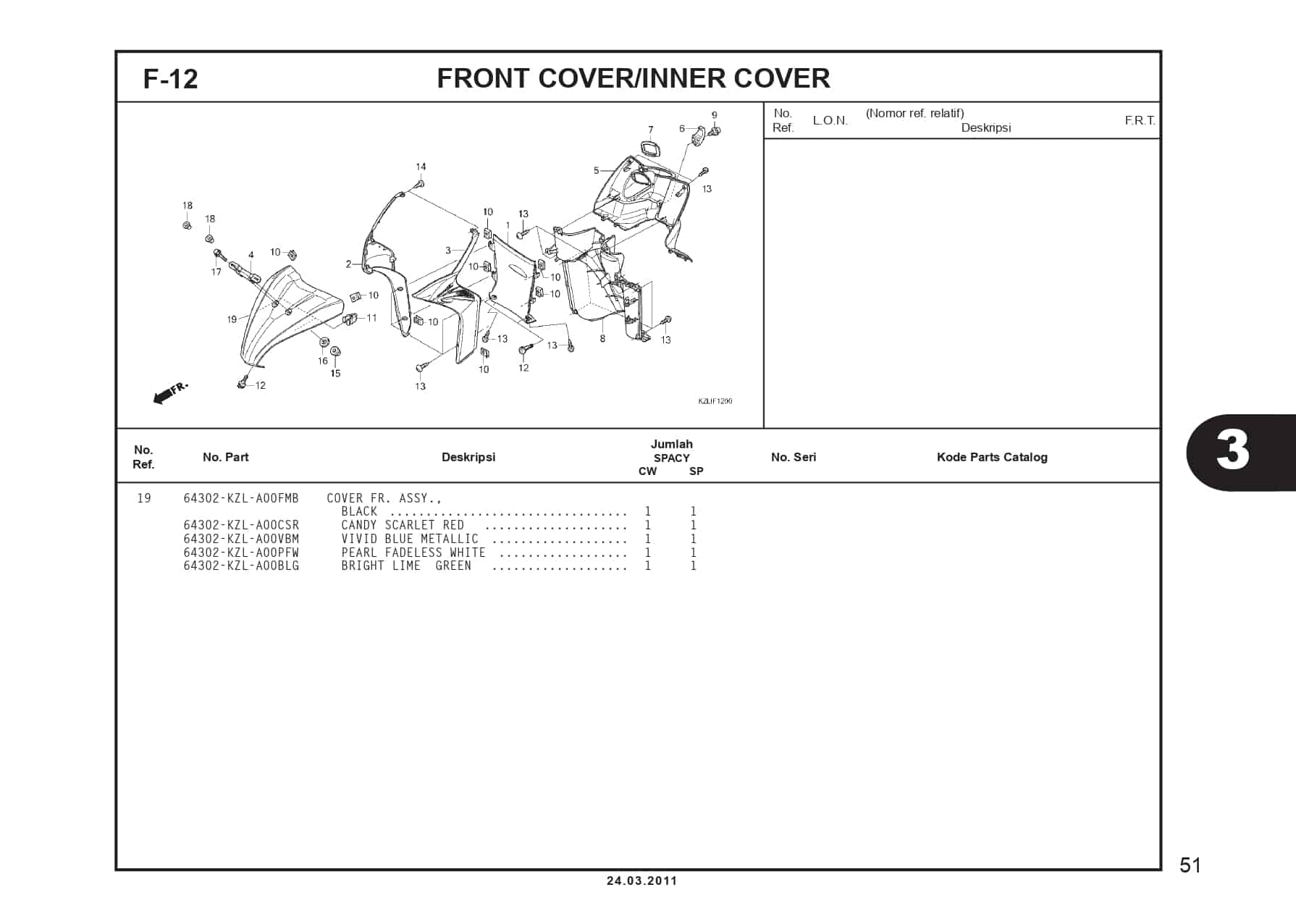

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COVER, FR. LOWER | 64308KZLA00 | - |
| 2 | COVER R. FR. SIDE (BLACK) | 64301KZLA00ZA |
|
| 3 | COVER L.FR.SD(BLK) | 64401KZL930ZD |
|
| 4 | BRACKET FR NUMBER PLATE | 81110KZLA00 |
|
| 5 | COVER, INNER UPPER (BLACK) | 81131KZLA00ZA |
|
| 6 | HOOK, LUGGAGE | 81132GAH000YV |
|
| 7 | COVER COMBINATION SWITCH | 81133KZLA00 |
|
| 8 | COVER, INNER LOWER | 81141KZL930ZA |
|
| 9 | BOLT SPECIAL 6MM | 90107KVB900 |
|
| 10 | NUT SPRING 4MM | 90302GW3980 |
|
| 11 | CLIP SNAP FIT (P0) | 90666SDAA01 |
|
| 12 | CLIP,TRIM | 90683GAZ003 |
|
| 13 | SCREW TAPPING 4X16 | 9390334480 |
|
| 14 | SCREW TAPPING 5X12 | 9390335220 |
|
| 15 | NUT HEX 6MM | 94001060000S |
|
| 16 | WASHER, PLAIN, 6MM | 9410306800 |
|
| 17 | BOLT FLANGE 6X30 | 958010603008 | - |
| 18 | COLLAR MAIN STAND SHAFT | 50504KZL930 |
|
| 19 | COVER FR (BLK) | 64302KZLA00FMB |
|
| 19 | COVER FR (CN SC RD) | 64302KZLA00CSR |
|
| 19 | COVER FR (VD BL MT) | 64302KZLA00VBM |
|
| 19 | COVER FR (PL FD WH) | 64302KZLA00PFW | - |
| 19 | COVER FR (BR LM GR) | 64302KZLA00BLG |
|
