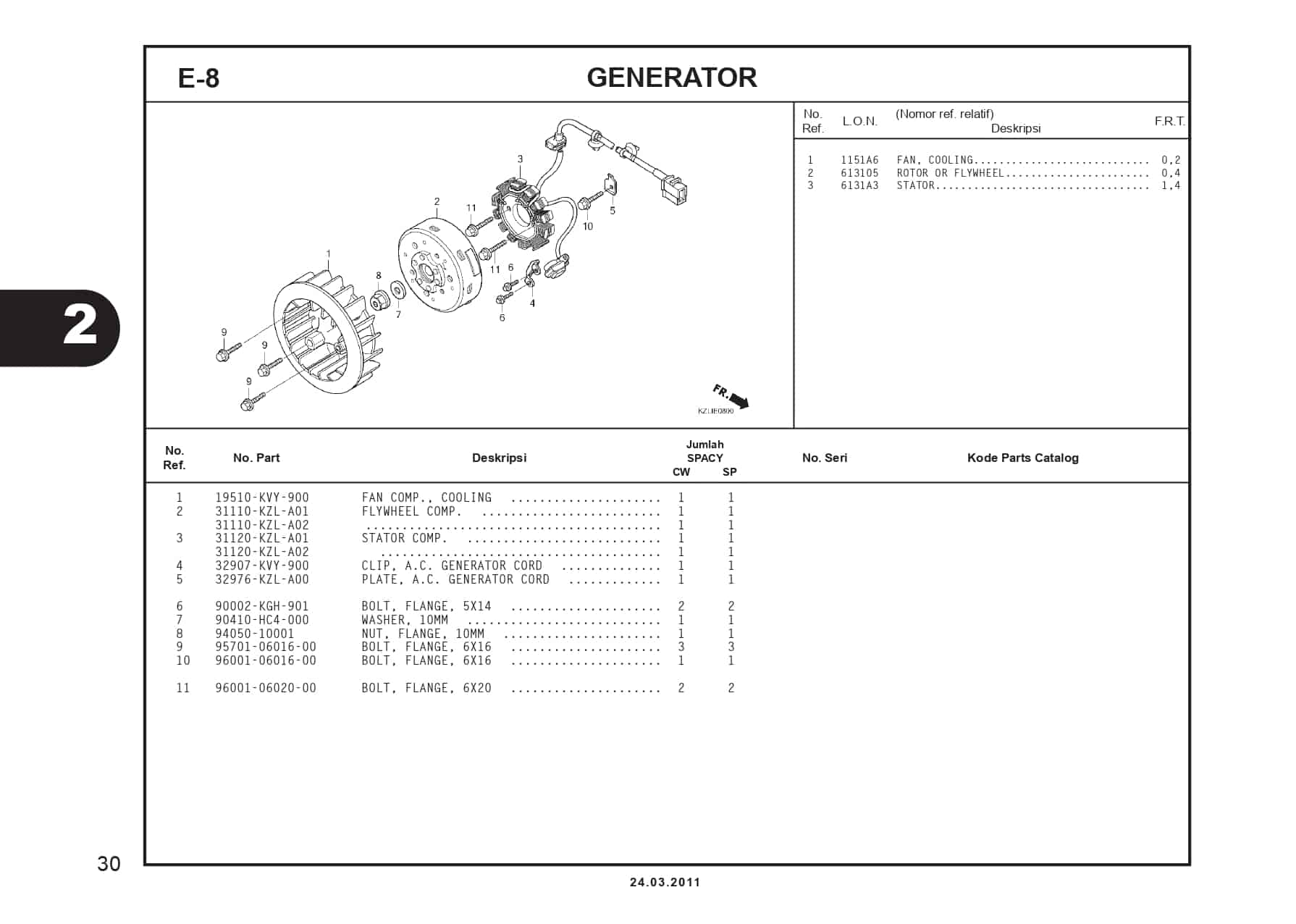

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FAN COMP COOLING | 19510KVY900 |
|
| 1 | FAN COMP COOLING | 19510K44V00 |
|
| 2 | FLYWHEEL COMP | 31110KZLA01 |
|
| 2 | FLYWHEEL COMP (DS) | 31110KZLA02 | - |
| 3 | STATOR COMP | 31120KZLA01 |
|
| 3 | STATOR COMP (DS) | 31120KZLA02 | - |
| 4 | CLIP ACG CORD | 32907KVY900 |
|
| 5 | PLATE ACG CORD | 32976KZLA00 |
|
| 6 | BOLT FLANGE 5X14 | 90002KGH900 |
|
| 7 | WASHER 10MM | 90410HC4000 |
|
| 8 | NUT, FLANGE, 10MM | 9405010000 |
|
| 9 | BOLT, FLANGE, 6X16 | 957010601600 |
|
| 10 | BOLT, FLANGE, 6X16 | 960010601600 |
|
| 11 | BOLT, FLANGE, 6X20 | 960010602000 |
|
