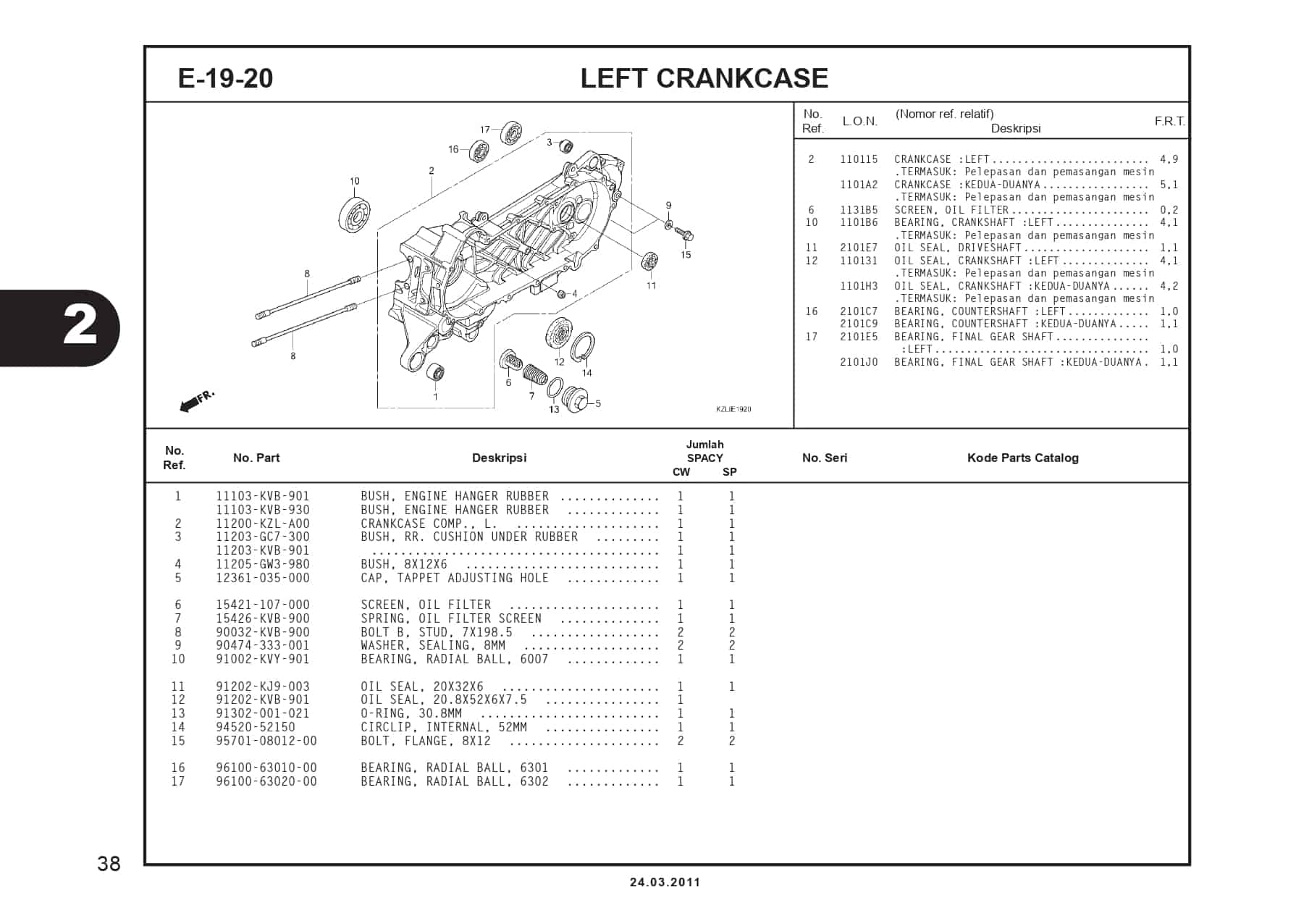

E-19-20 Left Crankcase – Katalog Suku Cadang Honda Spacy

#	Informasi Produk	Visual
1	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
2	CRANKCASE L Part Number : `11200KZLA00`
3	UNDER RUBBER BUSH REAR Part Number : `11203KVB901`
3	UNDER RUBBER BUSH REAR Part Number : `11203K35J01`
4	BUSH, 8X12X6 Part Number : `11205GW3931`
5	CAP, TAPPET ADJUSTING HOLE Part Number : `12361035000`
6	SCREEN, OIL FILTER Part Number : `15421107000`
7	SPRING OIL FILTER SCREEN Part Number : `15426KVB900`
8	BOLT B STUD 7X198.5 Part Number : `90032KVB900`
9	WASHER, SEALING, 8MM Part Number : `90474333000`
10	BRG BALL RADIAL 6007 Part Number : `91002K46N21`
10	BRG BALL RADIAL 6007 Part Number : `91002K44V01`
10	BRG BALL RADIAL 6007 Part Number : `91002K50T01`
10	BRG BALL RADIAL 6007 Part Number : `91002KVY901`
10	BRG BALL RADIAL 6007 Part Number : `91002KZLA01`
11	OIL SEAL 20X32X6 Part Number : `91202KJ9003`
12	OIL SEAL 20.8X52X7.5 Part Number : `91202KVB901`
13	O-RING, 30.8MM Part Number : `91302001020`
14	CIRCLIP, INTERNAL, 52MM Part Number : `9452052150`
15	BOLT, FLANGE, 8X12 Part Number : `957010801200`
16	BEARING, RADIAL BALL, 6301 Part Number : `961006301000`
17	BEARING, RADIAL BALL, 6302 Part Number : `961006302000`
